Cadre

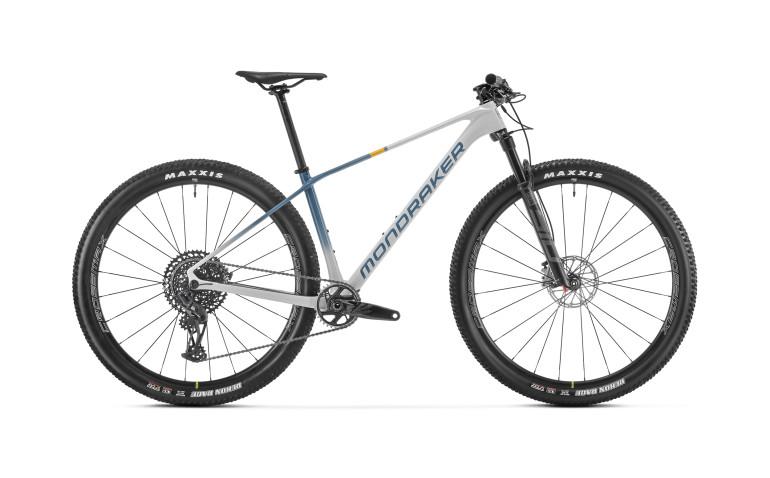

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

Tailles

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Fourche

Rockshox SID SL Base RL 2P Remote 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

Fourche remote

RockShox TwistLoc Base FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock

Jeu de direction

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Potence

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm

Cintre

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Poignées

Onoff Twin, 1lock-on, 135mm

Tige de selle

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Selle

Fizik Antares R9

Frein avant

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Frein arrière

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Levier de frein

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

Jantes

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Rayons

Mavic straight-pull double butted, contactless lacing

Moyeu avant

Mavic, Boost 15x110mm, IS 6 bolts

Moyeu arrière

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

Pneu avant

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Pneu arrière

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Manivelle

Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 54

Plateaux

34T, CNC-machined alloy, X-SYNC 4

Boîtier de pédalier

Sram DUB BSA, sealed bearings, 73mm

Chaîne

Sram NX Eagle, 12s, Powerlock

Dérailleur arrière

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:3

Leviers de changement de vitesse

Sram Trigger GX Eagle, 12s, X-Actuation 1:3

Cassette

Sram XG-1275, 10-50T, 12s

Patte de dérailleur

Sram UDH
