CRAFTY RR SL
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon
CRAFTY RR SL
Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes with two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle. The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.
29"
160 mm
150 mm
Bosch CX-R
600 Wh
Carbon
CRAFTY RR SL
29"
170 mm
150 mm
Bosch CX-R
800 Wh
Carbon
CRAFTY XR
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon
CRAFTY CARBON GULF UNLIMITED
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon

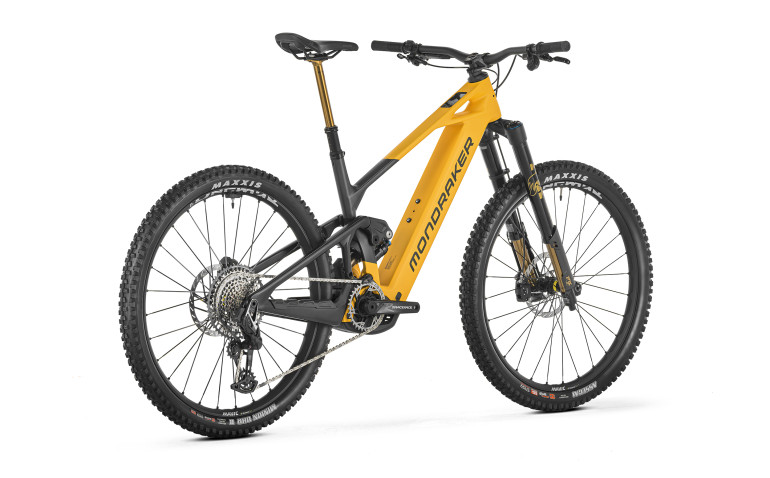

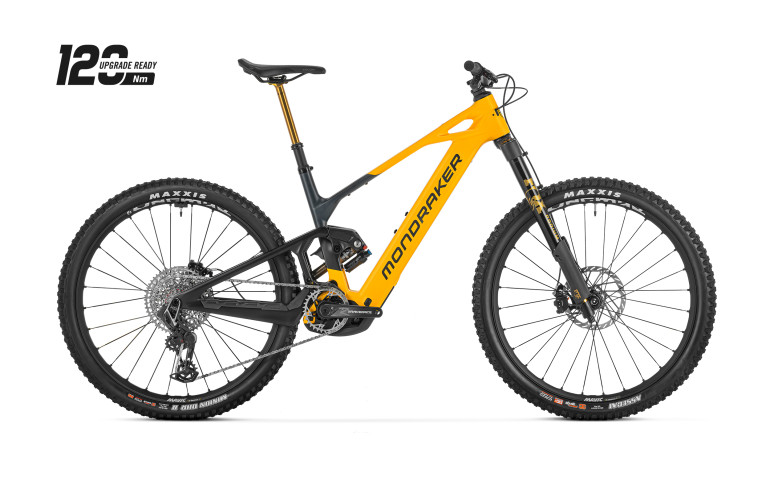

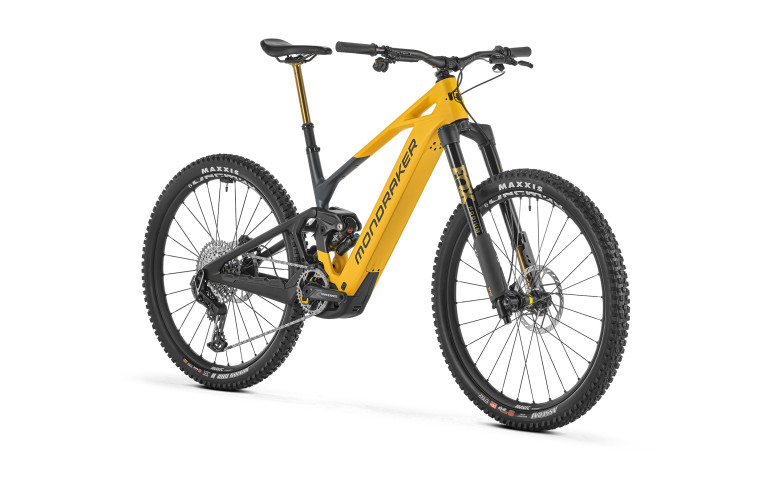

CRAFTY RR S
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon / Alloy
CRAFTY RR
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon / Alloy
CRAFTY R
This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.
The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h
Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries. R and RR models feature the new 800Wh Bosch batteries as original equipment and the more sophisticated RR S, XR and RR SL models are fitted with the lighter 600Wh version. Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics, provide improved efficiency with longer battery range and a much lower weight compared to the previous generation. More kilometres, more fun.
All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube. Weighing in at around 1.5Kg it’s light and easy to carry either on the frame or in a backpack.
The reduced system weight of the motor and 800Wh battery combined results in a 500g weight saving compared to the previous generation Crafty with the 750Wh battery.
The Crafty Carbon R and RR come fitted with the 800Wh battery for greater range, while the RR S, XR and RR SL models come with the 600Wh version to keep the weight down. That said, the batteries are removable (and interchangeable) via a quick-lock system.
Componentes
Cuadro
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm de recorrido, Forward Geometry, batería interna extraíble, eje trasero Boost de 12x148mm, UDH, tubo de dirección conificado, bieleta superior Monobloc de una pieza, sistema de cableado interno HHG, rodamientos sellados MAX, ejes sobredimensionados de 15mm, tapas de motor de plástico exclusivas.
Tallas
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Amortiguador
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Ajustes: compresión de 2 posiciones, compresión a baja velocidad, rebote a baja velocidad, precarga de aire. Anclaje superior Trunnion, casquillos inferiores de 30x8mm
Ajuste del amortiguador
Compresión CS40, rebote RL70, Rezi B40, LML, espaciador de volumen 0,2.
Horquilla
Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tubo de dirección conificado, eje Kabolt Boost de 20x110mm, offset de 44mm. Ajustes: compresión a alta y baja velocidad, rebote a alta y baja velocidad, precarga de aire.
Dirección
Acros custom ZS56/ZS56, 1-1/8", para tubo de dirección de 1,5”, sistema de cableado interno, tapones de sellado con sistema blocklock
Potencia
ONOFF S9 30mm 0º, CNC completo, diámetro de 31,8mm
Manillar
ONOFF S9 1.0 Carbon, rise: 25mm, anchura: 800mm, backsweep de 8º, upsweep de 5º, diámetro de 31,8mm. Talla L y XL: rise de 38mm.
Puños
ONOFF Desert Pro, lock-on CNC, 135mm. L y XL: Mayor grosor.
Tija
Fox Transfer Factory Kashima cableado interno, recorrido ajustable, diámetro de 31,6mm, talla S: 95mm -120mm, talla M: 125mm -150mm, talla ML: 155mm -180mm, talla L: 185mm -210mm, talla XL: 185mm -210mm
Sillin
Ergon SM-10
Freno delantero
Sram Maven Silver, pinza de 4 pistones de 18 y 19,5 milímetros, disco HS2 de 200mm de una pieza IS de 6 tornillos, pastillas sinterizadas de metal con soporte de acero.
Freno trasero
Sram Maven Silver, pinza de 4 pistones de 18 y 19,5 milímetros, disco HS2 de 200mm de una pieza IS de 6 tornillos, pastillas sinterizadas de metal con soporte de acero.
Manetas de freno
Sram Maven Silver, SwingLink y Eje de maneta con casquillos, ajuste de posición de la maneta
Llantas
Mavic E-Deemax S 29, ancho interno de 30mm, llanta soldada Maxtal, PFP, tubeless ready, 28 radios
Radios
Mavic, radios rectos con doble conificado, radiado sin contacto entre radios
Buje delantero
Mavic , Boost 20x110mm, IS de 6 tornillos
Buje trasero
Mavic, Boost de 12x148mm, sistema Ratchet ID360, IS de 6 tornillos, Núcleo XD
Neumático delantero
Maxxis Assegai 29x2,5WT; tubeless ready, compuesto 3C Maxx Grip, carcasa EXO+, 60TPI, aro plegable
Neumático trasero
Maxxis Minion DHR II 29x2,5 WT; tubeless ready, compuesto 3C MaxxTerra, DD Protection, 2x120TPI, aro plegable
Bielas
Race Face Aeffect-R ebike, 160mm
Platos
Sram XX Eagle 34 dientes T-Type, direct mount, acero, CL55
Cadena
Sram GX EagleT-Type, 12v, Powerlock
Cambio - trasero
Sram X0 Eagle AXS, T-Type, 12v
Mandos - pulsadores de cambio
Sram Eagle AXS Pod MMX, 12v
Piñones
Sram XS-1275 10-52 dientes, T-Type, 12v
Peso sin pedales
23,9 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Bateria
Bosch Powertube 800Wh
Esta tabla de tallas es solo una estimación. El tamaño óptimo del cuadro depende también de su estilo personal de montar.
As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.
A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.
|
Frame size
|
S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Longitud tubo sillín | 380 mm 14.96" | 410 mm 16.14" | 435 mm 17.13" | 460 mm 18.11" | 490 mm 19.29" |
| B | Longitud tubo superior | 581 mm/582 mm 22.87" | 596 mm/597 mm 23.46" | 618 mm/619 mm 24.33" | 640 mm/641 mm 25.20" | 662 mm/663 mm 26.06" |
| C | Caída eje pedalier | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" |
| D | Altura eje pedalier | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" |
| E | Longitud vainas | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 465 mm/466 mm 18.31" | 465 mm/466 mm 18.31" |
| F | Ángulo tubo sillín real | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Ángulo tubo sillín efectivo | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Ángulo dirección | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" |
| J | Distancia entre ejes | 1240 mm/1241 mm 48.82" | 1255 mm/1256 mm 49.41" | 1280 mm/1281 mm 50.39" | 1314 mm/1315 mm 51.73" | 1338 mm/1339 mm 52.68" |
| K | Longitud pipa | 120 mm 4.72" | 120 mm 4.72" | 130 mm 5.12" | 140 mm 5.51" | 150 mm 5.91" |
| L | Reach | 445 mm/441 mm 17.52" | 460 mm/456 mm 18.11" | 480 mm/476 mm 18.90" | 500 mm/496 mm 19.69" | 520 mm/516 mm 20.47" |
| M | Stack | 638 mm/641 mm 25.12" | 638 mm/641 mm 25.12" | 647 mm/650 mm 25.47" | 656 mm/659 mm 25.83" | 665 mm/668 mm 26.18" |
The new design is also one degree slacker than the previous generation of Crafty Carbon, making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
