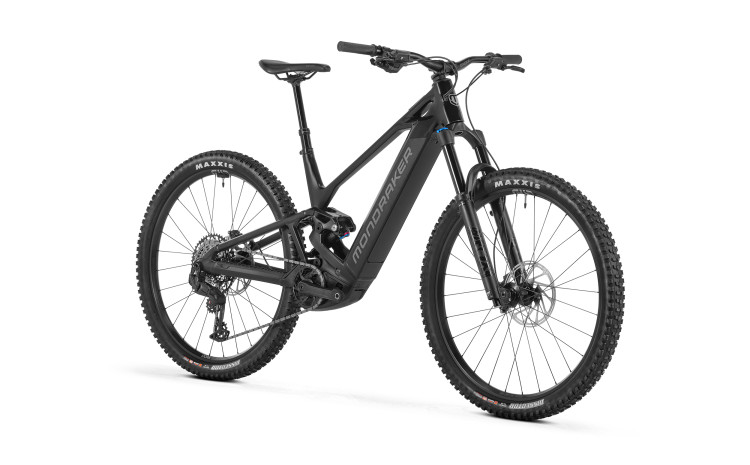

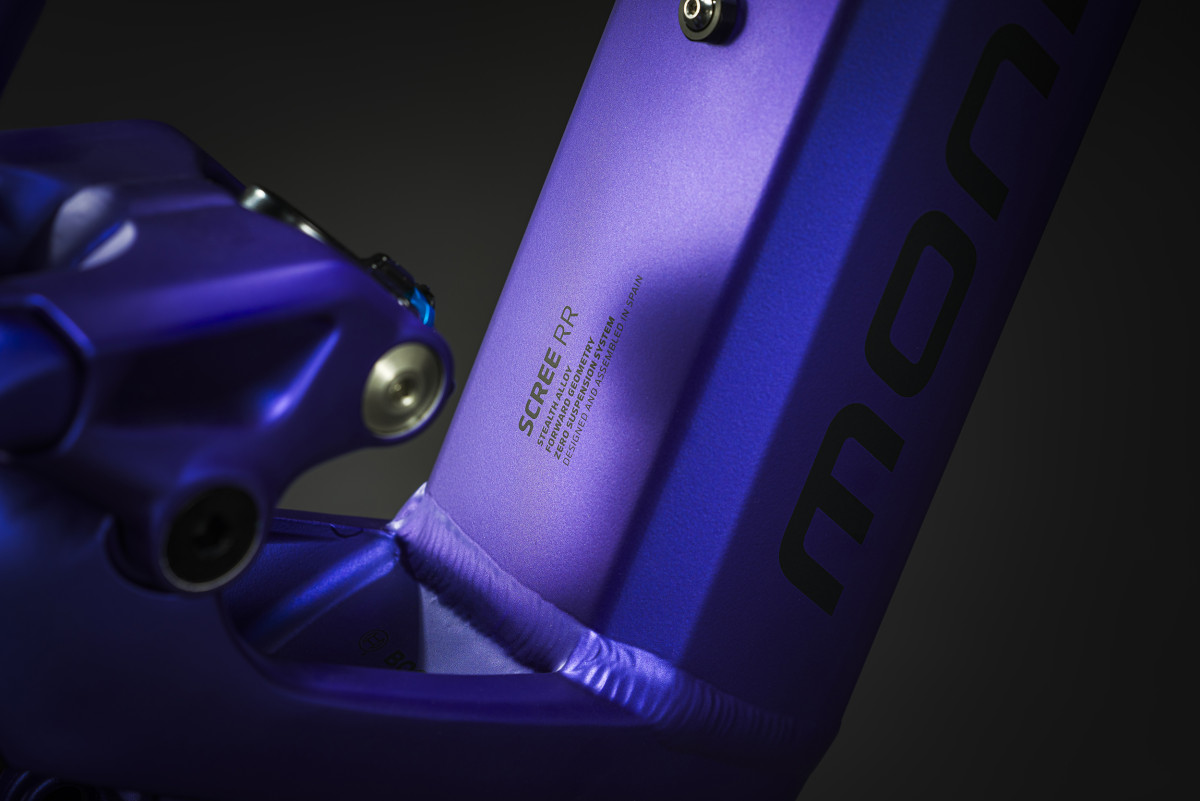

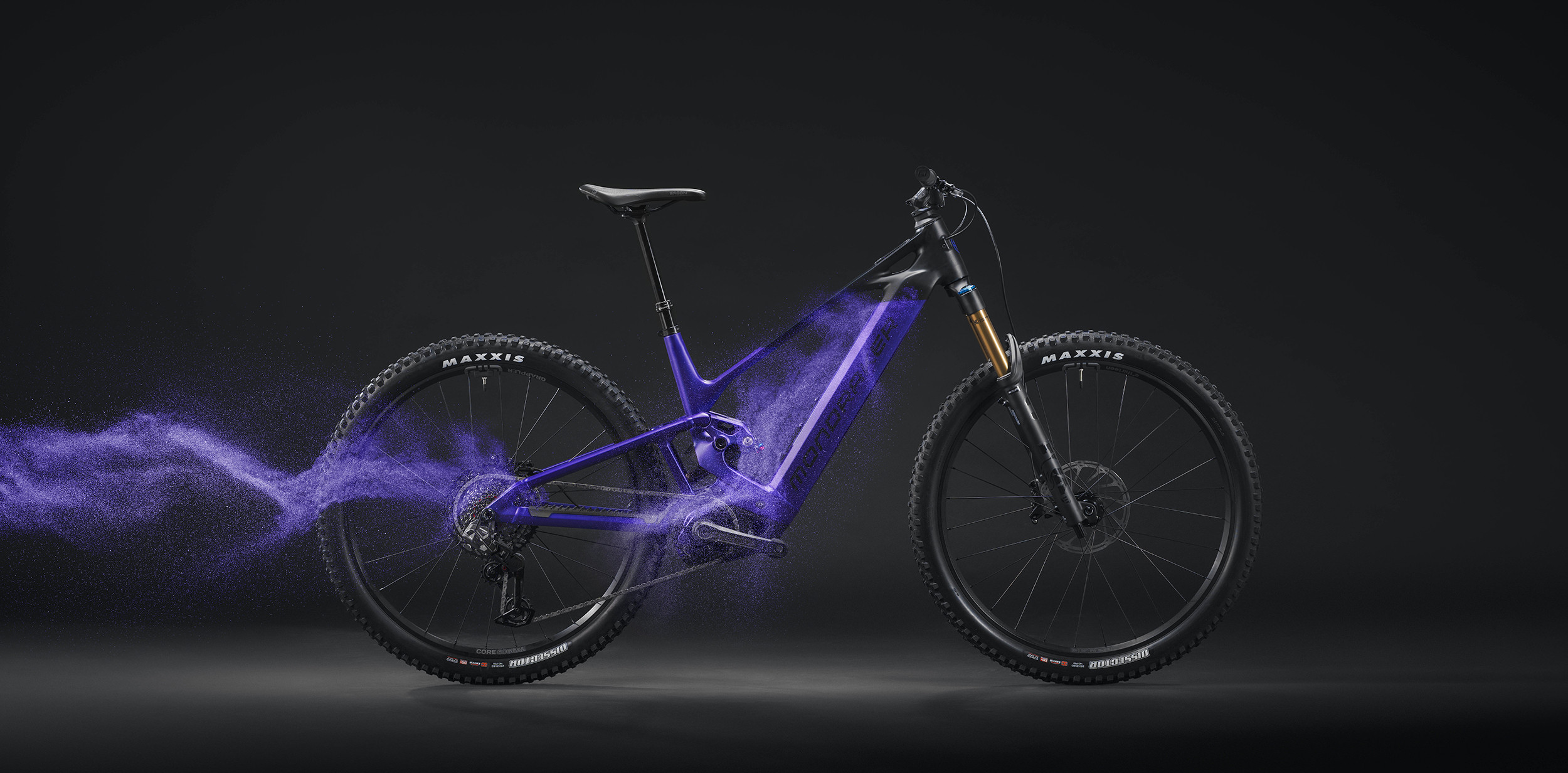

The all-new Scree is a mid-travel E-MTB that delivers everything most E-MTB riders need, whether you’re an enthusiast rider making the jump from MTB or you’re new to riding and looking to join the fun. Key features include: 29” wheels; 130mm rear and 150mm front travel; a 100Nm Bosch CX Gen 5 motor; and a removable, full-size 800Wh Bosch battery – all wrapped in a stunning design inspired by our iconic, high performance Crafty and Level enduro bikes. The Stealth Alloy aluminum frame is built with a low standover height and a low center of gravity, improving handling, confidence and rider comfort on the trail. And with premium finishing details like polished welds and a sleekly integrated Kiox 400 display, Scree looks as good as it rides.
Are you ready to experience the thrill of off-road riding in a whole new way? The Scree has the answer to all your questions – whether you’re starting out on an E-MTB. The most direct route to experiencing, and sharing, the unique sensations of e-mountain biking.

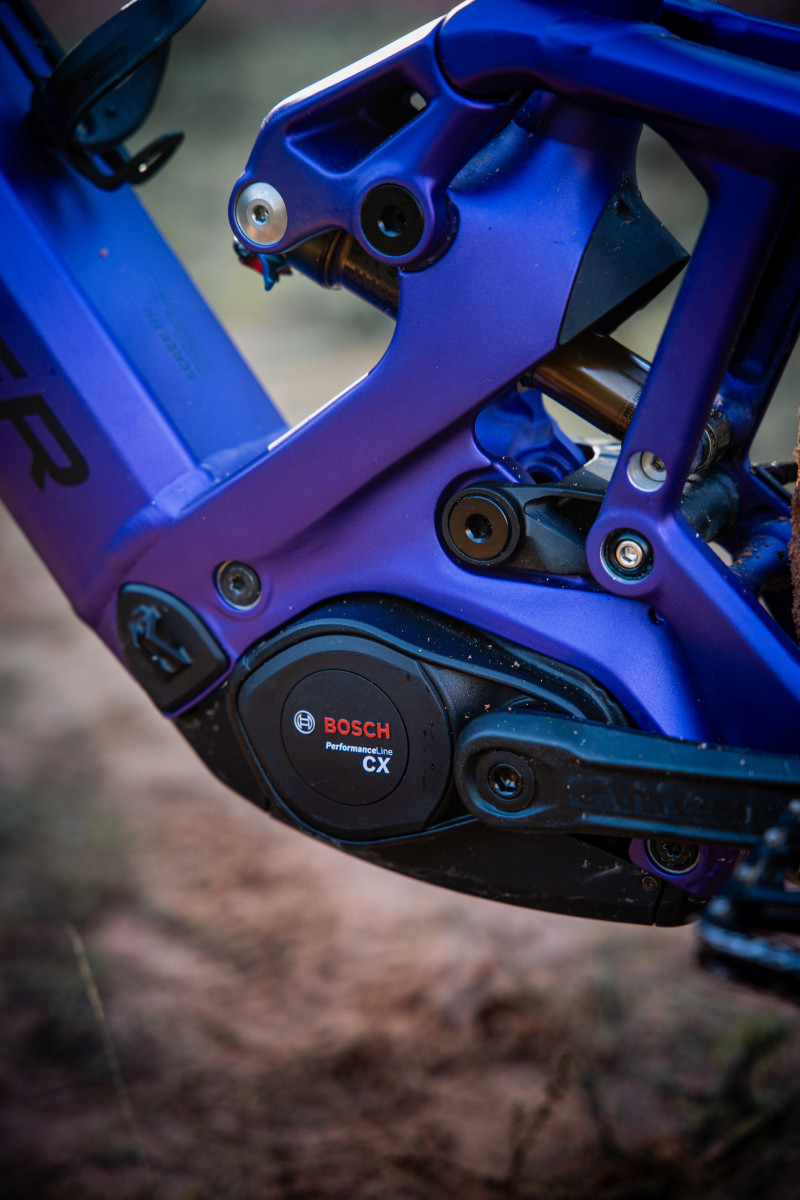

The Bosch CX Gen 5 motor invites you to go further with confidence. No worrying about the way back home, so you can focus on the trail ahead. With 100Nm of torque and up to 750 W peak power it delivers a reliable, powerful boost when the route demands it.

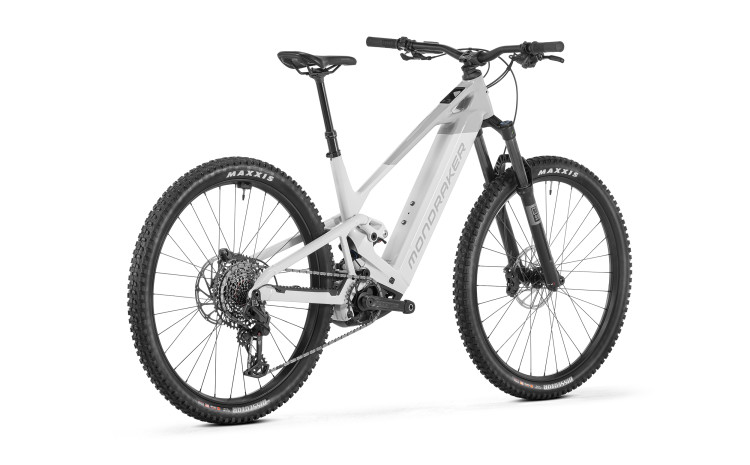

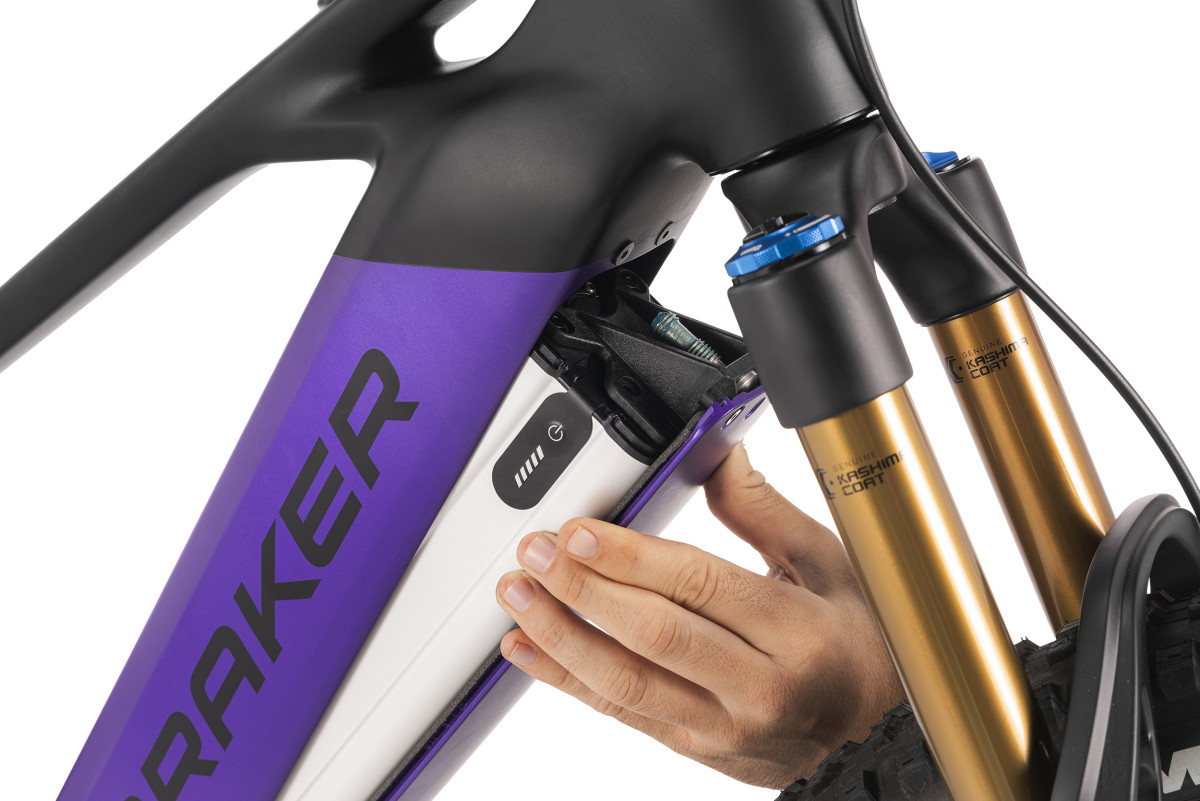

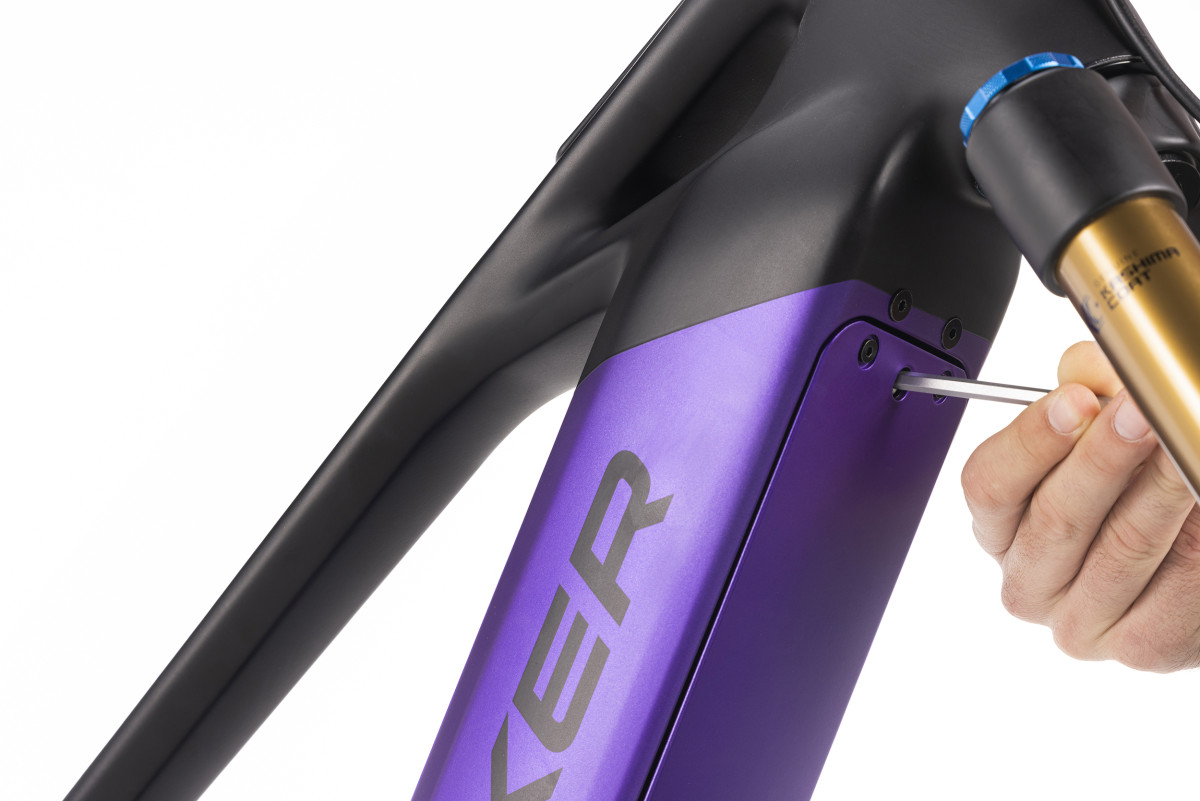

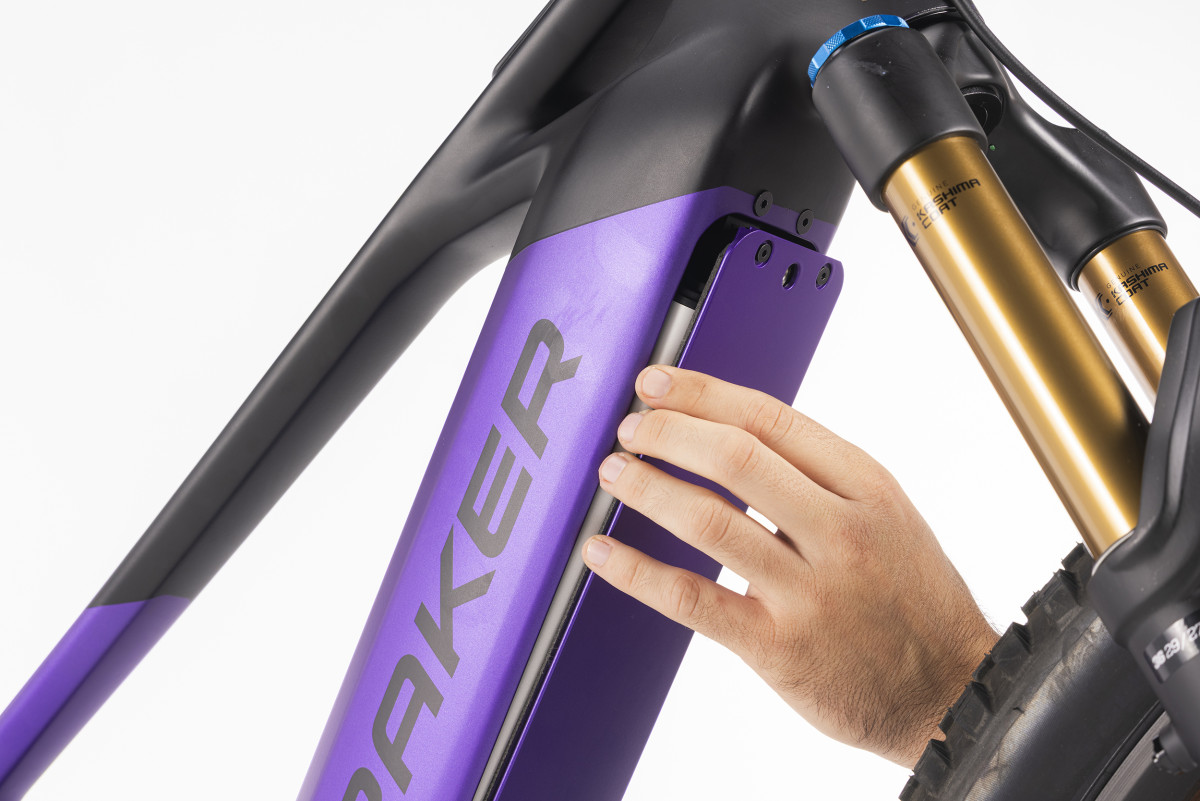

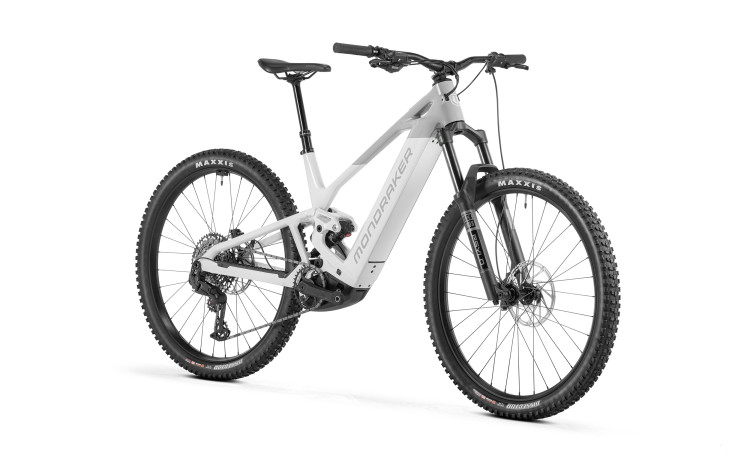

Scree cuenta con batería interna integrada y extraíble de 800W -600W en el montaje S600-, que garantiza toda la energía que necesitas en cada salida. Y cuando llegues a casa puedes extraer la batería para ponerla a cargar junto a tu smartphone.

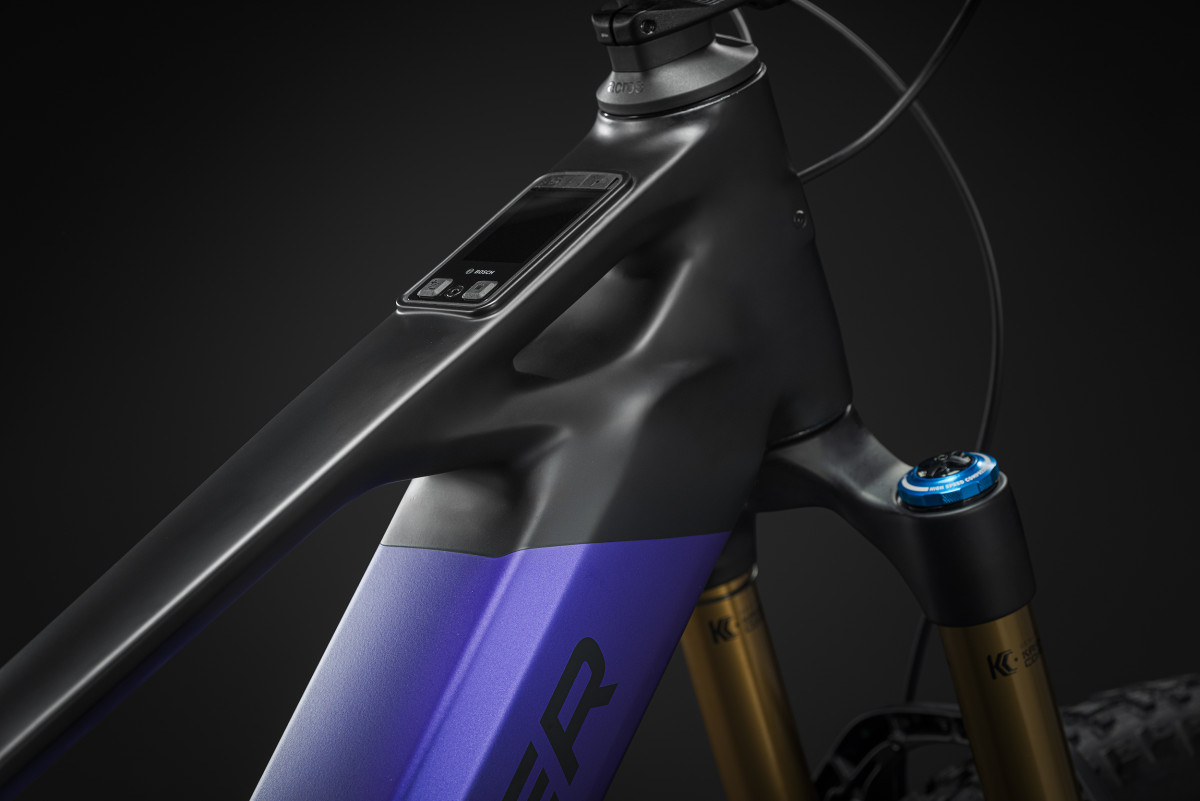

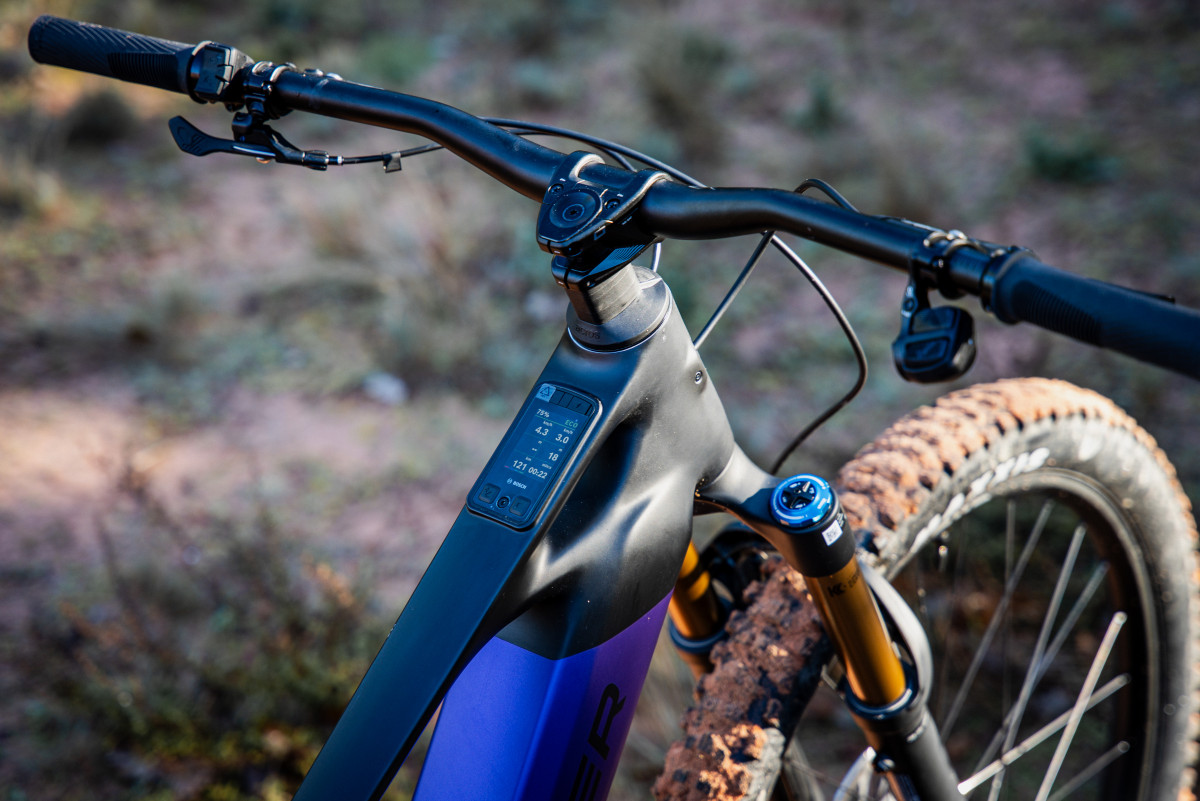

Con un manejo tan intuitivo como el de la propia Scree, el Display Kiox 400 integrado en el tubo superior, te muestra en todo momento la información que necesitas. Gracias a la indicación dinámica, no necesitas cambiar de pantalla, KIOX 400 la muestra por ti, sin necesidad de tocar la pantalla y quitar las manos del manillar.

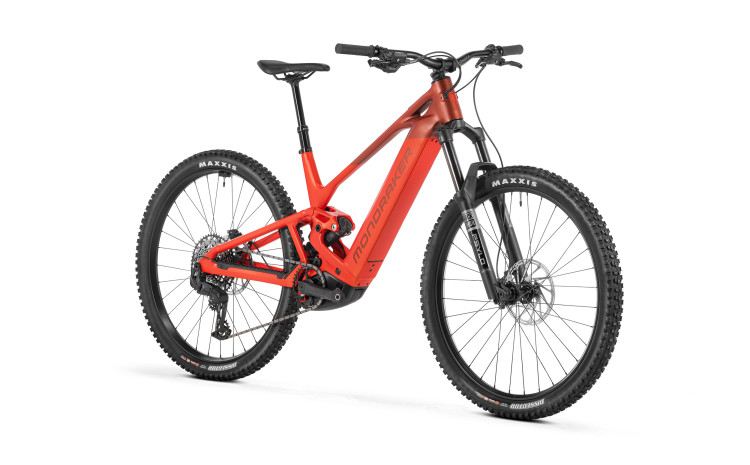

Scree fits you and your style. That’s why it’s available in five frame sizes: S, M, ML, L and XL and four build kits, so that you get a Scree that fits and feels like it was made for you.
|

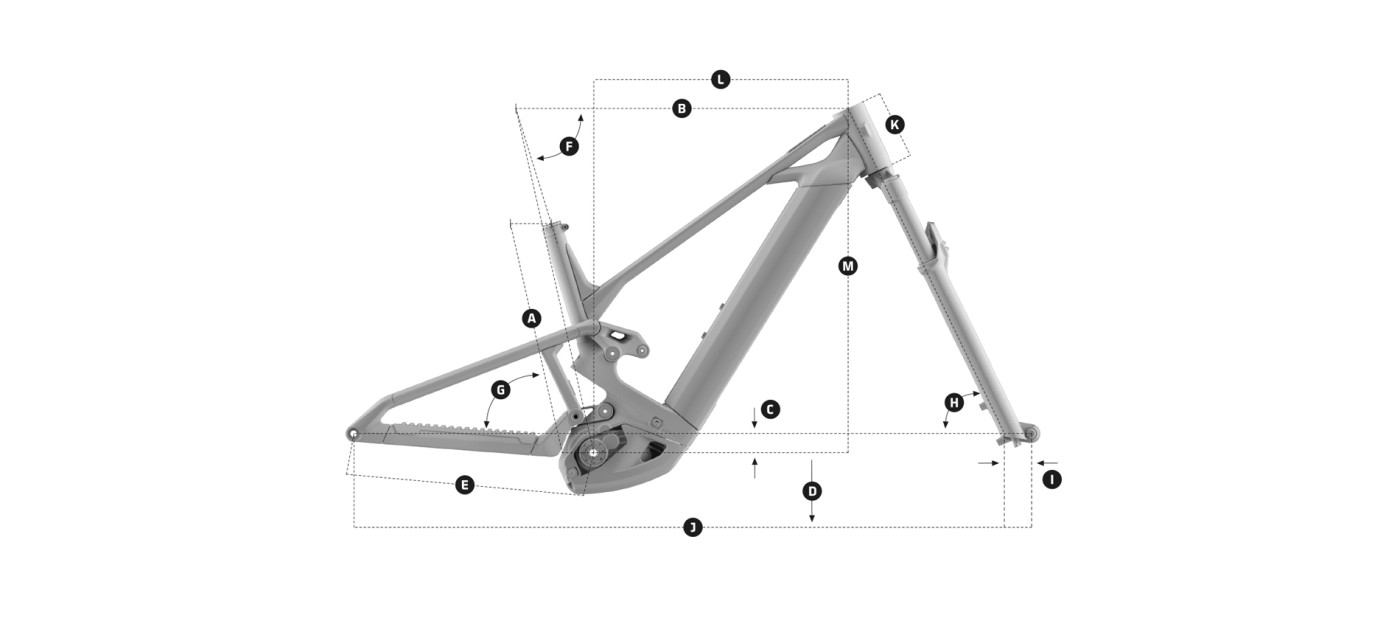

Frame size
|
S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A | Longitud tubo sillín | 380 mm 14.96" | 410 mm 16.14" | 435 mm 17.13" | 460 mm 18.11" | 490 mm 19.29" |
| B | Longitud tubo superior | 587,6 mm 23.13" | 607,6 mm 23.92" | 628,8 mm 24.76" | 650,7 mm 25.62" | 672,8 mm 26.49" |
| C | Caída eje pedalier | -35 mm -1.38" | -35 mm -1.38" | -35 mm -1.38" | -35 mm -1.38" | -35 mm -1.38" |
| D | Altura eje pedalier | 340 mm 13.39" | 340 mm 13.39" | 340 mm 13.39" | 340 mm 13.39" | 340 mm 13.39" |
| E | Longitud vainas | 456 mm 17.95" | 456 mm 17.95" | 456 mm 17.95" | 456 mm 17.95" | 456 mm 17.95" |
| F | Ángulo tubo sillín real | 74° | 74° | 74° | 74° | 74° |
| G | Ángulo tubo sillín efectivo | 77° | 77° | 77° | 77° | 77° |
| H | Ángulo dirección | 65,5° | 65,5° | 65,5° | 65,5° | 65,5° |
| I | Fork Offset | 44 mm 1.73" | 44 mm 1.73" | 44 mm 1.73" | 44 mm 1.73" | 44 mm 1.73" |
| J | Distancia entre ejes | 1221,2 mm 48.08" | 1241,2 mm 48.87" | 1263,3 mm 49.74" | 1287,4 mm 50.69" | 1311,5 mm 51.63" |
| K | Longitud pipa | 125 mm 4.92" | 125 mm 4.92" | 130 mm 5.12" | 140 mm 5.51" | 150 mm 5.91" |
| L | Reach | 440 mm 17.32" | 460 mm 18.11" | 480 mm 18.90" | 500 mm 19.69" | 520 mm 20.47" |
| M | Stack | 644,6 mm 25.38" | 644,6 mm 25.38" | 649,2 mm 25.56" | 658,3 mm 25.92" | 667,4 mm 26.28" |

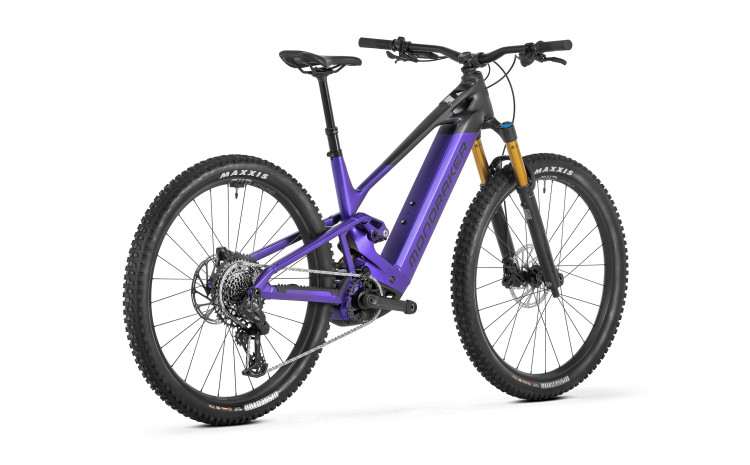

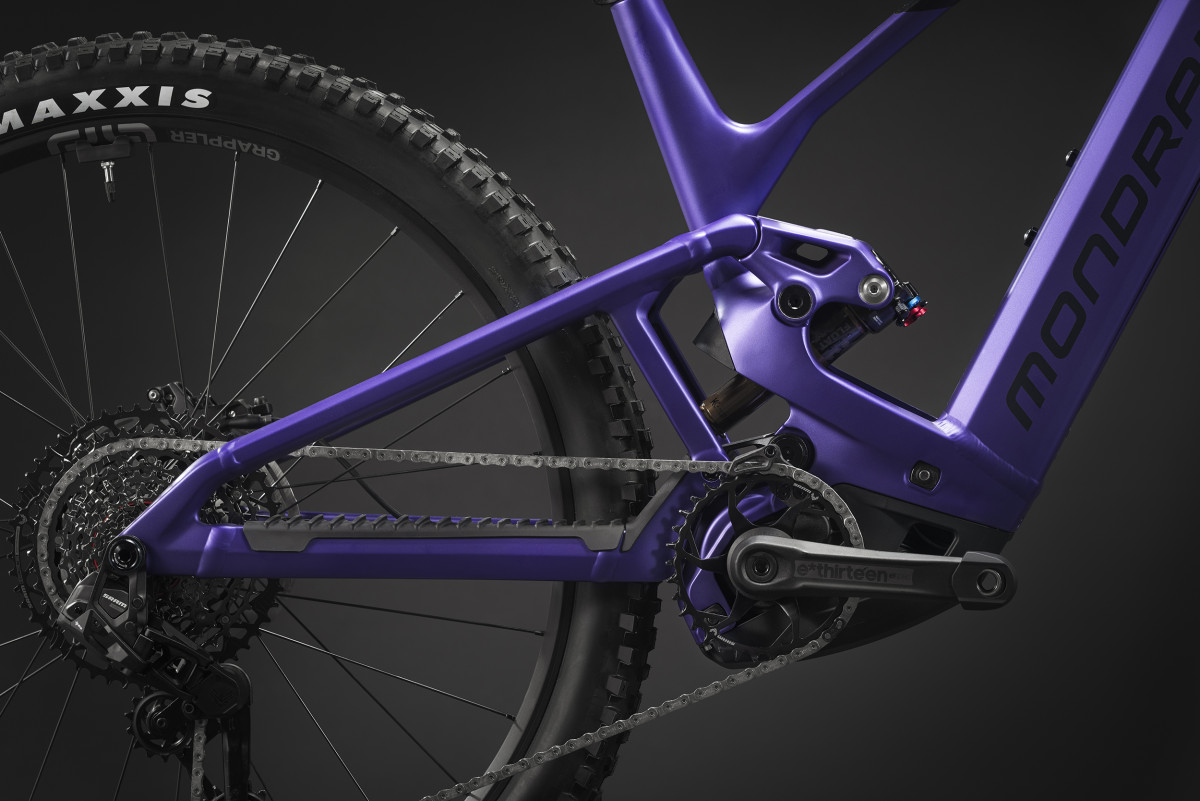

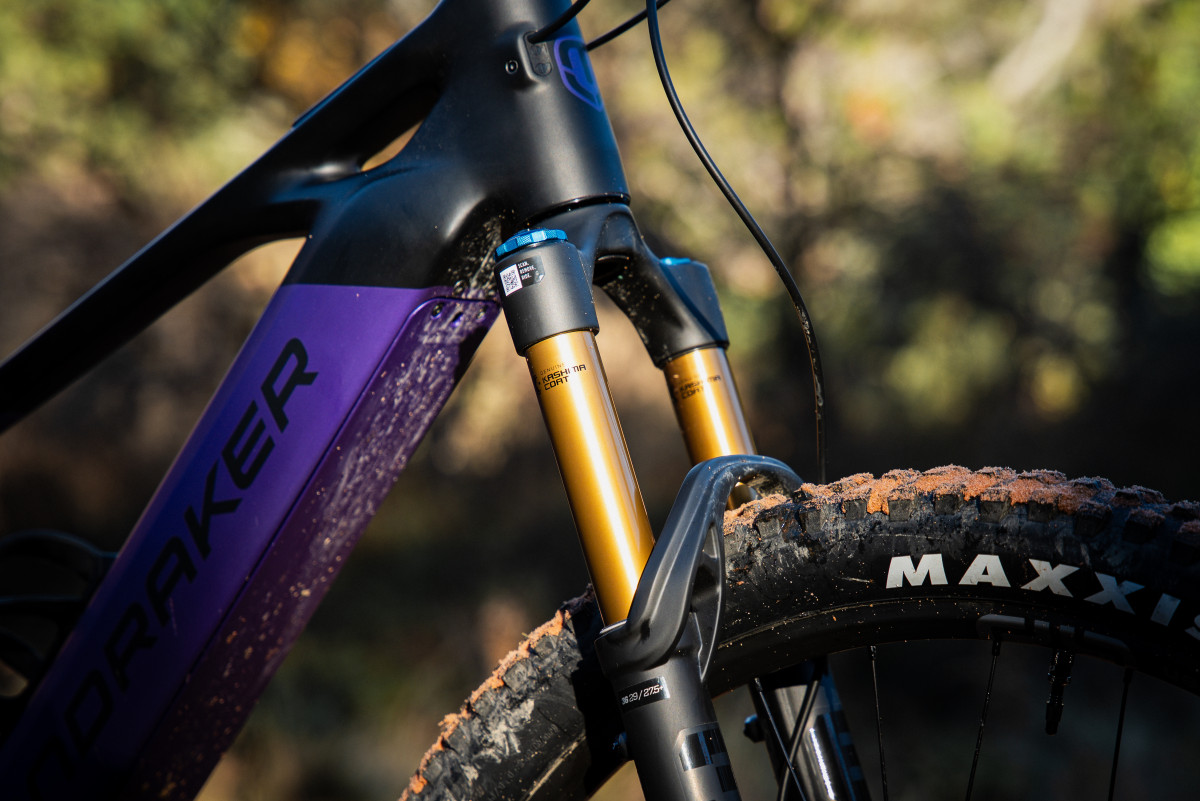

Scree features dual suspension with 130mm rear and 150mm front travel that adapt to rugged terrain and demanding trails while delivering a stable, comfortable ride. When needed, SRAM DB6 hydraulic disc brakes (DB8 Stealth on the RR model) provide smooth stopping power on loose, muddy or steep terrain.
PHOTO CREDITS:
Yohann Mazoyer
Denis Angheben
Encuentra tu tienda más cercana
Esta tabla de tallas es solo una estimación. El tamaño óptimo del cuadro depende también de su estilo personal de montar.
