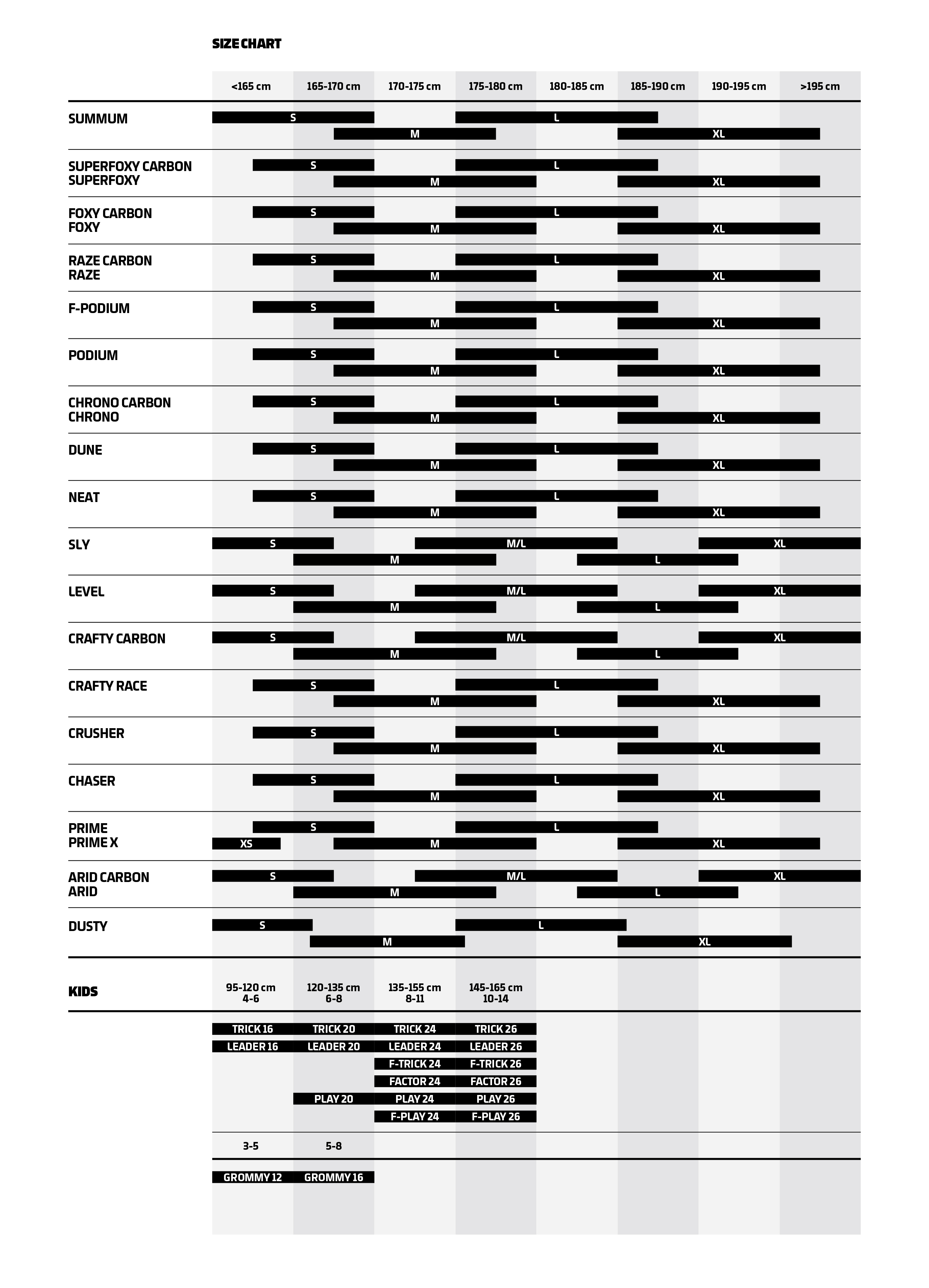

Size guide
CRAFTY RR

CRAFTY RR

e-MTB ALL MOUNTAIN / ENDURO

Bikes CRAFTY RR SL CRAFTY XR CRAFTY RR S CRAFTY R CRAFTY S
Frames CRAFTY RR SL
Information Components Geometry Gallery Downloads
$9,499
SHOP FINDER

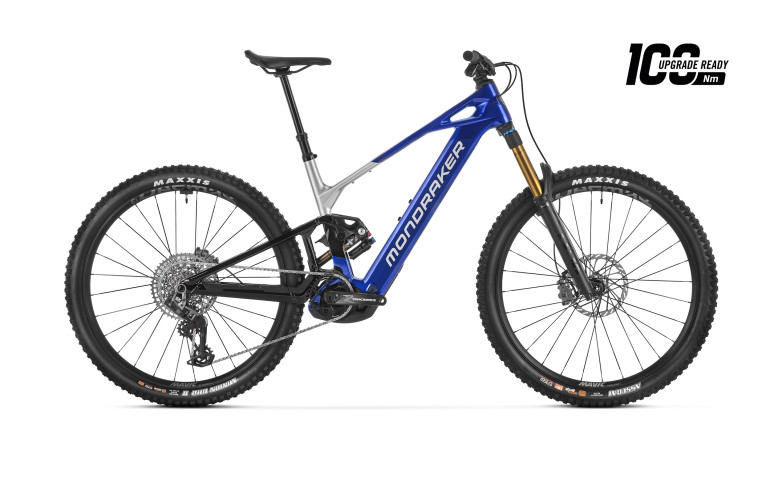

100NM NOW AVAILABLE ON CRAFTY CARBON AND LEVEL!

You’re just a few clicks away from unlocking the most powerful ride you’ve ever experienced on an ebike. The new Crafty Carbon range as well as the newly updated Level, both equipped with Bosch’s new CX Gen 5 motor (BDU 384Y), are now over-the-air upgradable. That means you can update them directly from the Bosch eBike Flow app without leaving your home.

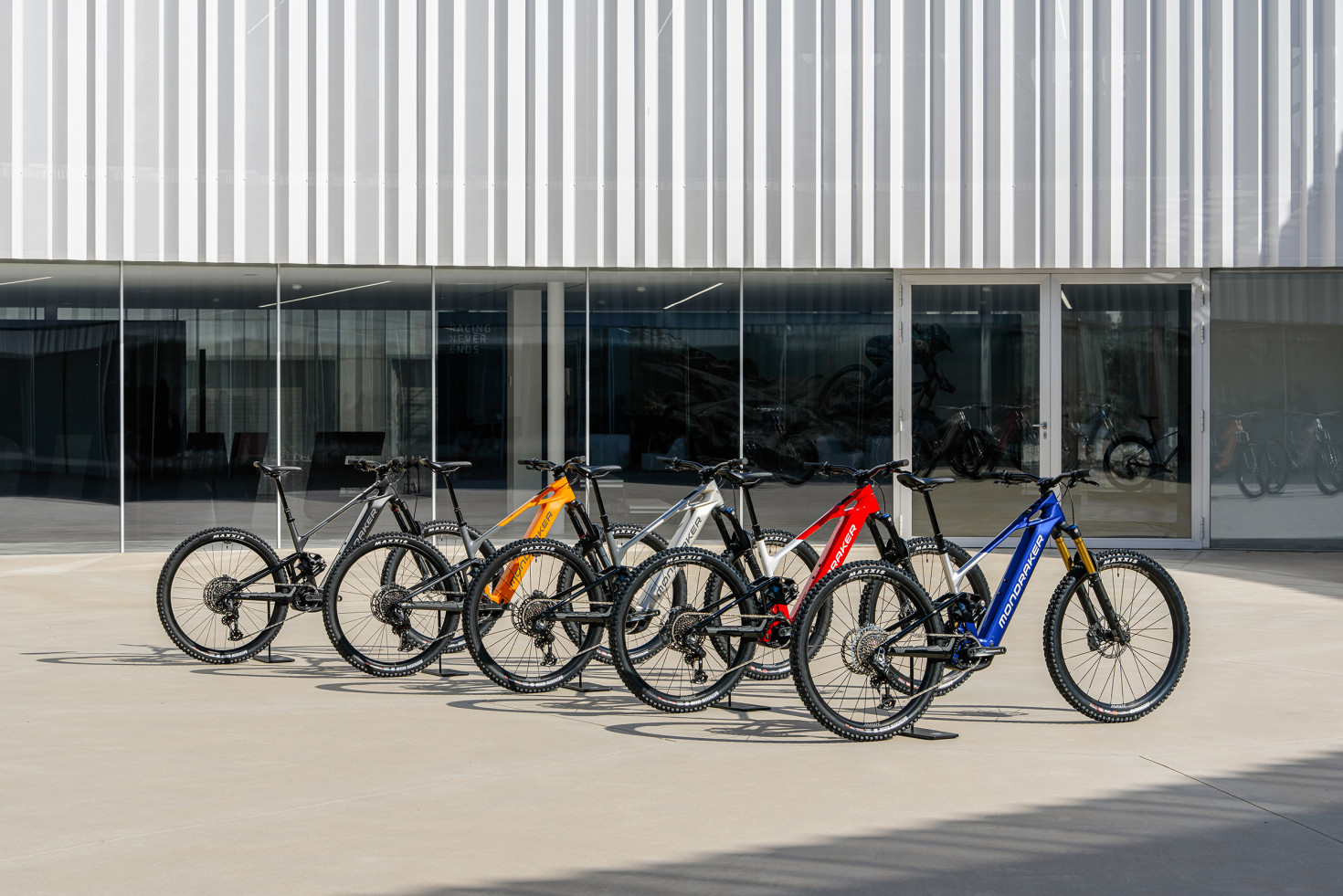

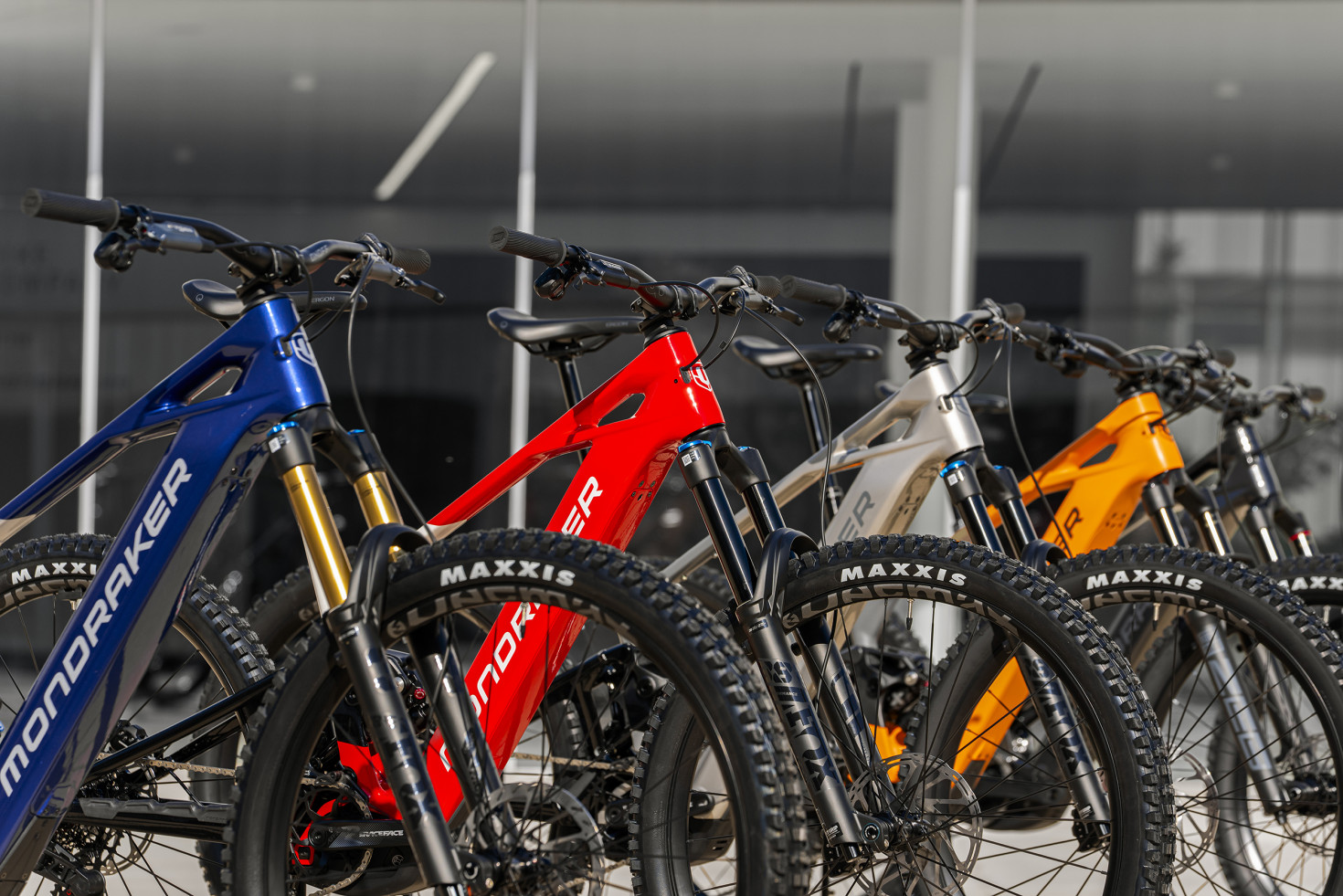

Which colour Crafty Carbon gets your heart racing?

It’s hard to pick a favourite, isn’t it! The thrill of a Crafty Carbon isn’t just about the power, travel or range. No one’s denying this lineup is a true statement of performance: Bosch CX Gen5 motor, a removable 800Wh battery, and now a seamlessly integrated Kiox 400 display flush-mounted in the top tube. But don’t forget the colours! Because each one tells a different story.

  1. 29
  2. ZERO SUSPENSION SYSTEM
  3. FORWARD GEOMETRY
  4. STEALTH CARBON
  5. STEALTH ALLOY
  6. BOSCH

Components

Technical specs

  • frame

    Frame

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

  • fork

    Fork

    Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    Ergon SM-10

    front brake

    Front brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect-R ebike, 160mm

    rings

    Rings

    Sram Eagle 34T T-Type, direct mount, steel, CL55

  • chain

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle AXS, T-Type, 12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

  • weight

    Weight

    53,8 lbs

    display

    Display

    Kiox 400C / Bosch Mini Remote

  • motor

    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    battery

    Battery

    Bosch Powertube 800Wh

Read more Read less

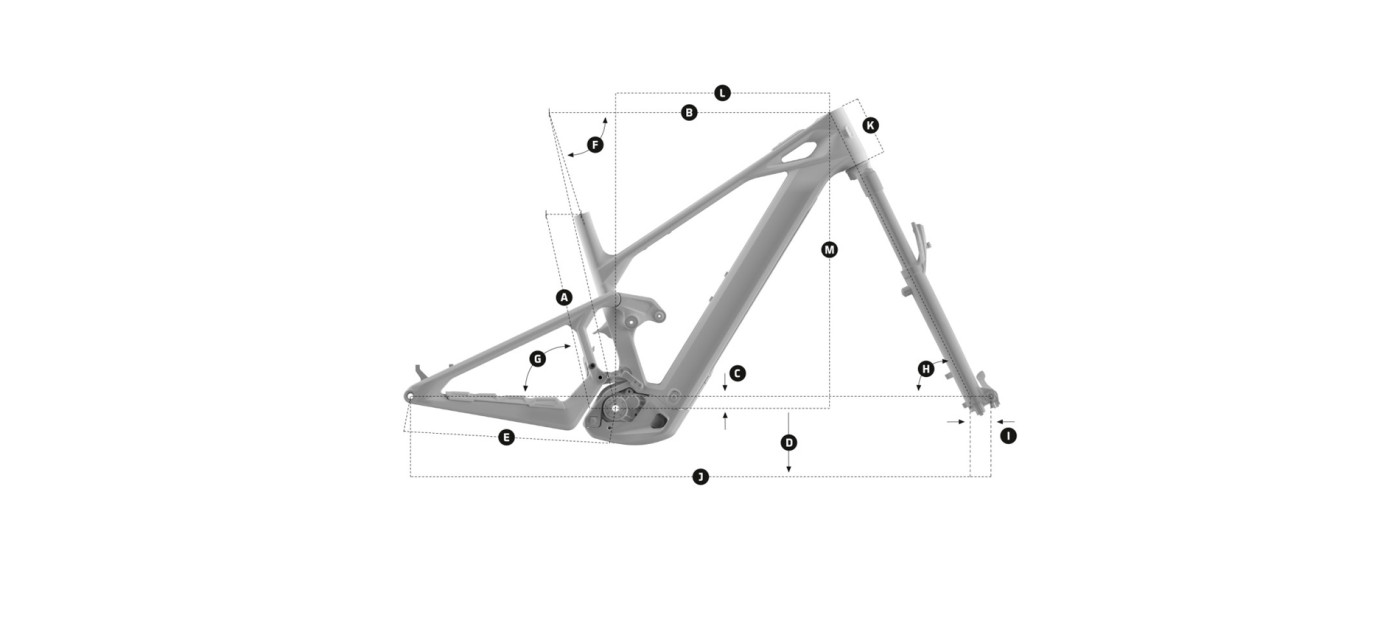

Geometry

mm / inch

Frame size
S [Std/Low] M [Std/Low] M/L [Std/Low] L [Std/Low] XL [Std/Low]
A Seattube length 380 mm 14.96" 410 mm 16.14" 435 mm 17.13" 460 mm 18.11" 490 mm 19.29"
B Toptube length 581 mm/582 mm 22.87" 596 mm/597 mm 23.46" 618 mm/619 mm 24.33" 640 mm/641 mm 25.20" 662 mm/663 mm 26.06"
C Bottom bracket drop -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98"
D Bottom bracket height 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78"
E Chainstay length 455 mm/456 mm 17.91" 455 mm/456 mm 17.91" 455 mm/456 mm 17.91" 465 mm/466 mm 18.31" 465 mm/466 mm 18.31"
F Seat tube angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65°
G Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6°
H Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
I Fork Offset 44 mm 1.73" 44 mm 1.73" 44 mm/44 mm 1.73" 44 mm 1.73" 44 mm/44 mm 1.73"
J Wheelbase 1240 mm/1241 mm 48.82" 1255 mm/1256 mm 49.41" 1280 mm/1281 mm 50.39" 1314 mm/1315 mm 51.73" 1338 mm/1339 mm 52.68"
K Headtube length 120 mm 4.72" 120 mm 4.72" 130 mm 5.12" 140 mm 5.51" 150 mm 5.91"
L Reach 445 mm/441 mm 17.52" 460 mm/456 mm 18.11" 480 mm/476 mm 18.90" 500 mm/496 mm 19.69" 520 mm/516 mm 20.47"
M Stack 638 mm/641 mm 25.12" 638 mm/641 mm 25.12" 647 mm/650 mm 25.47" 656 mm/659 mm 25.83" 665 mm/668 mm 26.18"
Read more Read less
Material de descarga
Spare parts Suspension setup Manual
