29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon

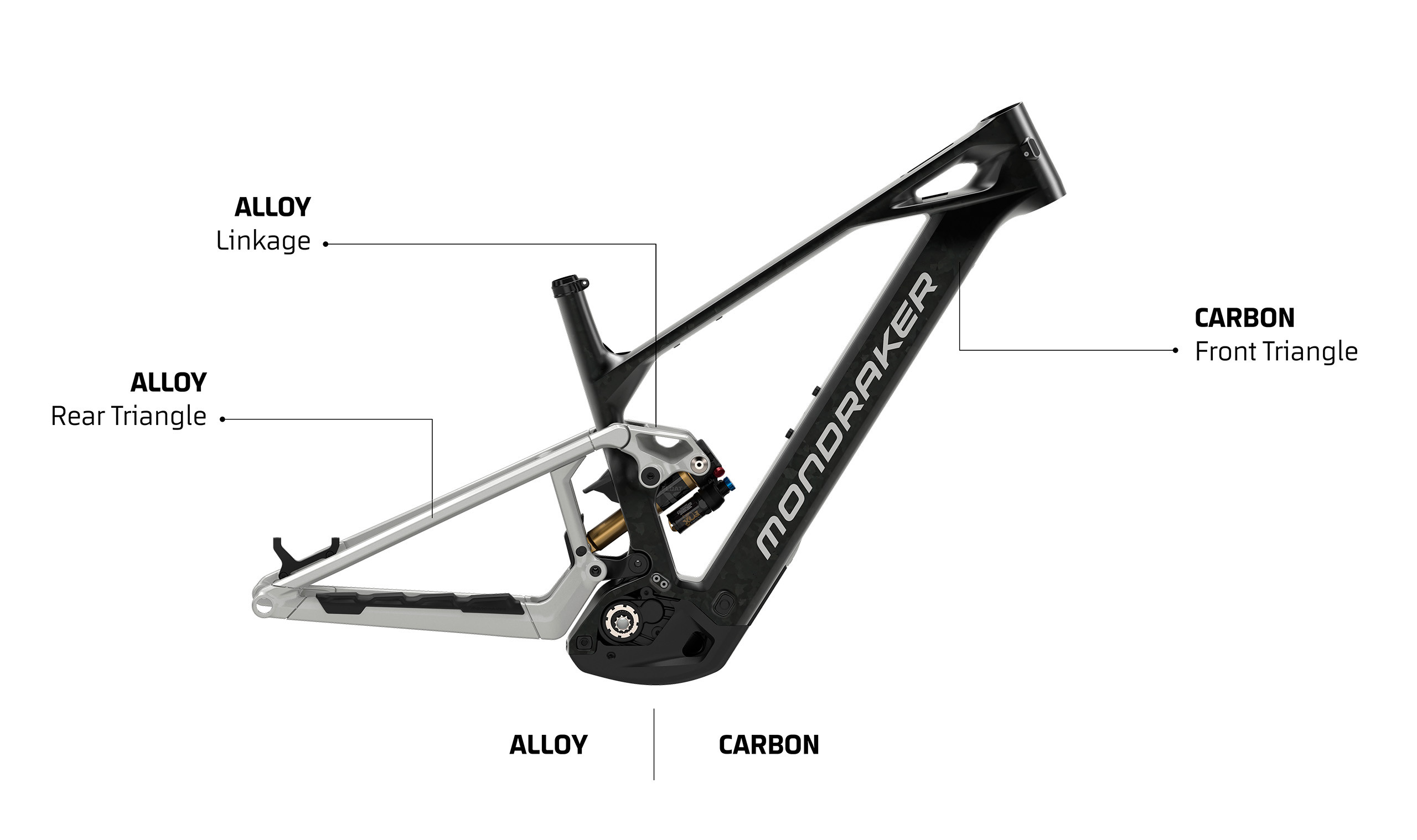

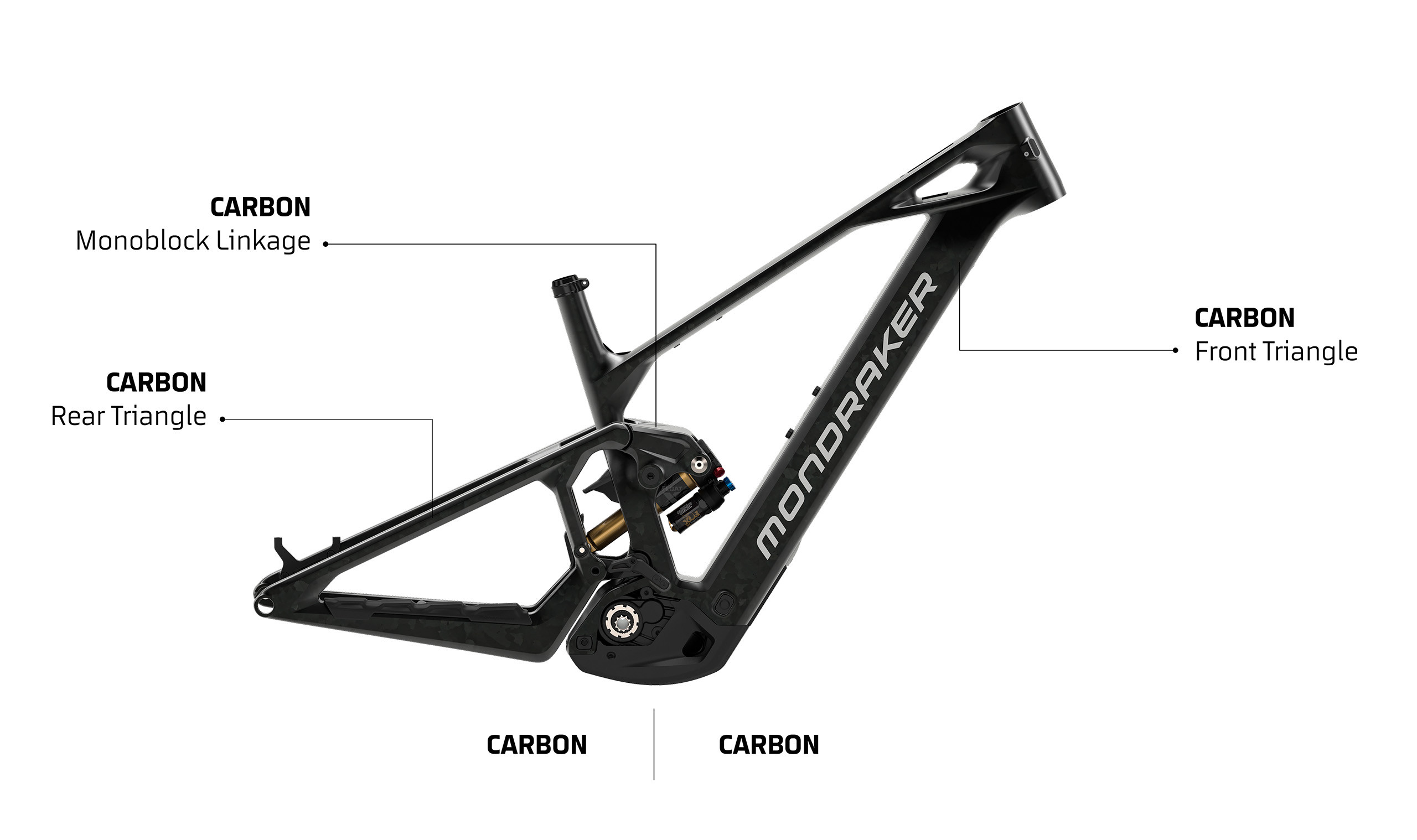

Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes with two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle. The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.
29"
160 mm
150 mm
Bosch CX-R
600 Wh
Carbon
CRAFTY RR SL
29"
170 mm
150 mm
Bosch CX-R
800 Wh
Carbon
CRAFTY XR
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon
CRAFTY CARBON GULF UNLIMITED
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon
CRAFTY RR S
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon / Alloy
CRAFTY RR
29"
160 mm
150 mm
Bosch CX
800 Wh
Carbon / Alloy
CRAFTY R
This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.
The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h
Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries. R and RR models feature the new 800Wh Bosch batteries as original equipment and the more sophisticated RR S, XR and RR SL models are fitted with the lighter 600Wh version. Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics, provide improved efficiency with longer battery range and a much lower weight compared to the previous generation. More kilometres, more fun.
All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube. Weighing in at around 1.5Kg it’s light and easy to carry either on the frame or in a backpack.
The reduced system weight of the motor and 800Wh battery combined results in a 500g weight saving compared to the previous generation Crafty with the 750Wh battery.
The Crafty Carbon R and RR come fitted with the 800Wh battery for greater range, while the RR S, XR and RR SL models come with the 600Wh version to keep the weight down. That said, the batteries are removable (and interchangeable) via a quick-lock system.
Components
Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm
Saddle
Ergon SM-10
Front brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Front hub
Mavic, Boost 20x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
Race Face Aeffect-R ebike, 160mm
Rings
Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram X0 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
52,7 lbs
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
This size table is only an estimation, the optimum frame size depends on your personal preference and riding style
As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.
A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.
|
Frame size
|
S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm 14.96" | 410 mm 16.14" | 435 mm 17.13" | 460 mm 18.11" | 490 mm 19.29" |
| B | Toptube length | 581 mm/582 mm 22.87" | 596 mm/597 mm 23.46" | 618 mm/619 mm 24.33" | 640 mm/641 mm 25.20" | 662 mm/663 mm 26.06" |
| C | Bottom bracket drop | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" |
| D | Bottom bracket height | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" |
| E | Chainstay length | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 465 mm/466 mm 18.31" | 465 mm/466 mm 18.31" |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" |
| J | Wheelbase | 1240 mm/1241 mm 48.82" | 1255 mm/1256 mm 49.41" | 1280 mm/1281 mm 50.39" | 1314 mm/1315 mm 51.73" | 1338 mm/1339 mm 52.68" |
| K | Headtube length | 120 mm 4.72" | 120 mm 4.72" | 130 mm 5.12" | 140 mm 5.51" | 150 mm 5.91" |
| L | Reach | 445 mm/441 mm 17.52" | 460 mm/456 mm 18.11" | 480 mm/476 mm 18.90" | 500 mm/496 mm 19.69" | 520 mm/516 mm 20.47" |
| M | Stack | 638 mm/641 mm 25.12" | 638 mm/641 mm 25.12" | 647 mm/650 mm 25.47" | 656 mm/659 mm 25.83" | 665 mm/668 mm 26.18" |
The new design is also one degree slacker than the previous generation of Crafty Carbon, making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
