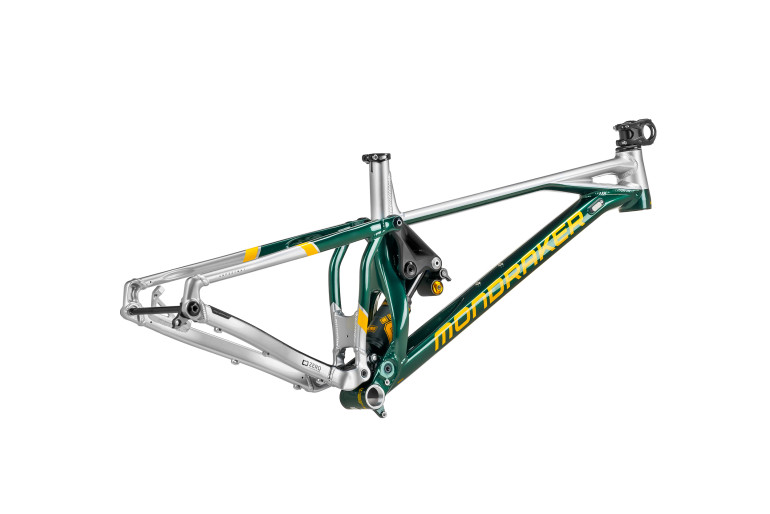

SUPERFOXY R

Bike Frame

Sizes:

S M L XL

29"

160mm

Alloy

SUPER ENDURO

-40%

$1,859 $3,099

Components

Frame

SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

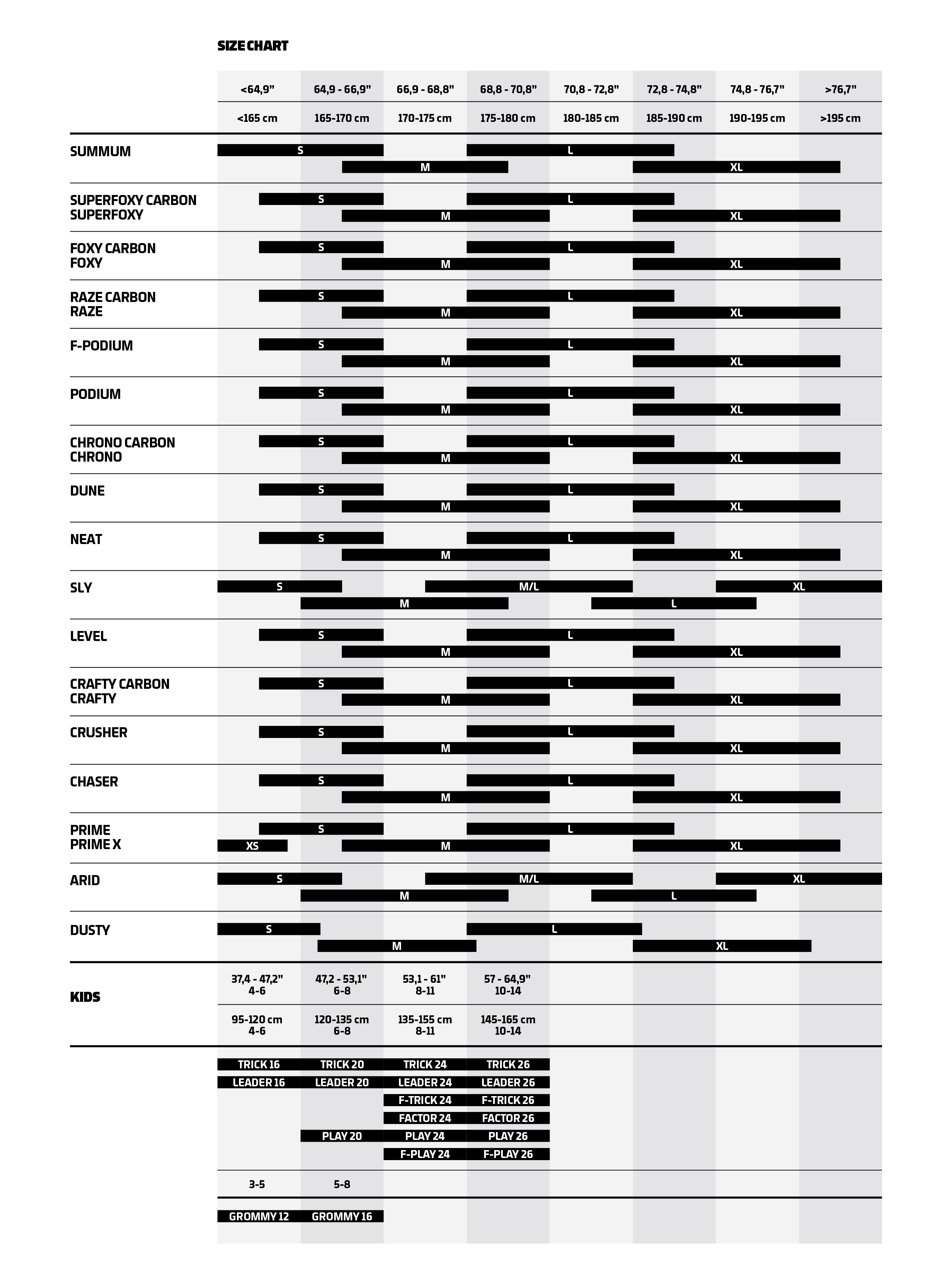

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Derailleur hanger

Mondraker M068

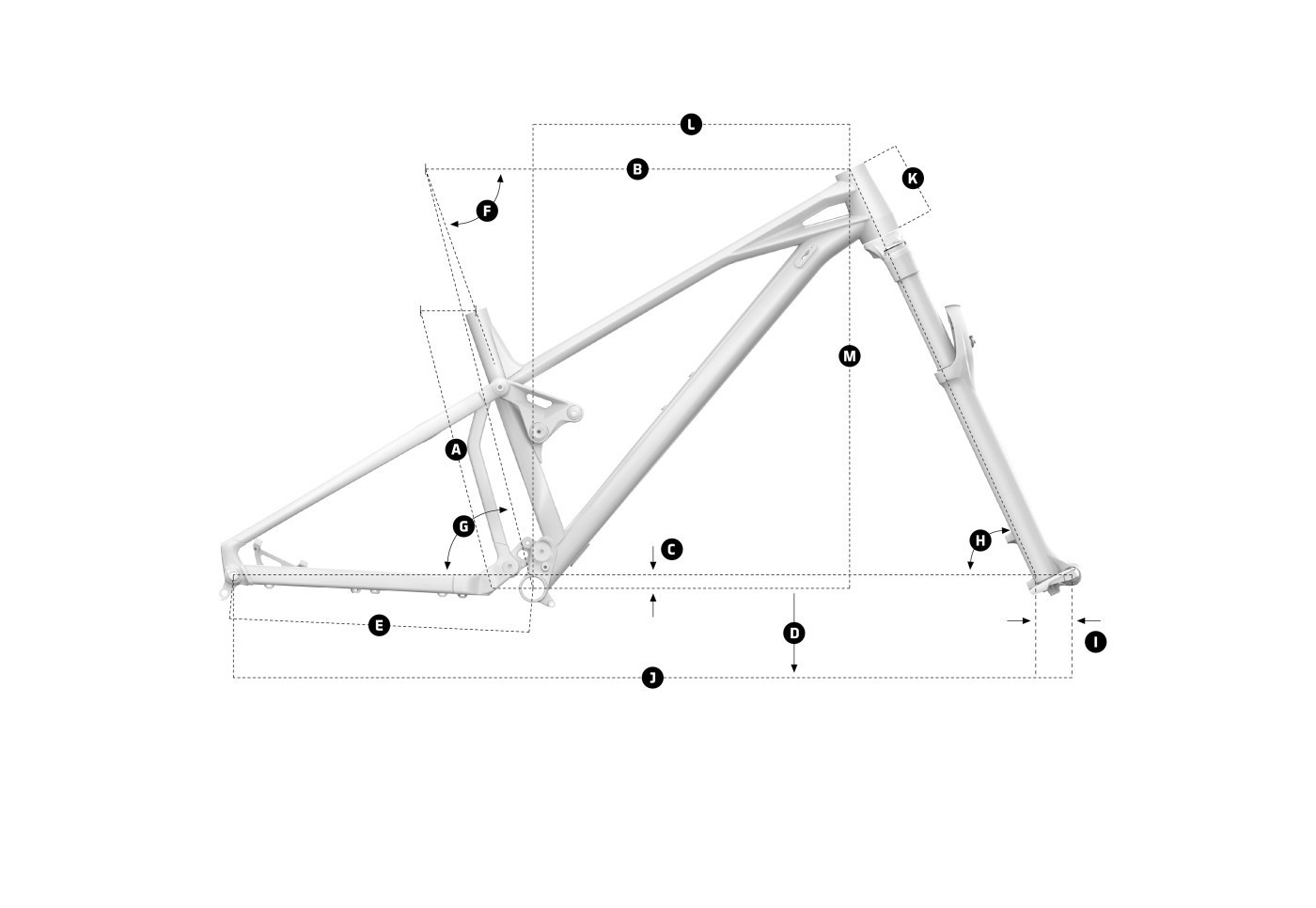

mm / inch


	Frame size	S	M	L	XL
A	Seattube length	380 mm 14.96"	420 mm 16.54"	470mm 18.50"	510 mm 20.08"
B	Toptube length	605 mm 23.82"	625 mm 24.61"	650 mm 25.59"	670 mm 26.38"
C	Bottom bracket drop	-20 mm -0.79"	-20 mm -0.79"	-20 mm -0.79"	-20 mm -0.79"
D	Bottom bracket height	350 mm 13.78"	350 mm 13.78"	350 mm 13.78"	350 mm 13.78"
E	Chainstay length	445 mm 17.52"	445 mm 17.52"	445 mm 17.52"	445 mm 17.52"
F	Seat tube angle	71°	71°	71°	71°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65°	65°	65°	65°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1224 mm 48.19"	1245 mm 49.02"	1273 mm 50.12"	1293 mm 50.91"
K	Headtube length	100 mm 3.94"	110mm 4.33"	130 mm 5.12"	130 mm 5.12"
L	Reach	450 mm 17.72"	470 mm 18.50"	490 mm 19.29"	510 mm 20.08"
M	Stack	621 mm 24.45"	621 mm 24.45"	639 mm 25.16"	639 mm 25.16"
