Components
Technical specs
-
Frame
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

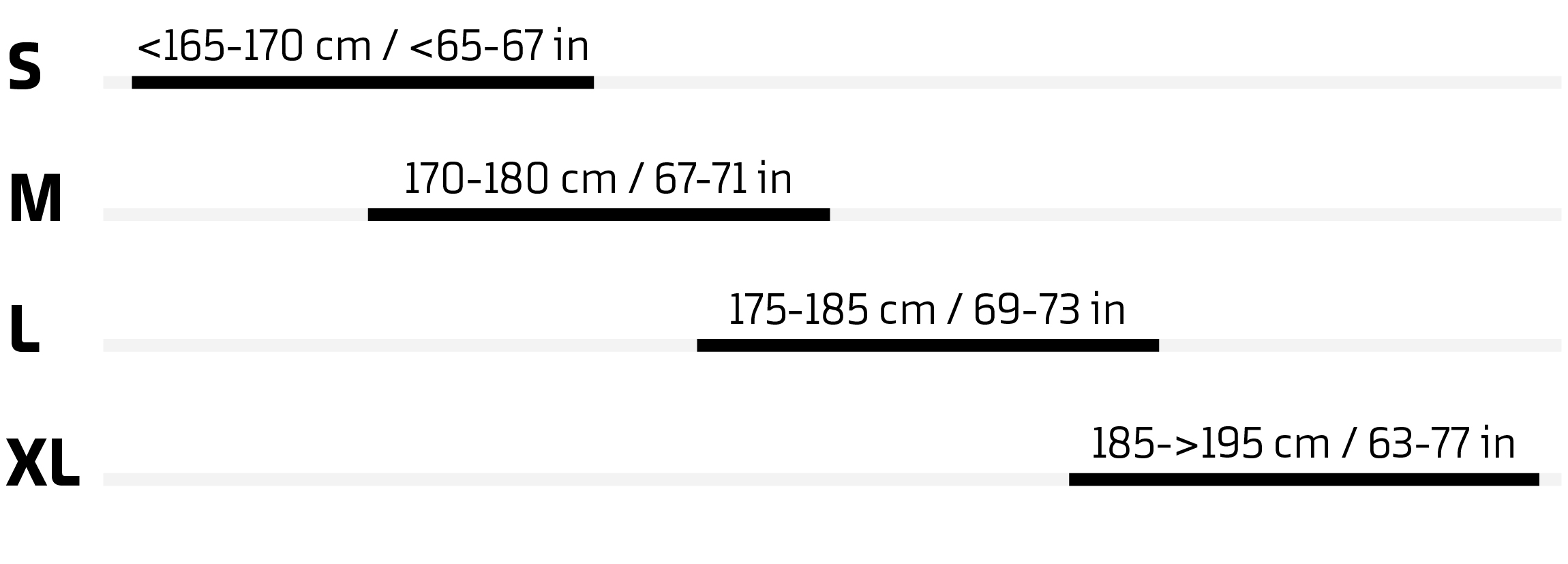

Sizes
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
-
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
-
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm L size: 440mm XL size: 460mm
-
Grips
Onoff HEX Bartape
Seatpost
Onoff S3 0-R, diameter 31.6mm, length 400mm
-
Saddle
Fizik Terra Argo X7 150mm
Front brake
Sram Apex AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
-
Rear brake
Sram Apex AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
-
Rims
Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
-
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mahle X20 Drive Unit, XDR freehub
-
Front tire
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
-
Crankset
Sram Apex 1 Wide, S size: 165mm M size: 170mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
-
Bottom bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
Sram NX Eagle, 12s, Powerlock
-
Rear derrailleur
Sram GX Eagle AXS,12s
Shift levers
Sram Apex AXS D1 12s
-
Casette
Sram XG-1275, 10-52T, 12s
Derailleur hanger
Mondraker M076
-
Others
Optional external battery: Mahle e185Wh
Weight
29,5 lbs
-
Display
Pulsar One Wireless
Motor
Mahle X20 Drive Unit
-
Battery
Mahle X20 IX350Wh
