Bike Frame
Sizes:
S M L XL
29"
160mm
150mm
TQ-HPR50
Carbon

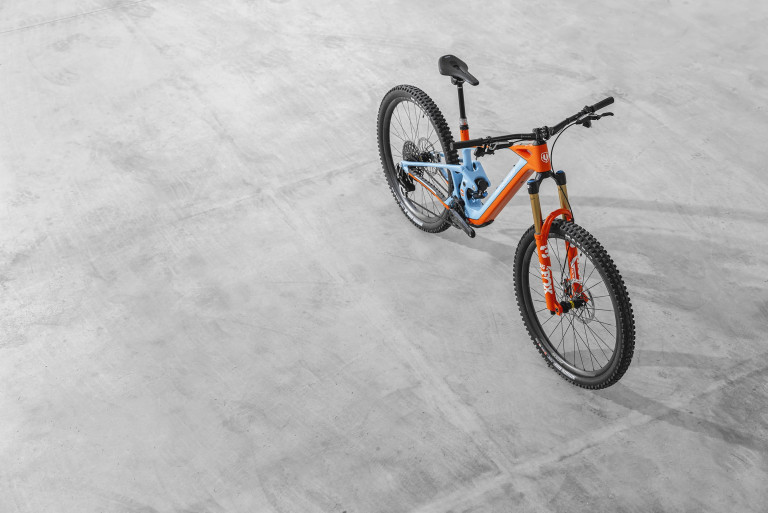

TWO WORLDS COLLIDE
TWO WORLDS COLLIDE

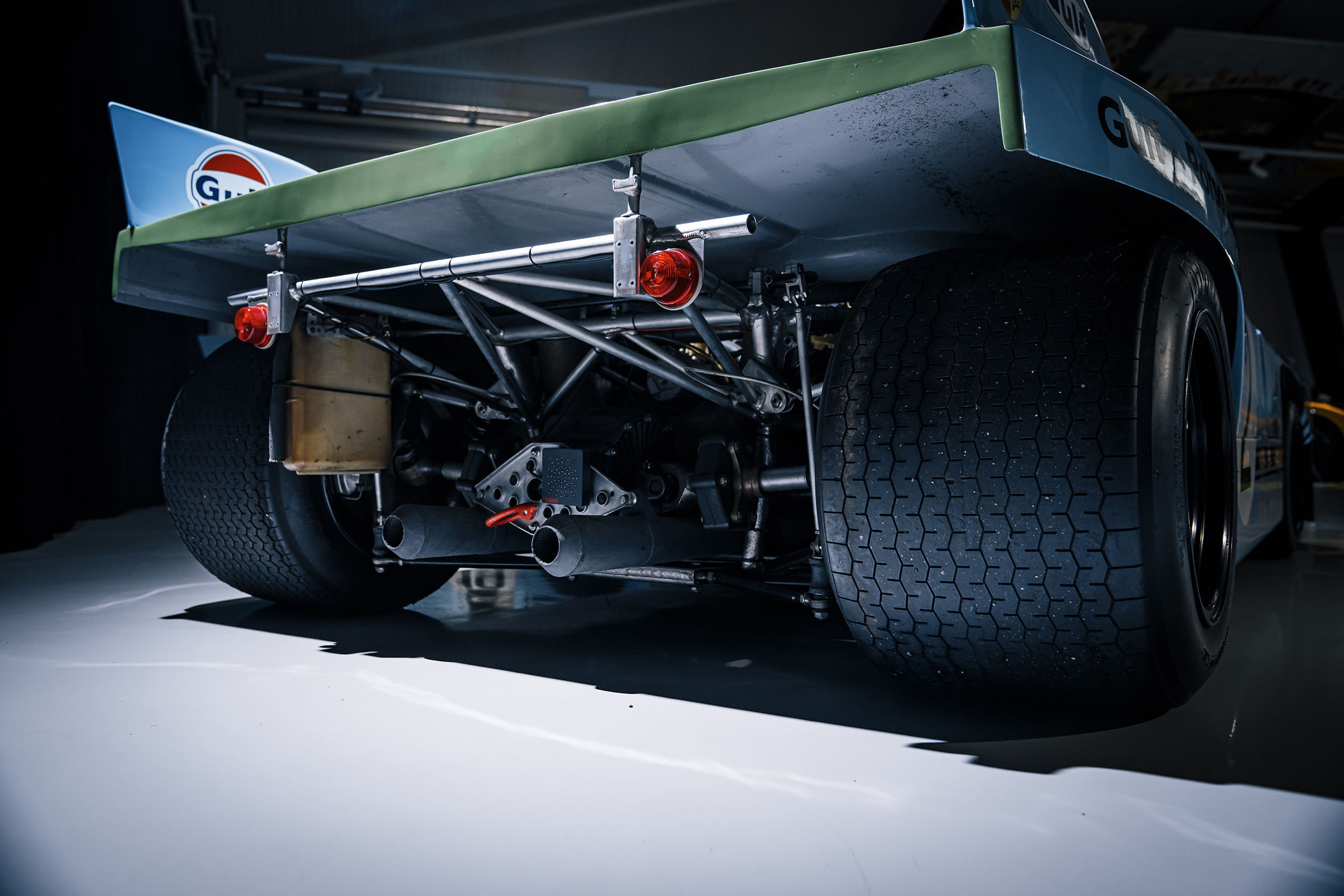

In the world where speed meets nature’s untamed beauty, there exists a timeless tale of two legends, each carving their own path through history. Step back in time to the roaring ‘70s, where the Porsche 917 K reigned supreme on the racetracks, adorned in Gulf Oil’s vibrant colors like a work of art in motion. Drivers, fearless and fueled by passion, gripped the wheel tight as they danced with destiny on the asphalt, chasing glory with every thunderous roar of the engine.


Two worlds collide, bridging the gap between tradition and innovation, past and future. Whether you’re drawn to the adrenaline-fueled excitement of the racetrack or the rush found in the mountain trails, there’s a common thread that binds us all: the pursuit of passion and the thrill of the journey. So, whether you’re a seasoned petrolhead or a mountain biking enthusiast, heed the call of the open road and the winding trail. Embrace the spirit of adventure, and let the legends of the Porsche 917 K and the Mondraker NEAT Unlimited Gulf inspire you to chase your dreams, wherever they may lead.


LIMITED EDITION: FROM 1 TO 50

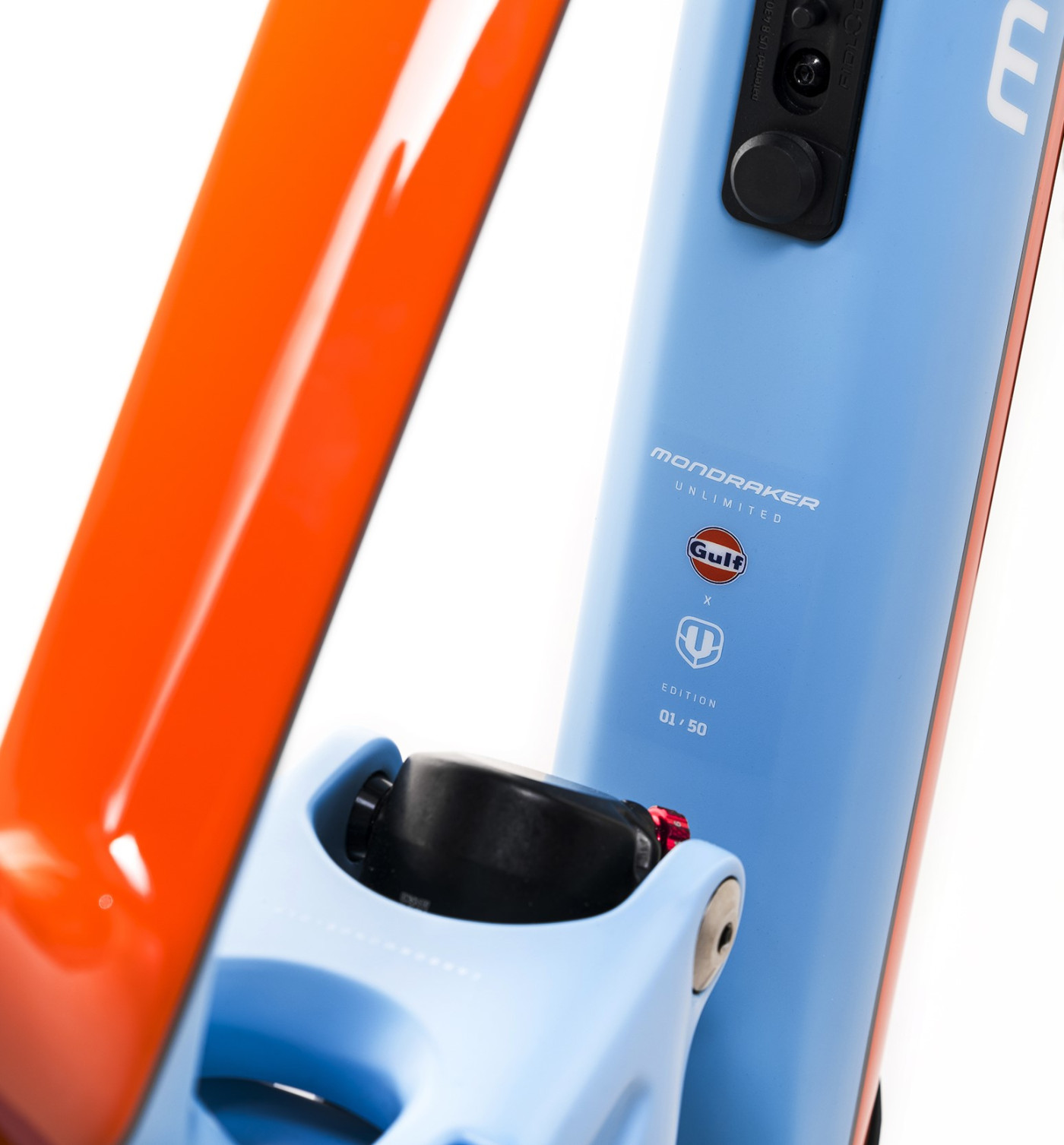

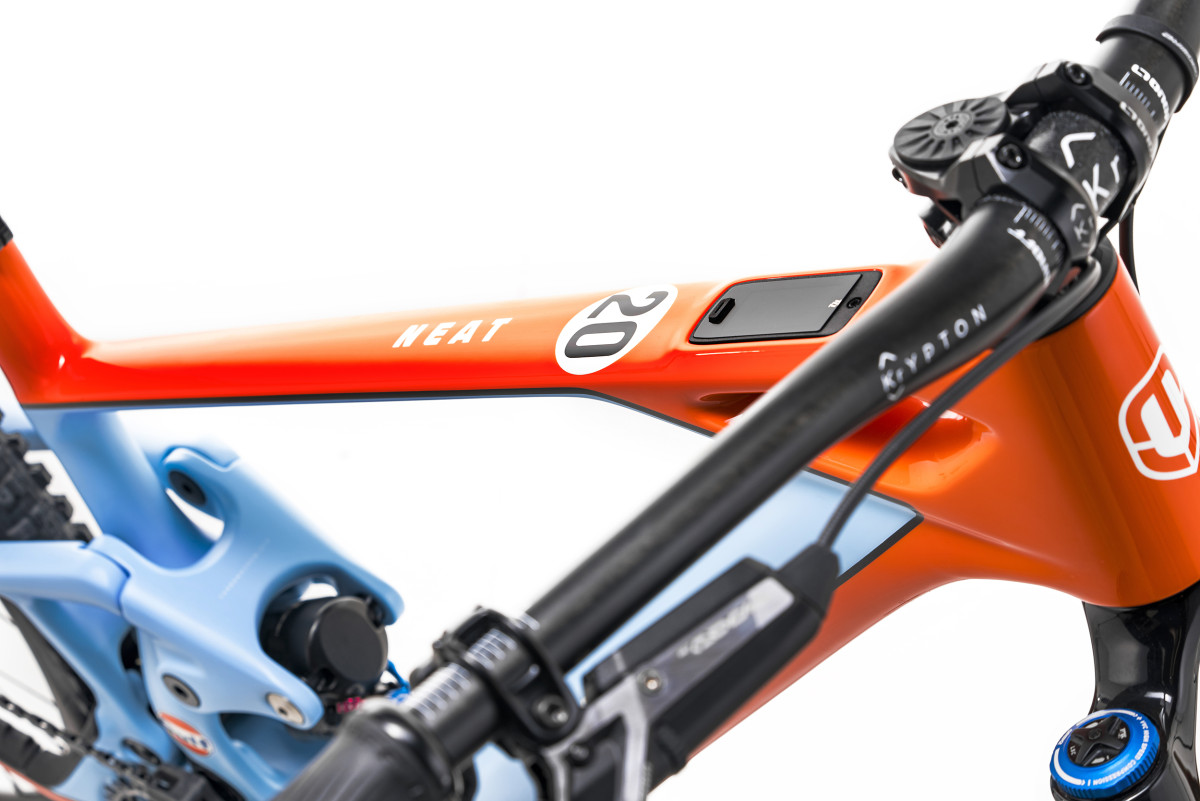

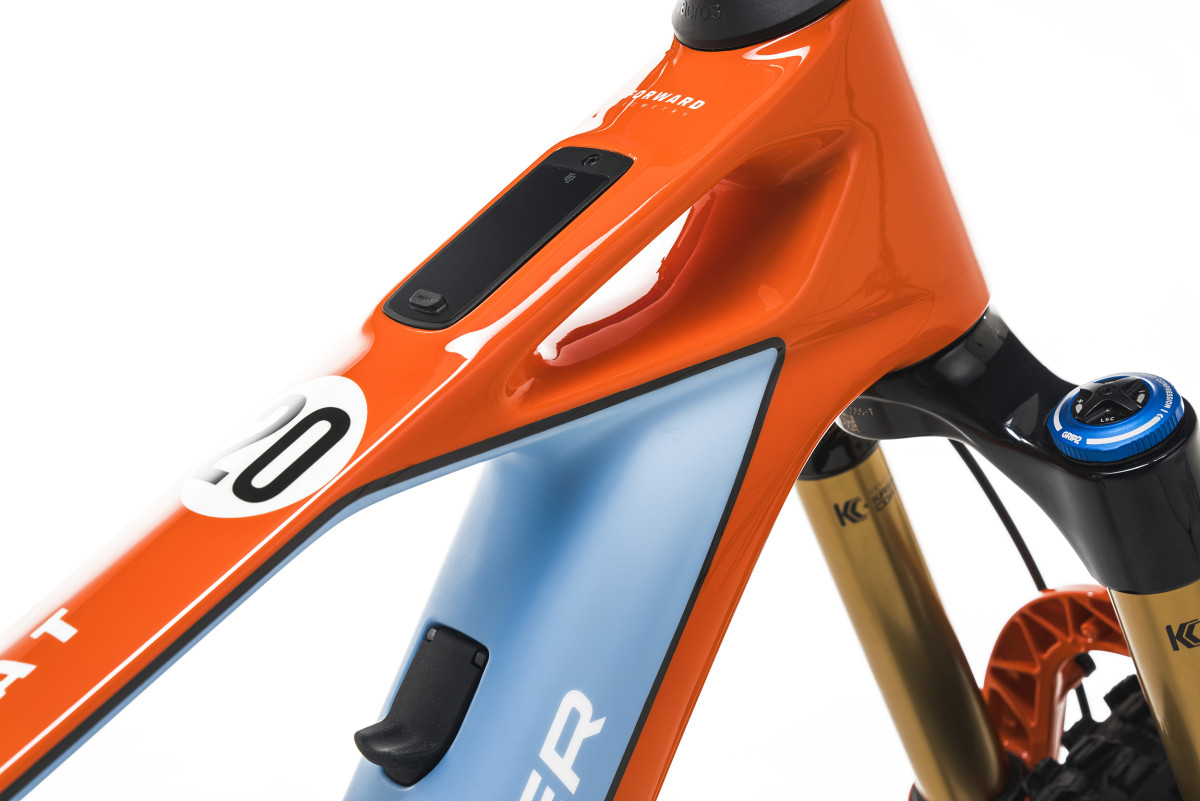

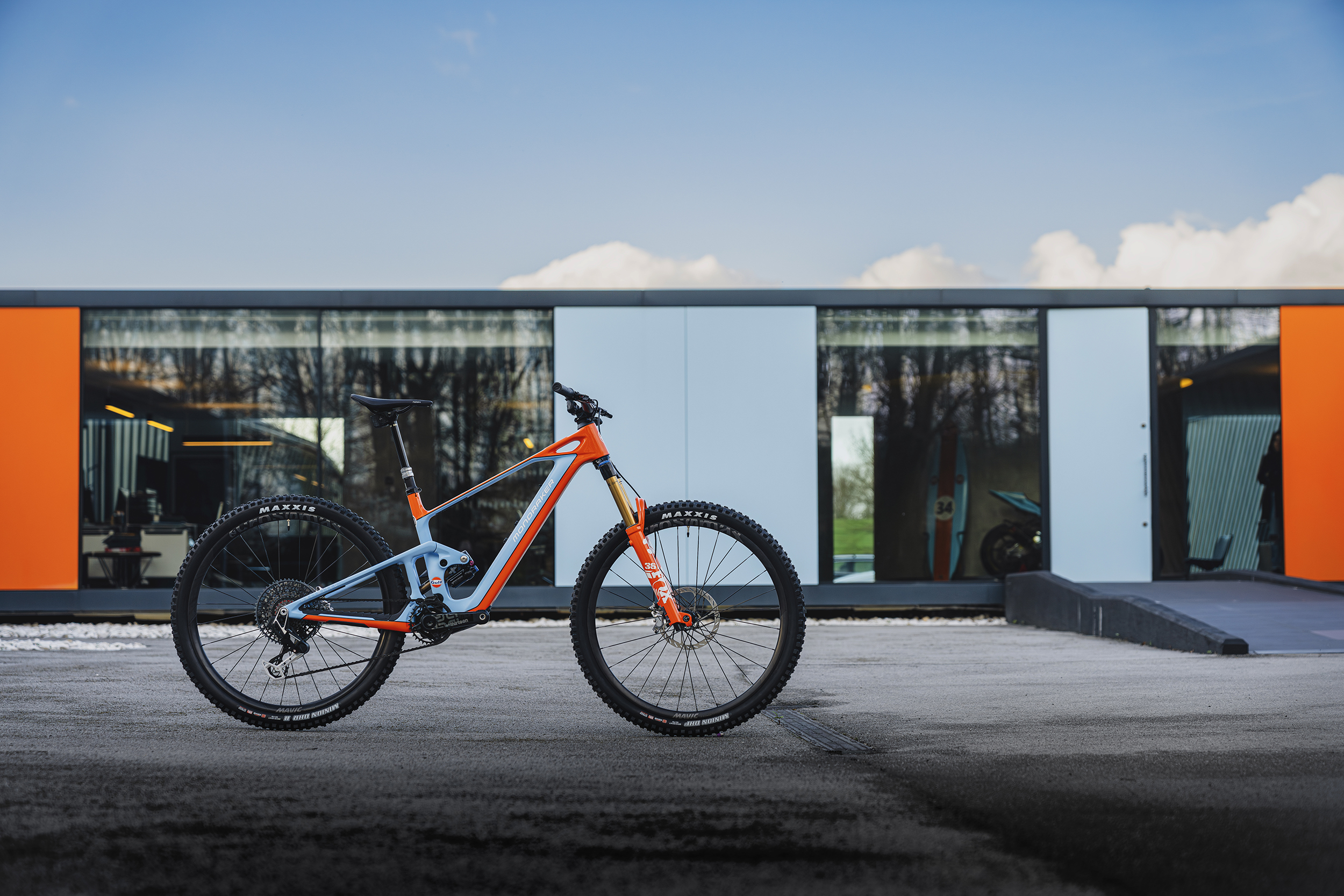

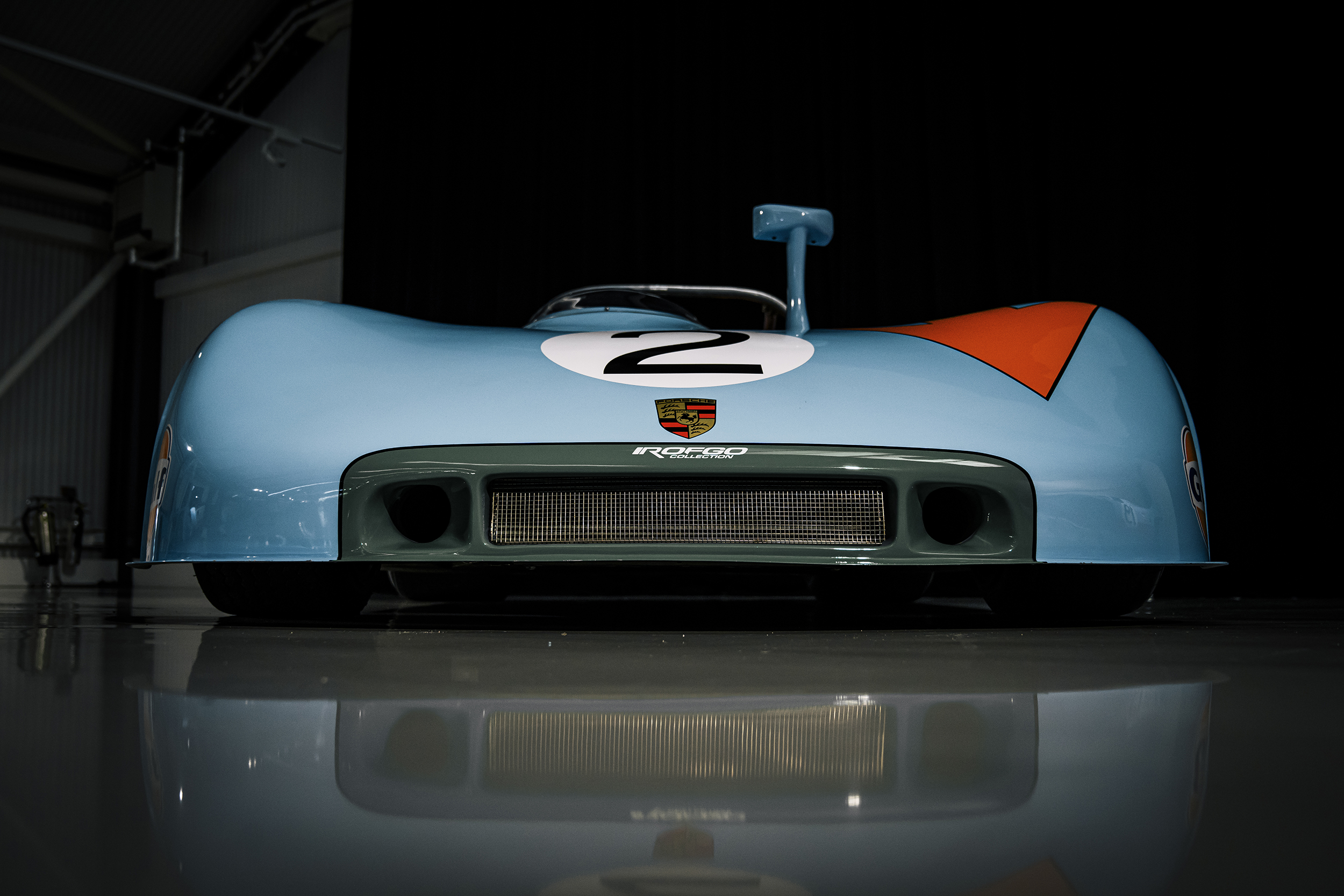

One by one. The same care, the same painstaking attention to detail. Here at Mondraker we know how to make limited-edition bikes with added value. Each of the 50 NEAT Unlimited Gulf Edition has been 100% hand-painted, individually, by specialist bike painters, lovingly integrating the spirit of the Gulf racing livery into the frame of the NEAT. The gloss of the orange, contrasting perfectly with the matte light blue together with the detail of the number 20 painted on the top-tube. All paying homage to the 3 Porshe 917Ks still in existence, the 917s which ate up so many kilometres in endurance races such as the legendary “Le Mans”.

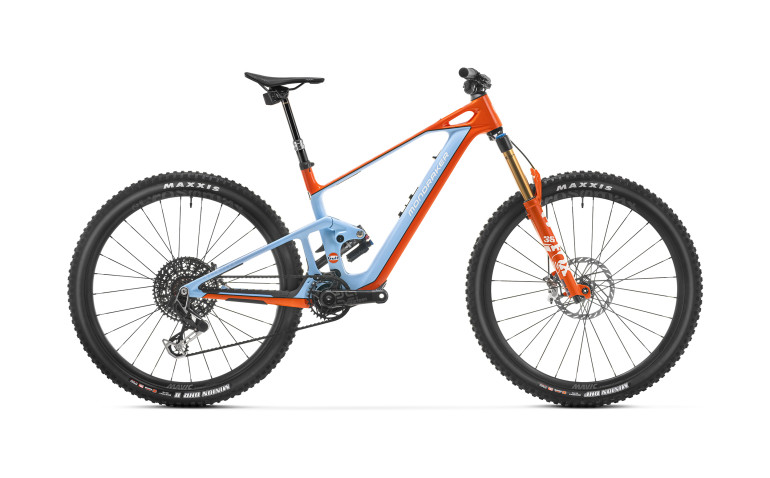

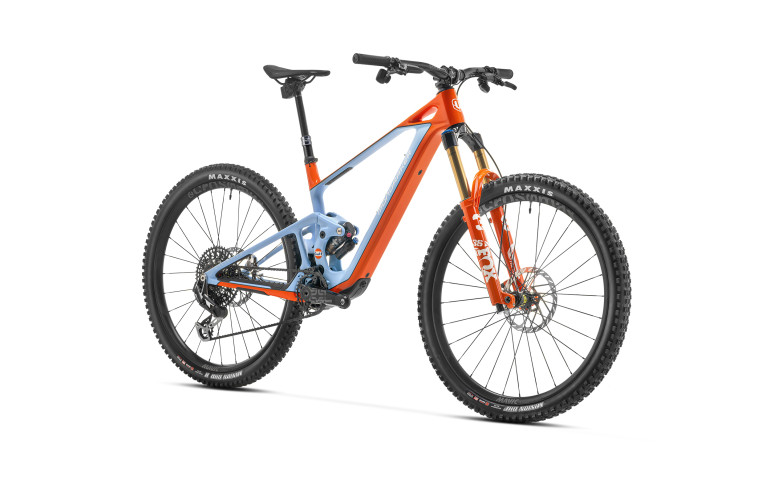

LIGHT E-MTB / MOTOR TQ-HPR50 / ENDURO / 29” / 160MM-150MM / STEALTH AIR FULL CARBON

Components

Technical specs

  • frame

    Frame

    Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

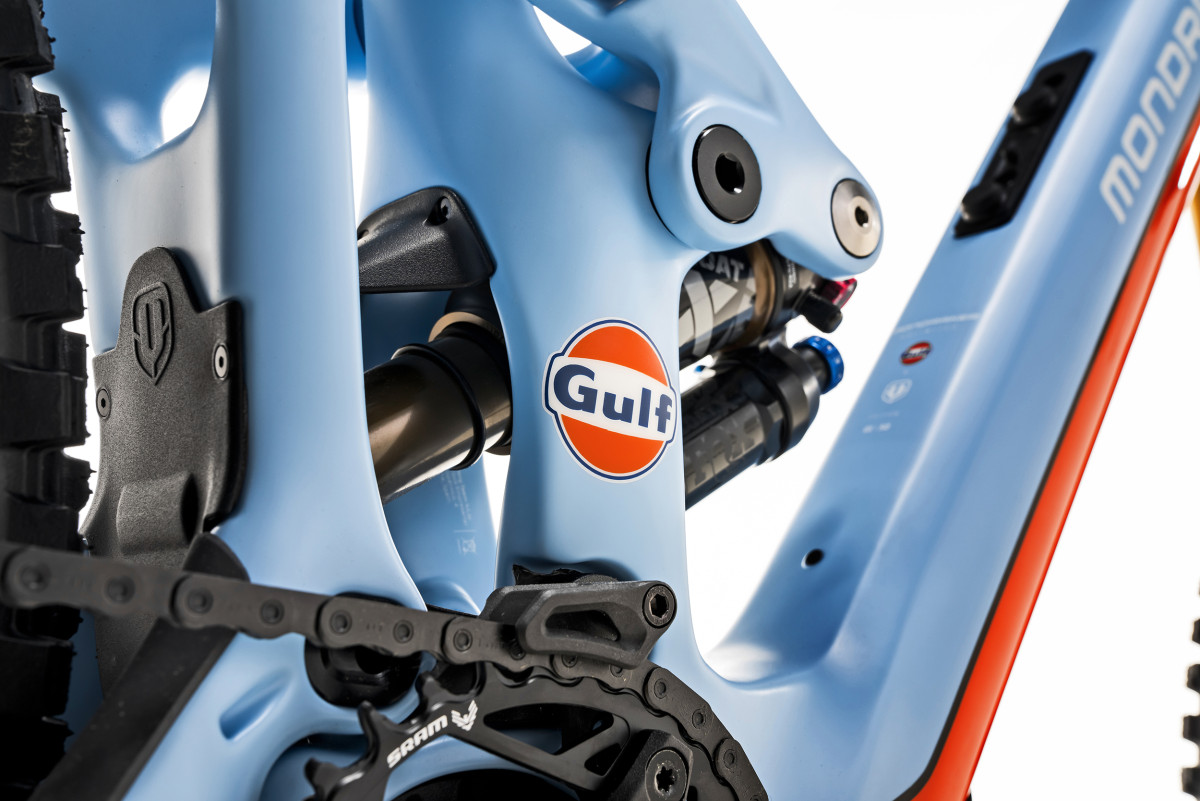

    Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    Medium compression, medium rebound, air volume spacer 0.4

  • fork

    Fork

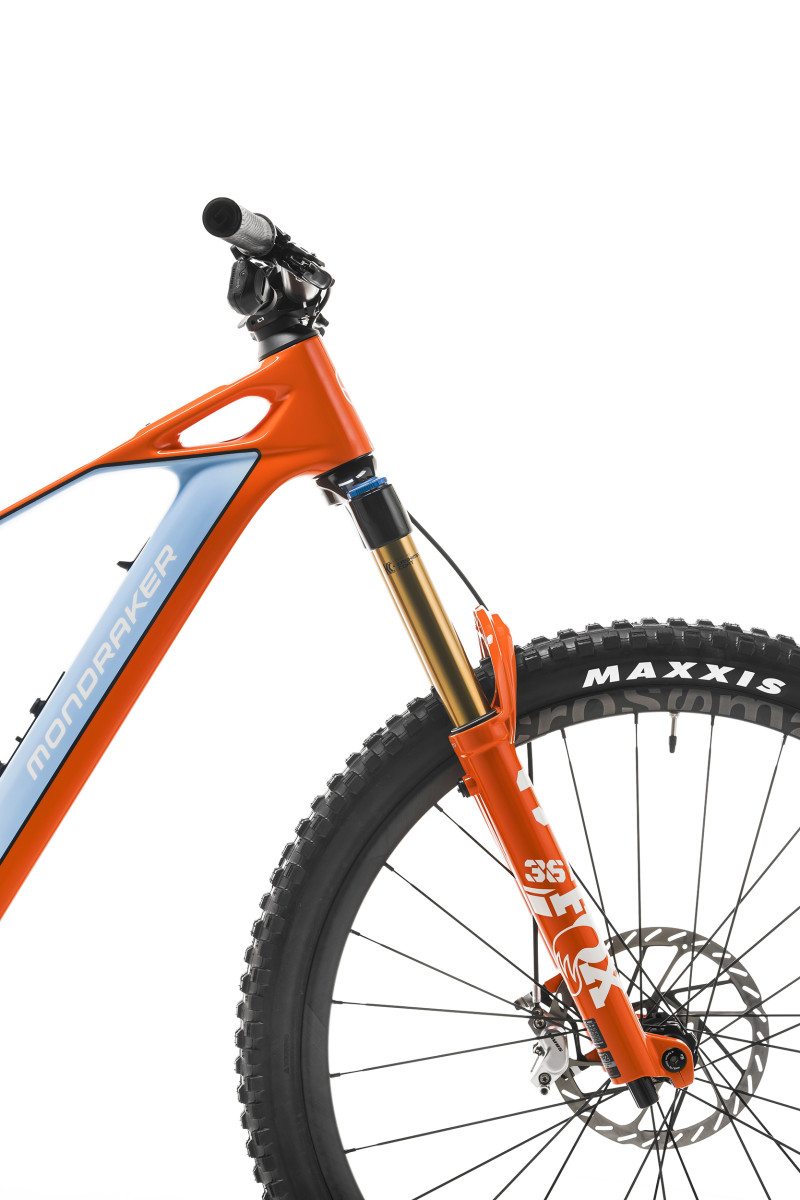

    Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Orange, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

  • stem

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

  • saddle

    Saddle

    Fizik Terra Aidon Slim X5

    front brake

    Front brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram Code Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust

  • rims

    Rims

    Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic 28 straight-pull double butted spokes

  • front hub

    Front hub

    Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

  • crankset

    Crankset

    E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram X0 Eagle T-Type, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

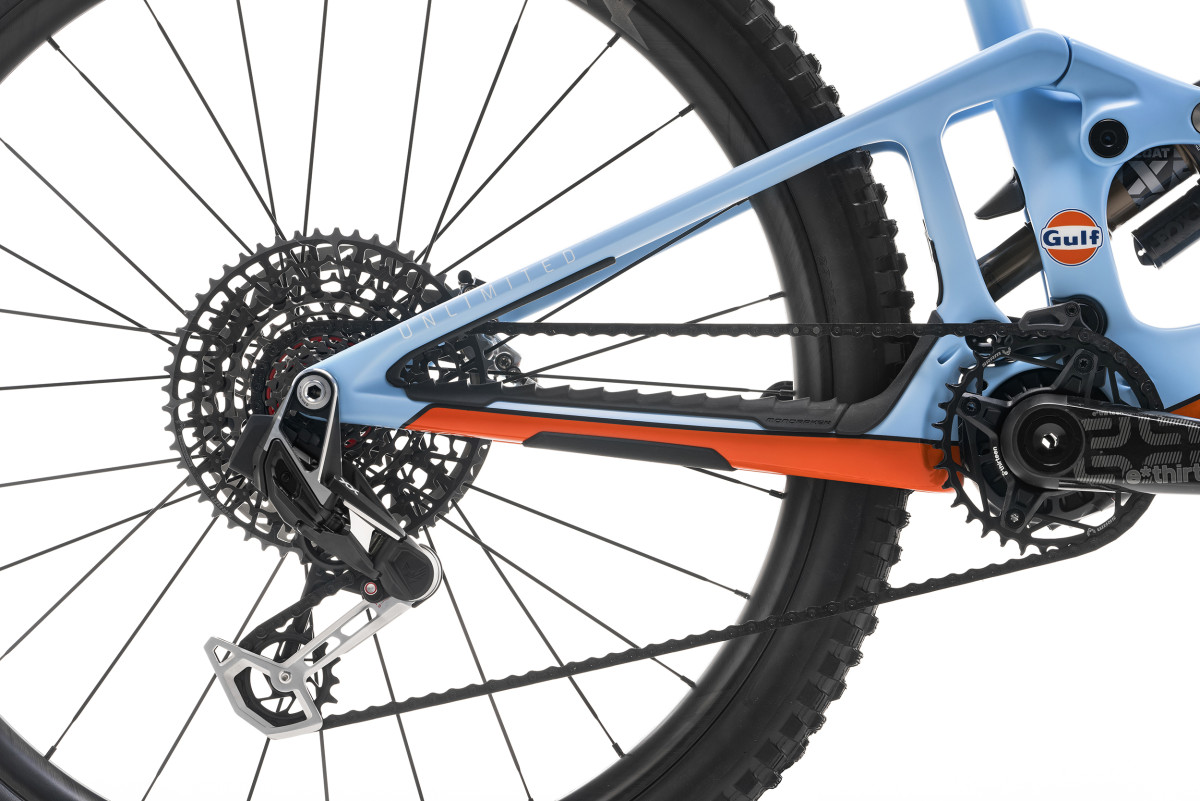

    Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    casette

    Casette

    Sram XG-1295, 10-52T, T-Type, 12s

  • others

    Others

    Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

    weight

    Weight

    17.9 kg - Max System Weight 150kg

  • display

    Display

    TQ HPR display V01

    motor

    Motor

    TQ HPR-50

  • battery

    Battery

    TQ HPR-50 360Wh integrated and removable

Geometry

mm / inch

Frame size
S M L XL
A Seattube length 380mm 14.96" 420mm 16.54" 450mm 17.72" 490mm 19.29"
B Toptube length 595mm 23.43" 615mm 24.21" 640mm 25.20" 660mm 25.98"
C Bottom bracket drop -25mm -0.98" -25mm -0.98" -25mm -0.98" -25mm -0.98"
D Bottom bracket height 348mm 13.70" 348mm 13.70" 348mm 13.70" 348mm 13.70"
E Chainstay length 450mm 17.72" 450mm 17.72" 450mm 17.72" 450mm 17.72"
F Seat tube angle 72.6º 72.6º 72.6º 72.6º
G Effective seattube angle 76.5° 76.5° 76.5° 76.5°
H Headtube angle 64.5º 64.5º 64.5º 64.5º
I Fork Offset 44mm 1.73" 44mm 1.73" 44mm 1.73" 44mm 1.73"
J Wheelbase 1235mm 48.62" 1255mm 49.41" 1275mm 50.20" 1295mm 50.98"
K Headtube length 110mm 4.33" 110mm 4.33" 130mm 5.12" 140mm 5.51"
L Reach 450mm 17.72" 470mm 18.50" 495mm 19.49" 515mm 20.28"
M Stack 626mm 24.65" 626mm 24.65" 642mm 25.28" 650 mm 25.59"
