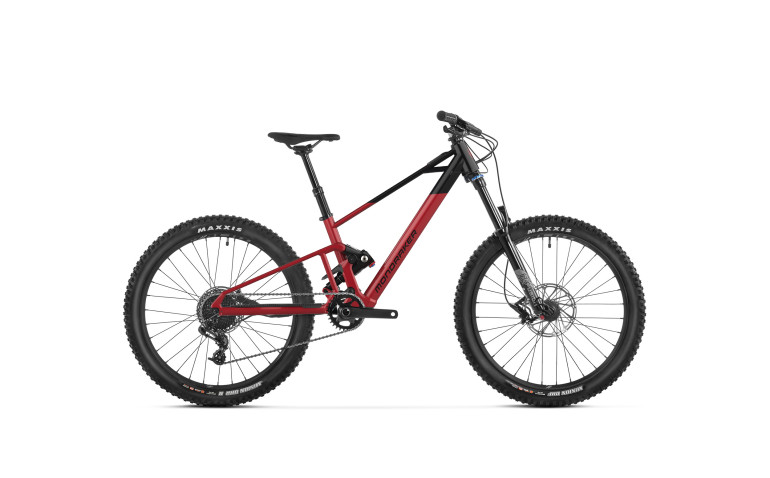

F-PLAY 24

Cuadro

F-Play 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible

Tallas

One size: 300mm

Amortiguador

X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

Ajuste del amortiguador

A-Tune light compression

Horquilla

X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Dirección

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Potencia

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Manillar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Puños

Onoff Beehive, 1lock-on, 135mm

Tija

X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm

Sillin

SDG Fly JR

Freno delantero

Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

Freno trasero

Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

Manetas de freno

Shimano MT501, servo wave, alloy lever

Llantas

MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Radios

CN round stainless steel

Buje delantero

DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Buje trasero

Mahle-Ebikemotion X-30, HG freehub

Neumático delantero

Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

Neumático trasero

Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead

Bielas

Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm

Platos

30T, steel

Eje de pedalier

Prowheel PW-MBB73 73mm

Pedales

SDG Slater JR

Cadena

Sram S100 Eagle, 12s, PowerLock

Cambio - trasero

Sram S100 Eagle,12s

Mandos - pulsadores de cambio

Sram Trigger S100, 12s, X-Actuation

Piñones

Sram PG-1210, 11-50T, 12s

Patilla de cambio

Mondraker M077

Display

iWoc ONE Head Unit

Motor

Mahle X-30, Drive Unit

Bateria

Mahle IX250Wh
