CRAFTY RR SL
CRAFTY RR SL
CRAFTY RR SL
CRAFTY RR SL
Bikes CRAFTY XR CRAFTY RR S CRAFTY RR CRAFTY R CRAFTY RACE
Frames CRAFTY RR SL
Bike Frame
Sizes:
S M ML L XL
29"
160mm
150mm
Bosch CX
Carbon
  • Rear shock · Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork · Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
  • Rims · e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
  • Rear derrailleur · Sram XX Eagle AXS, T-Type, 12s
  • Battery · Bosch Powertube 600Wh
Compare bike

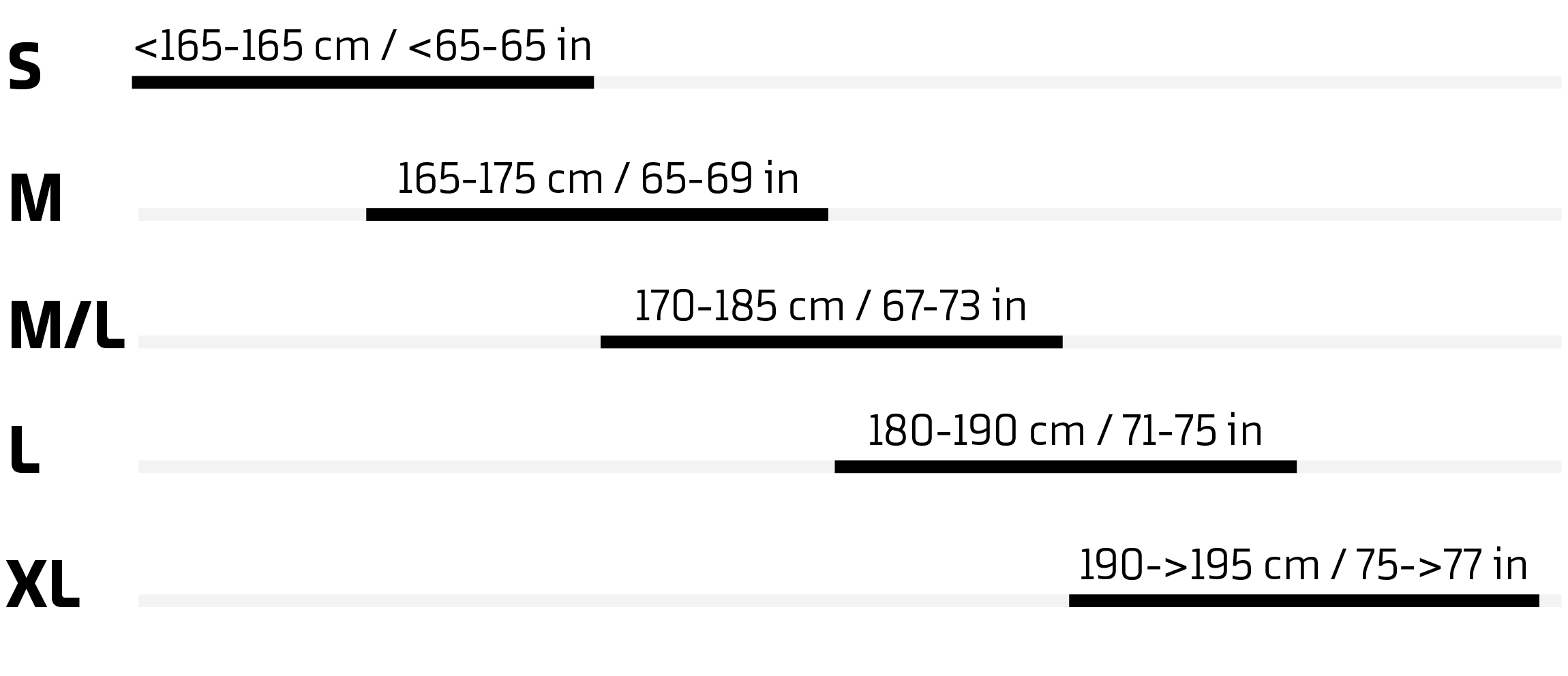

Size guide
CRAFTY RR SL

CRAFTY RR SL

ENDURO

Bikes CRAFTY XR CRAFTY RR S CRAFTY RR CRAFTY R CRAFTY RACE
Frames CRAFTY RR SL
Information Components Geometry Gallery Downloads
$11,999
SHOP FINDER

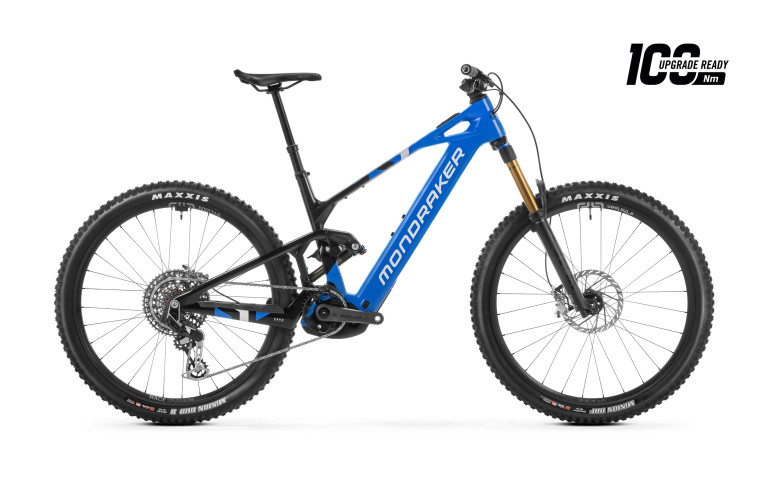

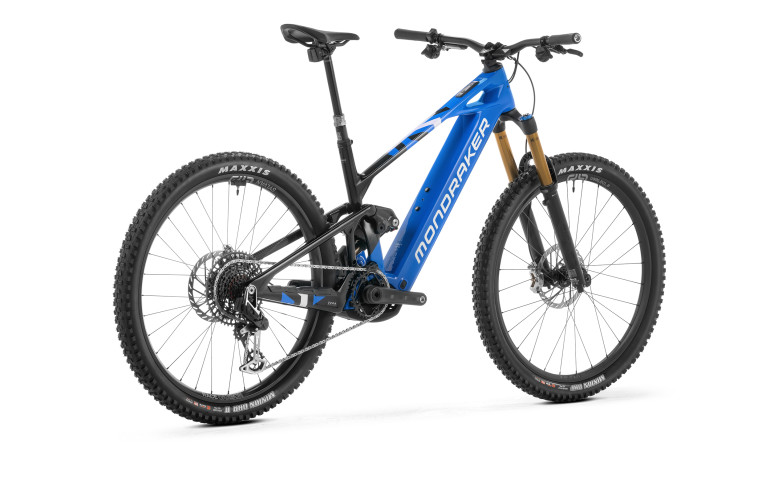

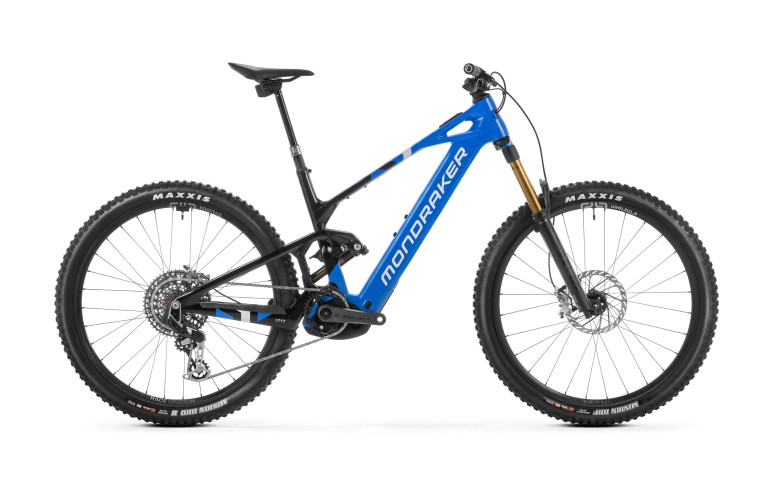

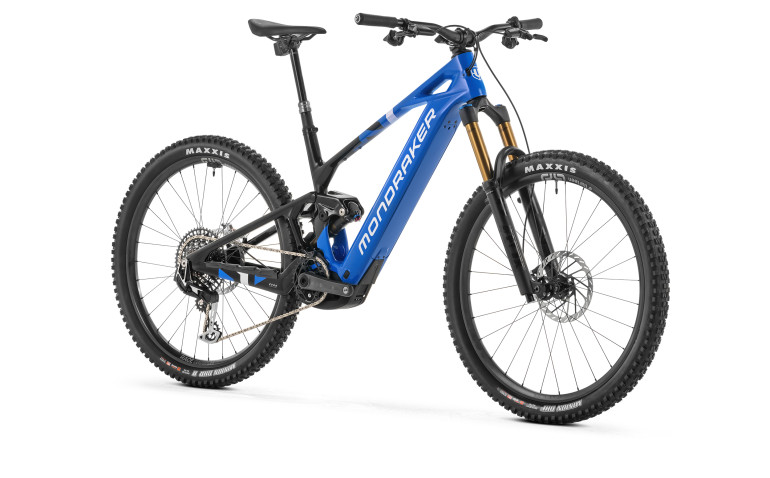

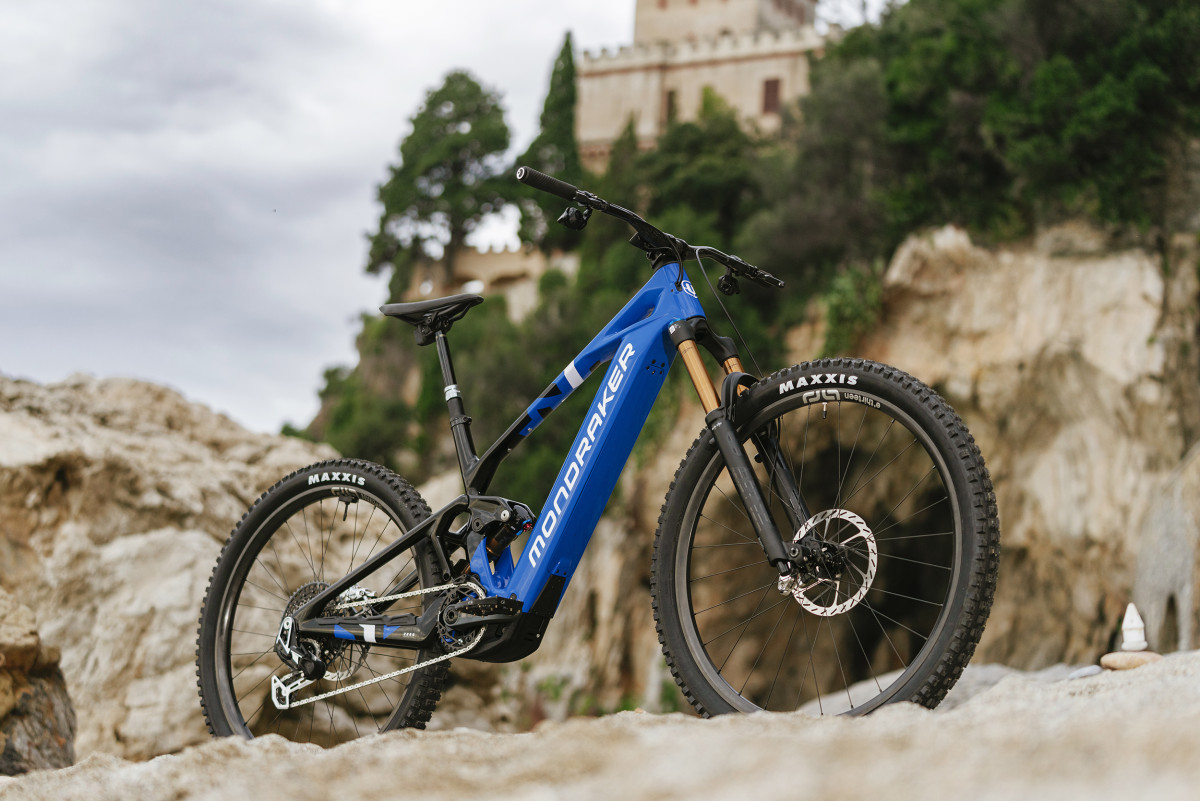

CRAFTY CARBON RR SL: CRÈME DE LA CRÈME IN MONDRAKER BLUE

The top-of-the-range Crafty Carbon RR SL just had to come in the colour that best defines us as a brand: Carrera Blue (with a touch of Black and Crystal White). This standout paint scheme shines on the best dressed Crafty Carbon of all. The lightest build of the five, the RR SL comes with a Kashima coated Fox 36 29 Float GRIPX2 Factory fork, SRAM Reverb AXS dropper post and 2.5” tyres on e*thirteen Sylvan Race Carbon IW30 carbon fibre wheels (30mm internal width). Fitted with Bosch’s 600Wh internal removable battery, it’s 100% compatible with the optional Powermore 250Wh range extender if needed.

WE’VE HIT THE 100NM MILESTONE

Some barriers are made to be broken, and ebike motors reaching 100Nm of torque has long been one of them. With this latest update, all Bosch CX Gen 5 motors (type BDU 385Y) will see the current 600W and 85Nm of torque taken up to 750W and 100Nm, and pedal assistance taken up to 400%.

  1. 29
  2. ZERO SUSPENSION SYSTEM
  3. FORWARD GEOMETRY
  4. STEALTH CARBON
  5. BOSCH SMART SYSTEM

Components

Technical specs

  • frame

    Frame

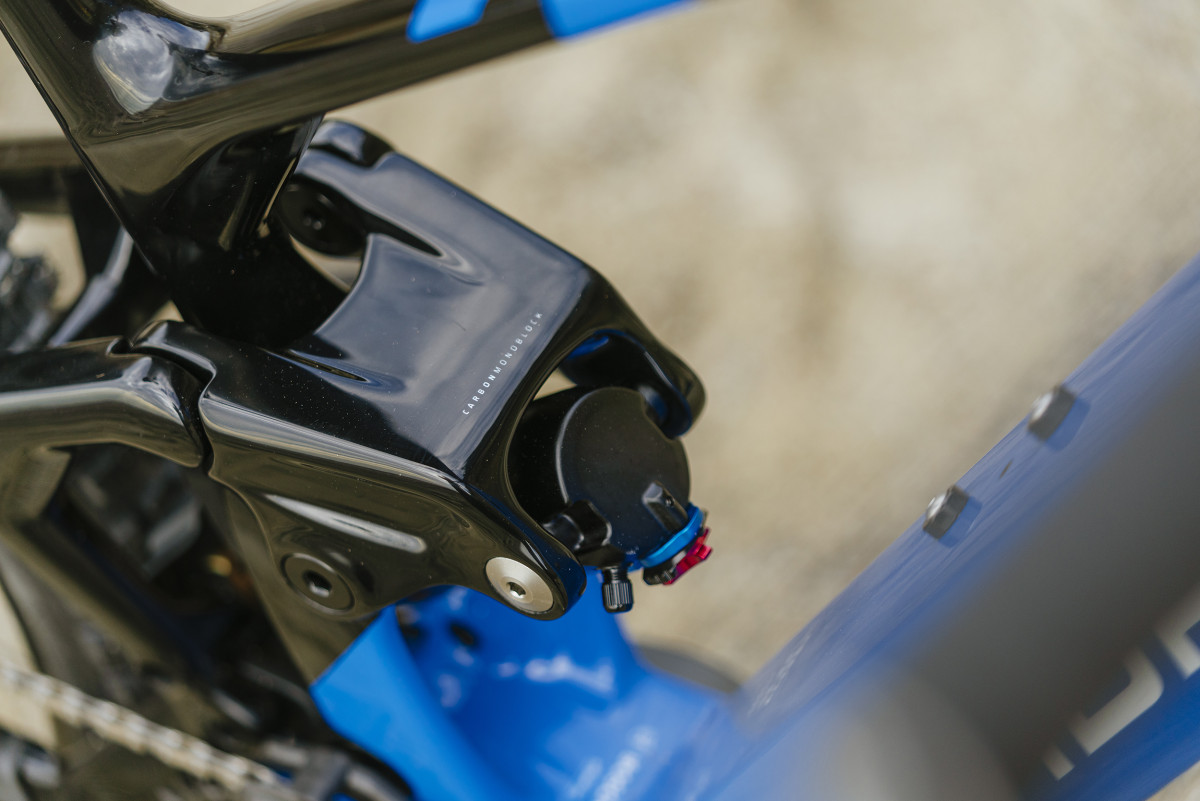

    Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer

  • fork

    Fork

    Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    seatpost

    Seatpost

    RockShox Reverb Stealth AXS, diameter 31.6mm S size: 390x125mm, M size: 440x150mm, ML size: 480x170mm, L size: 480x170mm, XL size: 480x170mm

  • saddle

    Saddle

    FIZIK Vento Argo 00 Carbon 150mm

    front brake

    Front brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

  • rims

    Rims

    e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes

    spokes

    Spokes

    e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

  • front hub

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    rear hub

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 600TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.5 tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead

  • crankset

    Crankset

    e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm

    rings

    Rings

    Sram T-Type 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram XX Eagle T-Type, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram XX Eagle AXS, T-Type, 12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod MMX, 12s

    casette

    Casette

    Sram XS-1297, 10-52T, T-Type, 12s

  • weight

    Weight

    46,5 lbs

    display

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller

  • motor

    Motor

    New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)

    battery

    Battery

    Bosch Powertube 600Wh

Read more Read less

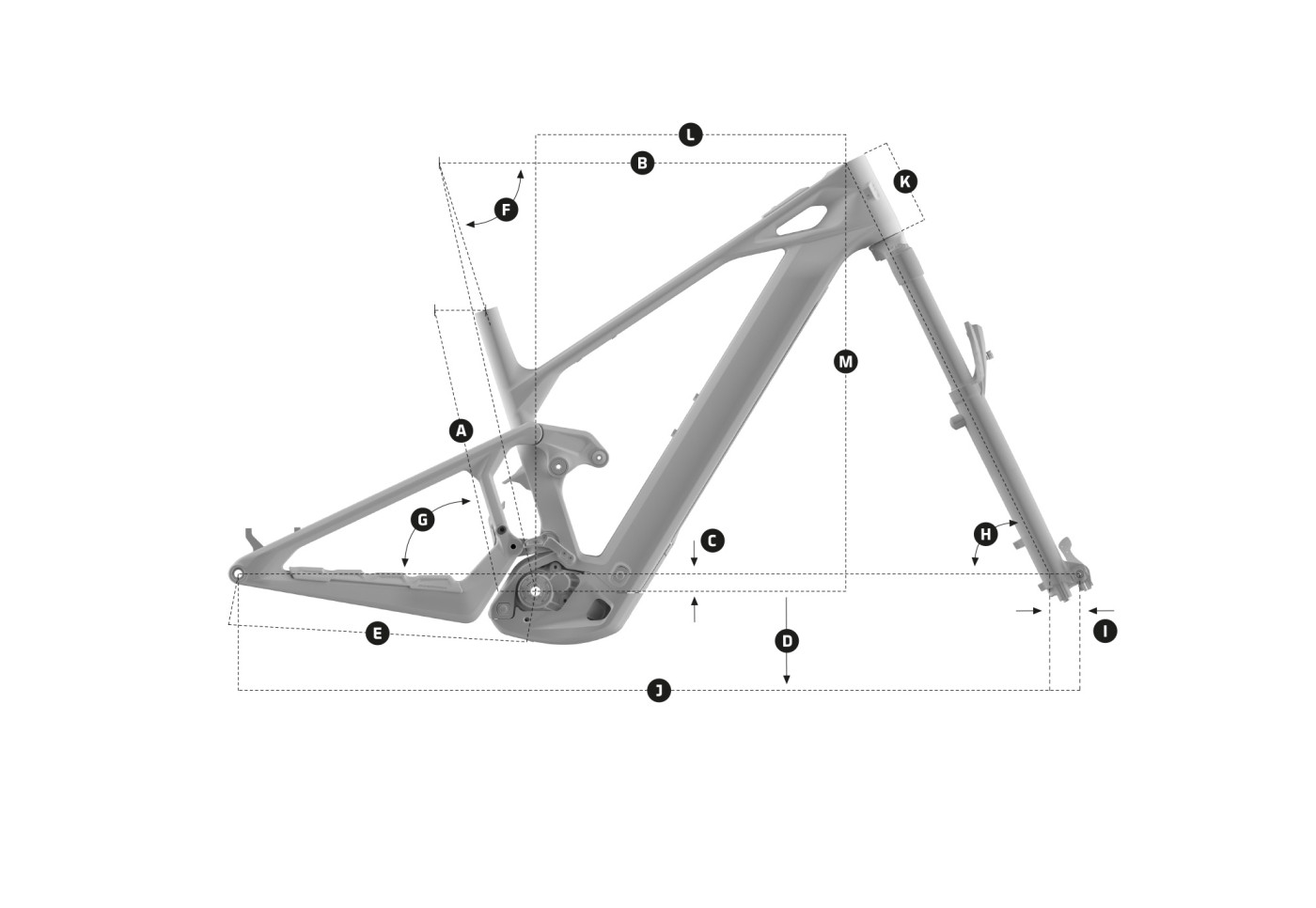

Geometry

mm / inch

Frame size
S [Std/Low] M [Std/Low] M/L [Std/Low] L [Std/Low] XL [Std/Low]
A Seattube length 380 mm 14.96" 410 mm 16.14" 435 mm 17.13" 460 mm 18.11" 490 mm 19.29"
B Toptube length 581 mm/582 mm 22.87" 596 mm/597 mm 23.46" 618 mm/619 mm 24.33" 640 mm/641 mm 25.20" 662 mm/663 mm 26.06"
C Bottom bracket drop -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98" -25 mm/-30 mm -0.98"
D Bottom bracket height 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78" 350 mm/345 mm 13.78"
E Chainstay length 455 mm/456 mm 17.91" 455 mm/456 mm 17.91" 455 mm/456 mm 17.91" 465 mm/466 mm 18.31" 465 mm/466 mm 18.31"
F Seat tube angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65°
G Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6°
H Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
I Fork Offset 44 mm 1.73" 44 mm 1.73" 44 mm/44 mm 1.73" 44 mm 1.73" 44 mm/44 mm 1.73"
J Wheelbase 1240 mm/1241 mm 48.82" 1255 mm/1256 mm 49.41" 1280 mm/1281 mm 50.39" 1314 mm/1315 mm 51.73" 1338 mm/1339 mm 52.68"
K Headtube length 120 mm 4.72" 120 mm 4.72" 130 mm 5.12" 140 mm 5.51" 150 mm 5.91"
L Reach 445 mm/441 mm 17.52" 460 mm/456 mm 18.11" 480 mm/476 mm 18.90" 500 mm/496 mm 19.69" 520 mm/516 mm 20.47"
M Stack 638 mm/641 mm 25.12" 638 mm/641 mm 25.12" 647 mm/650 mm 25.47" 656 mm/659 mm 25.83" 665 mm/668 mm 26.18"
Read more Read less
Material de descarga
Spare parts Suspension setup Manual
