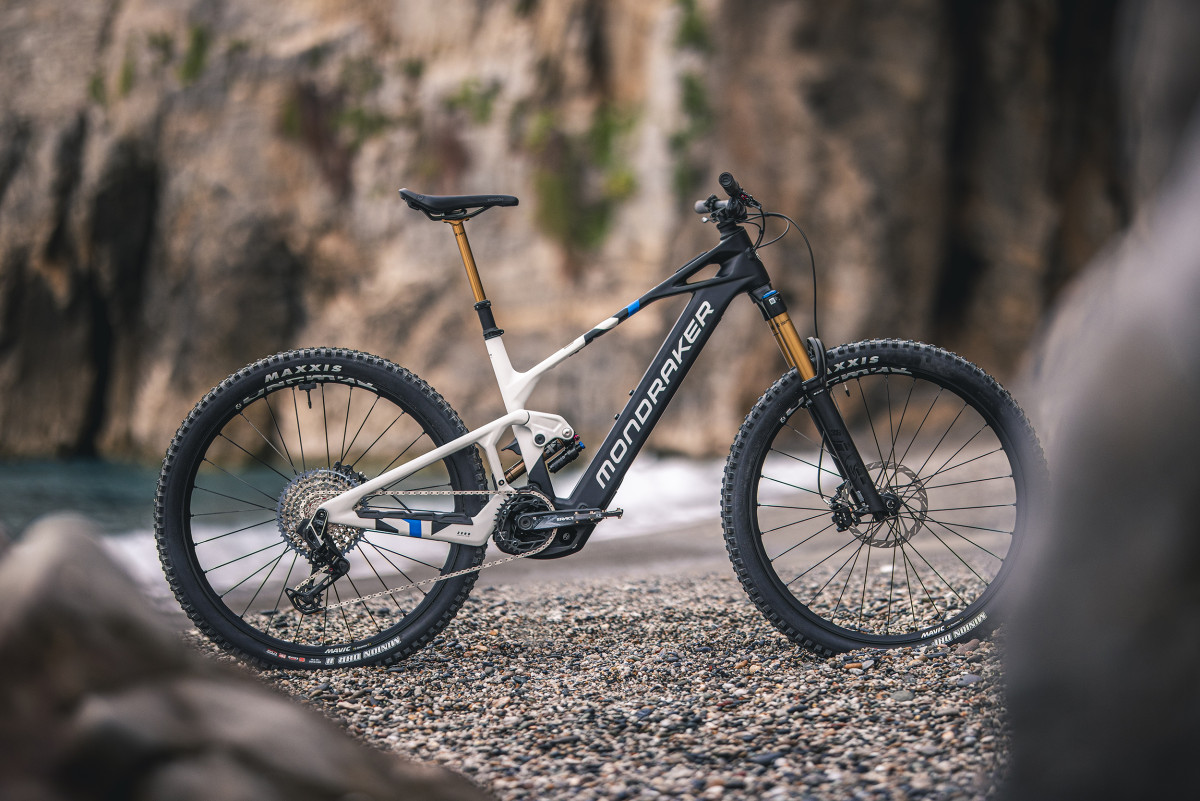

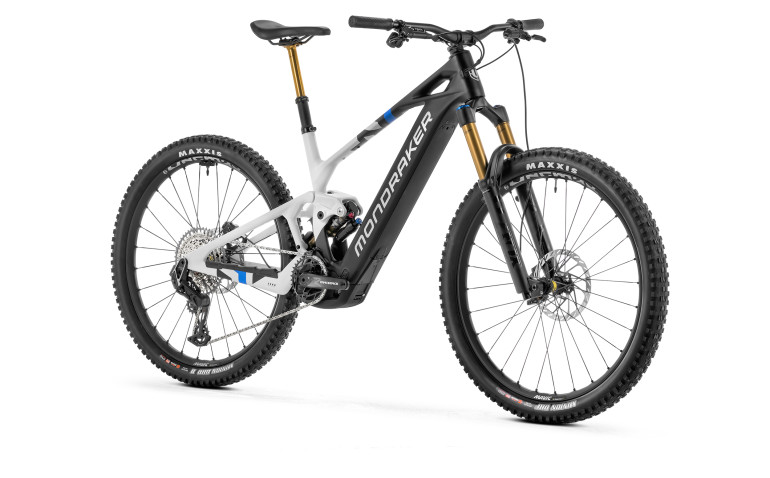

CRAFTY RR SL
29"
160mm
150mm
BOSCH CX
Carbon
CRAFTY RR SL

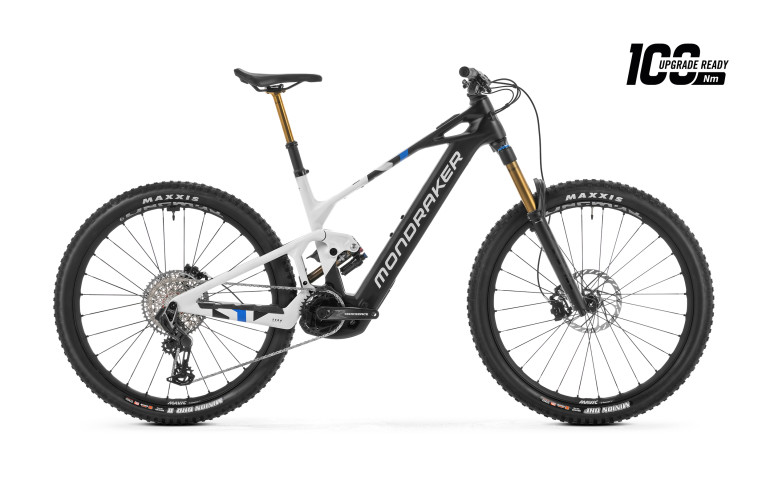

WE’VE HIT THE 100NM MILESTONE
Some barriers are made to be broken, and ebike motors reaching 100Nm of torque has long been one of them. With this latest update, all Bosch CX Gen 5 motors (type BDU 385Y) will see the current 600W and 85Nm of torque taken up to 750W and 100Nm, and pedal assistance taken up to 400%.
Johannes Arens
Crafty Carbon RR S Super Bike für große Fahrer. Mit meinen 2m fühle ich mich auf dem Rad sehr wohl und genieße die ersten Touren & Trails. 👍🏻
2025 July
Components
Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

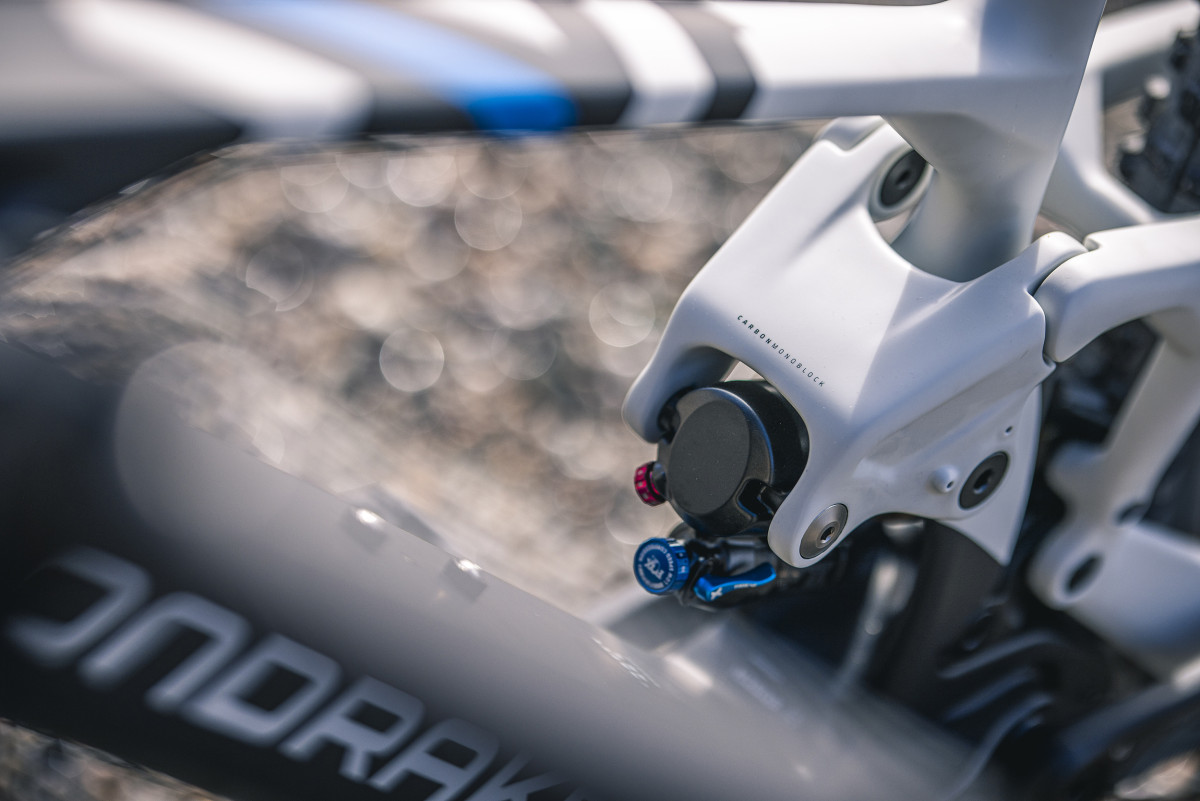

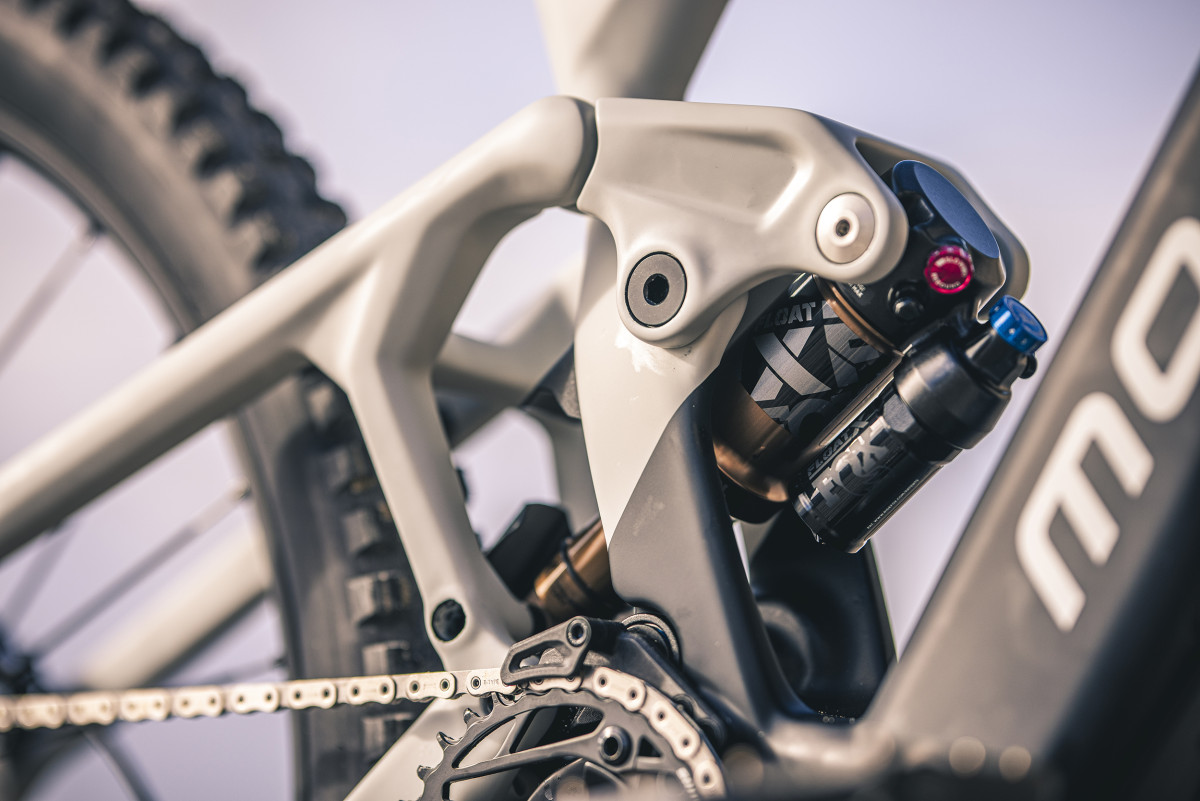

Rear shock
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

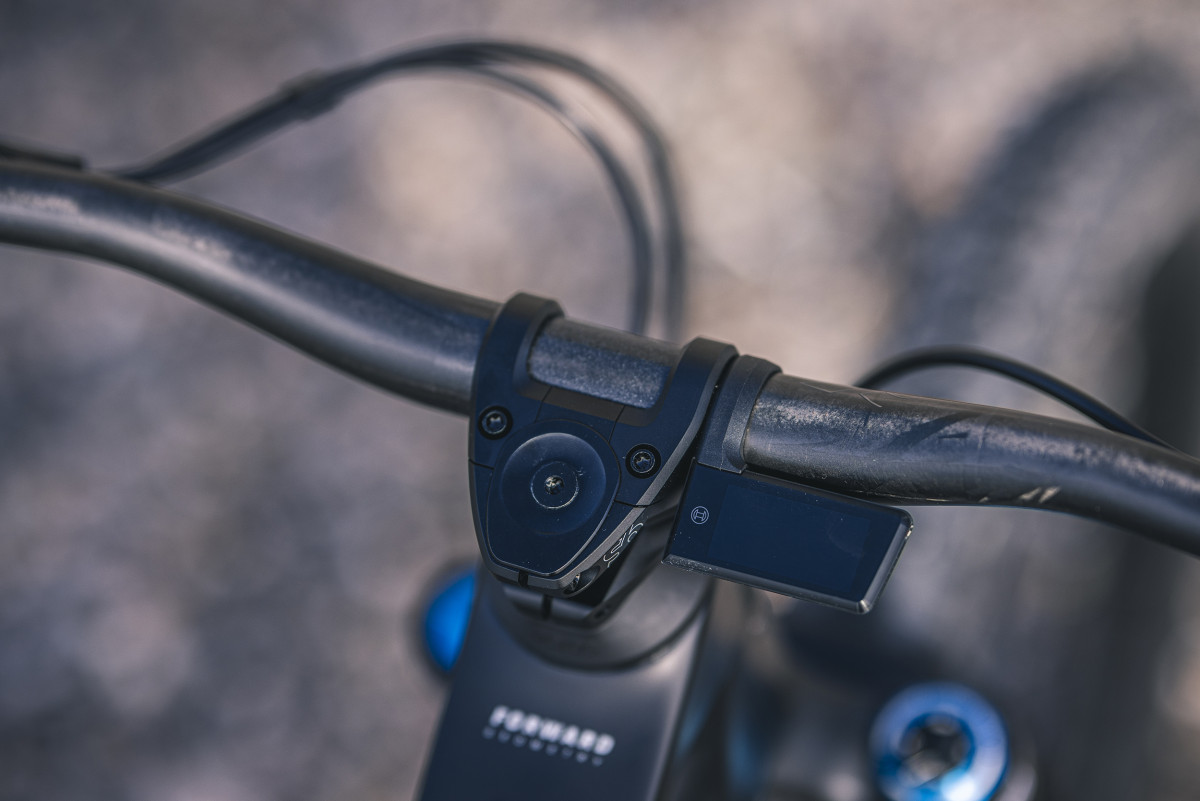

Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm
Saddle
Ergon SM-10
Front brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

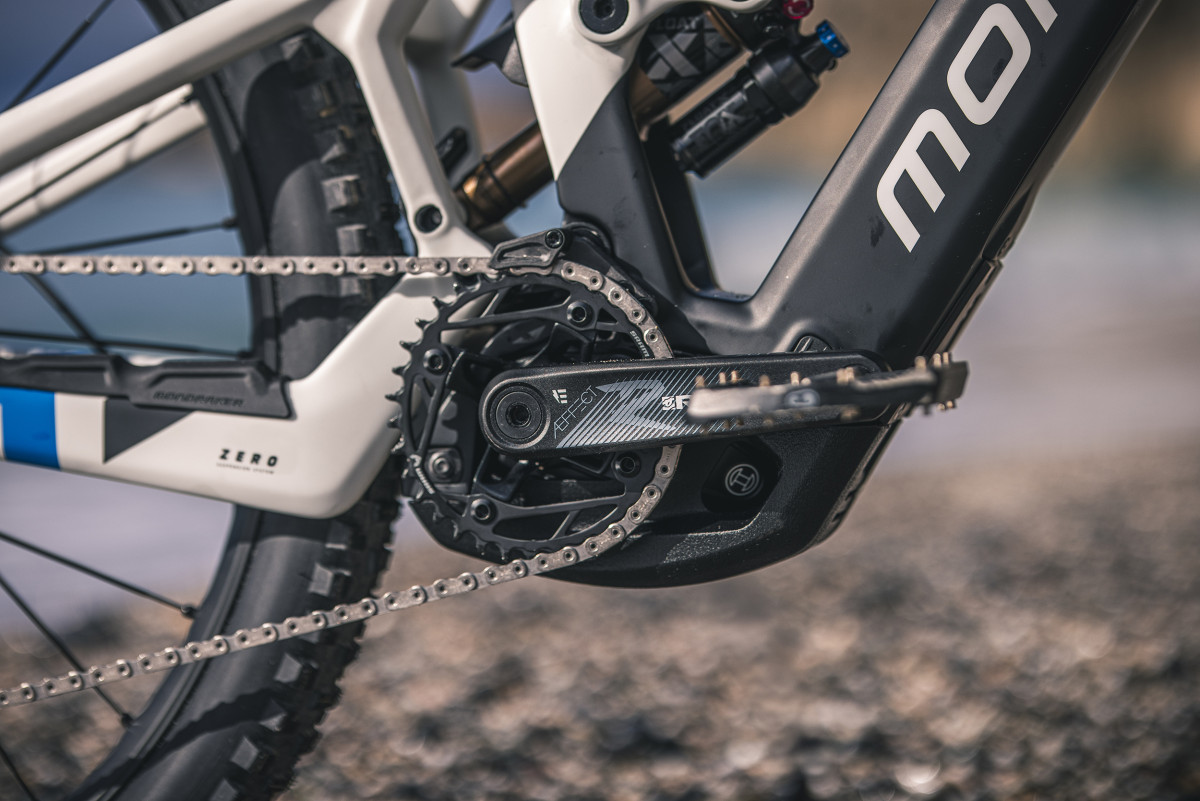

Crankset
Race Face Aeffect-R ebike, 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram X0 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
49,8 lbs
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 600Wh

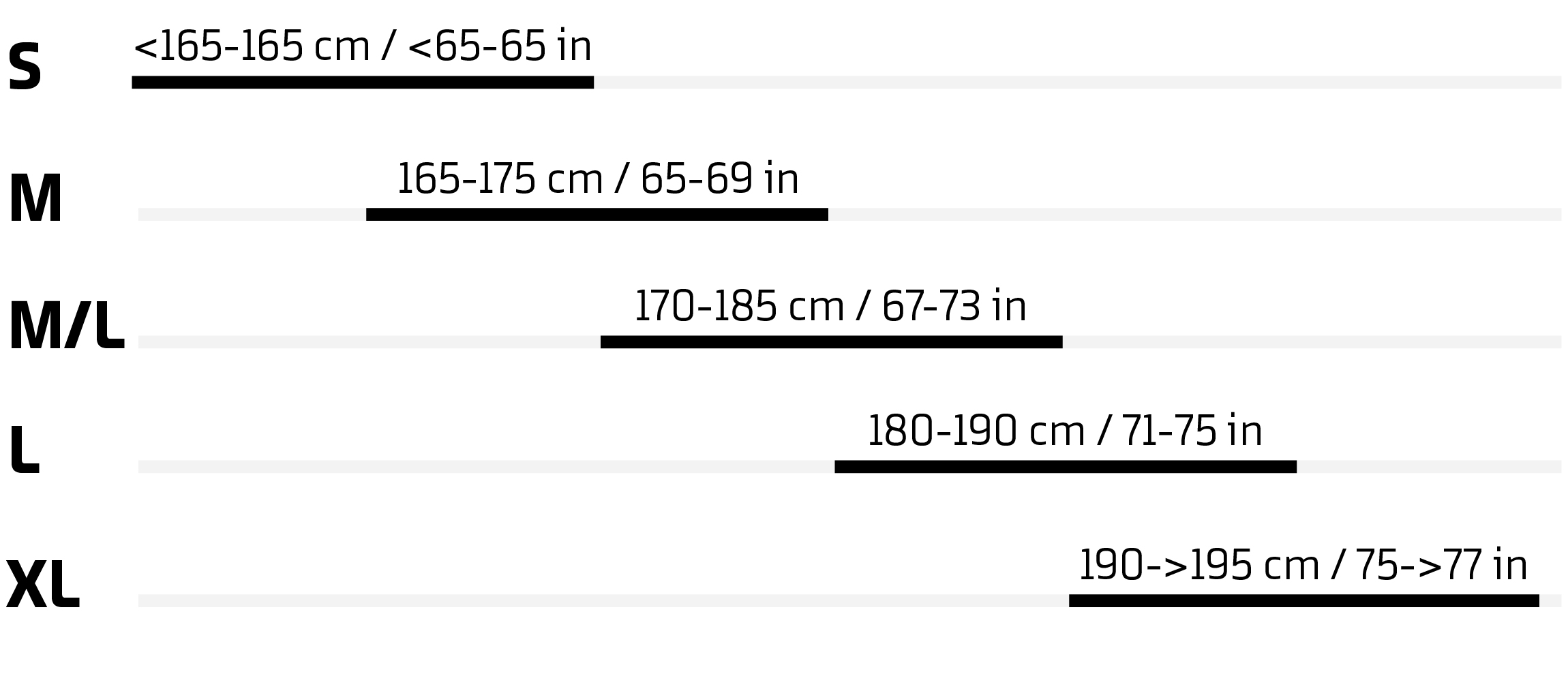

This size table is only an estimation, the optimum frame size depends on your personal preference and riding style
|

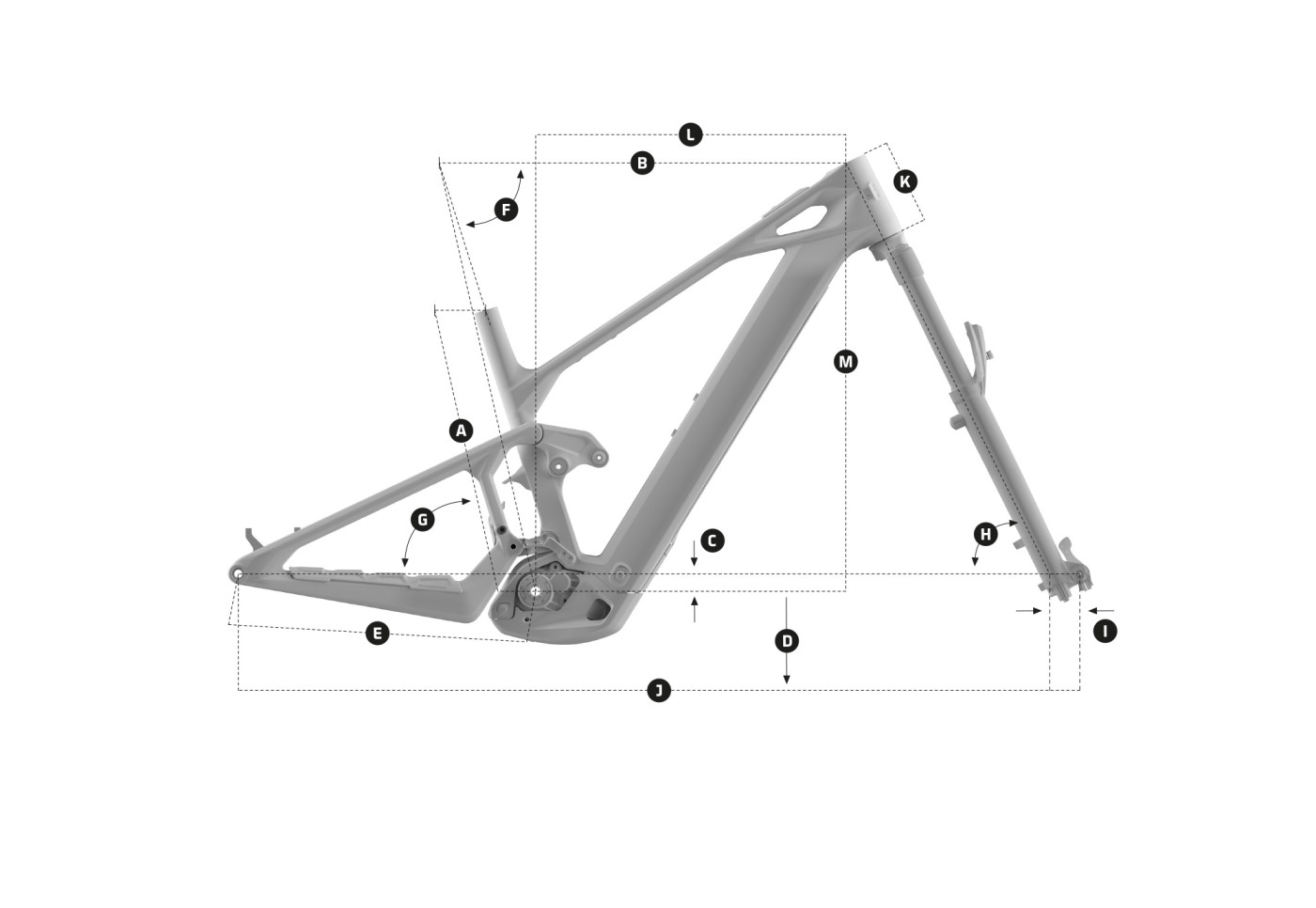

Frame size
|
S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm 14.96" | 410 mm 16.14" | 435 mm 17.13" | 460 mm 18.11" | 490 mm 19.29" |
| B | Toptube length | 581 mm/582 mm 22.87" | 596 mm/597 mm 23.46" | 618 mm/619 mm 24.33" | 640 mm/641 mm 25.20" | 662 mm/663 mm 26.06" |
| C | Bottom bracket drop | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" | -25 mm/-30 mm -0.98" |
| D | Bottom bracket height | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" | 350 mm/345 mm 13.78" |
| E | Chainstay length | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 455 mm/456 mm 17.91" | 465 mm/466 mm 18.31" | 465 mm/466 mm 18.31" |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" | 44 mm 1.73" | 44 mm/44 mm 1.73" |
| J | Wheelbase | 1240 mm/1241 mm 48.82" | 1255 mm/1256 mm 49.41" | 1280 mm/1281 mm 50.39" | 1314 mm/1315 mm 51.73" | 1338 mm/1339 mm 52.68" |
| K | Headtube length | 120 mm 4.72" | 120 mm 4.72" | 130 mm 5.12" | 140 mm 5.51" | 150 mm 5.91" |
| L | Reach | 445 mm/441 mm 17.52" | 460 mm/456 mm 18.11" | 480 mm/476 mm 18.90" | 500 mm/496 mm 19.69" | 520 mm/516 mm 20.47" |
| M | Stack | 638 mm/641 mm 25.12" | 638 mm/641 mm 25.12" | 647 mm/650 mm 25.47" | 656 mm/659 mm 25.83" | 665 mm/668 mm 26.18" |
