Components
Technical specs
-

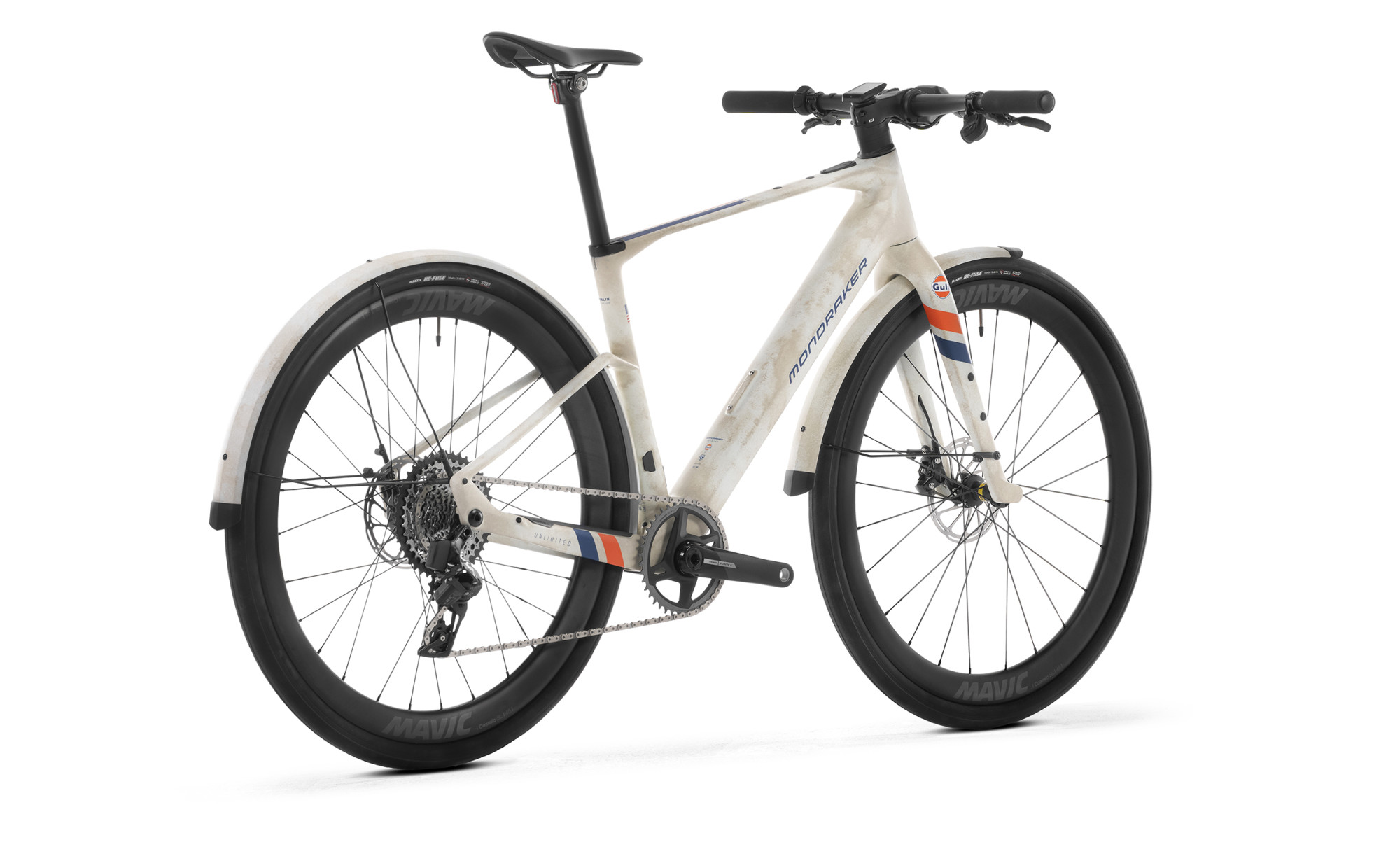

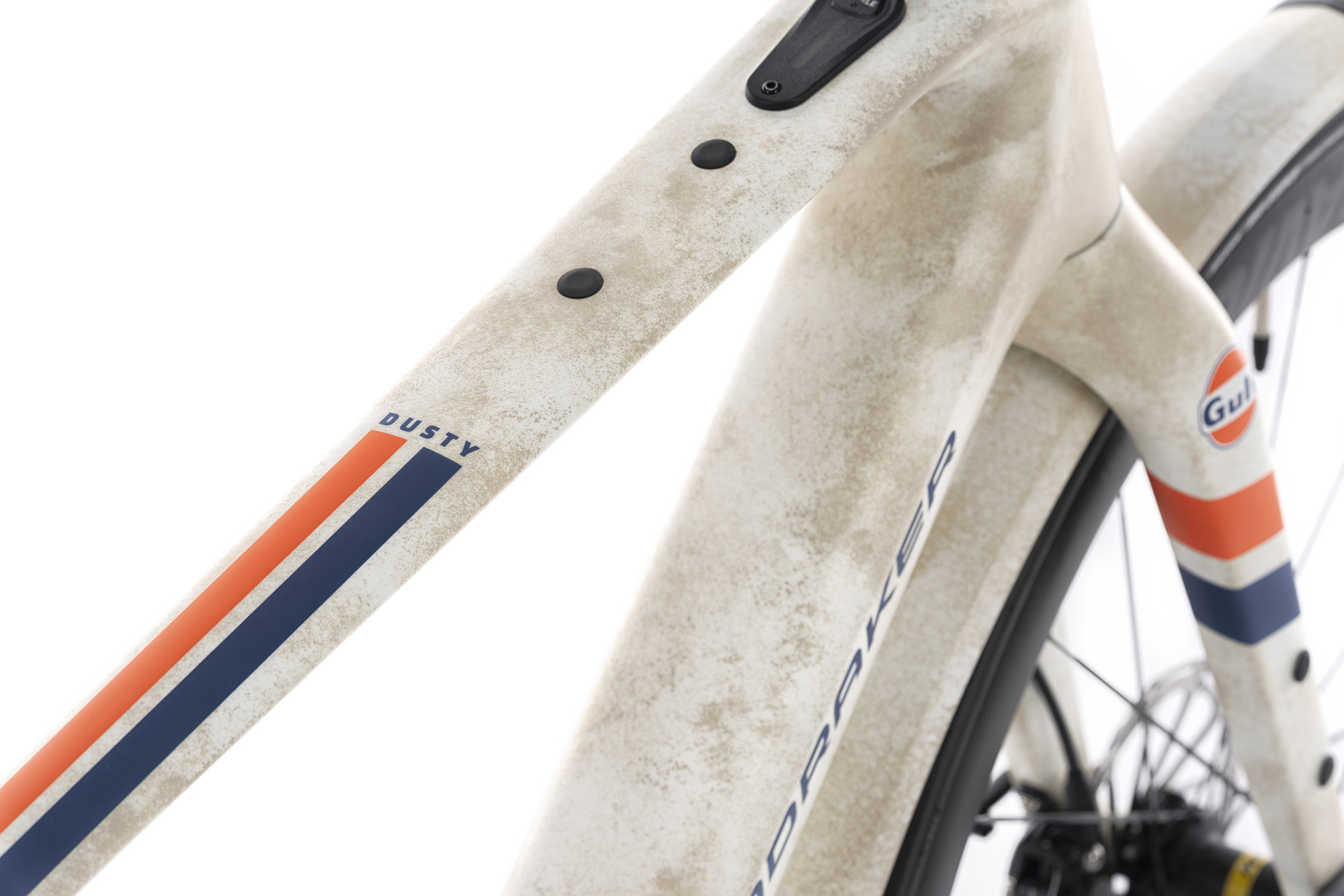

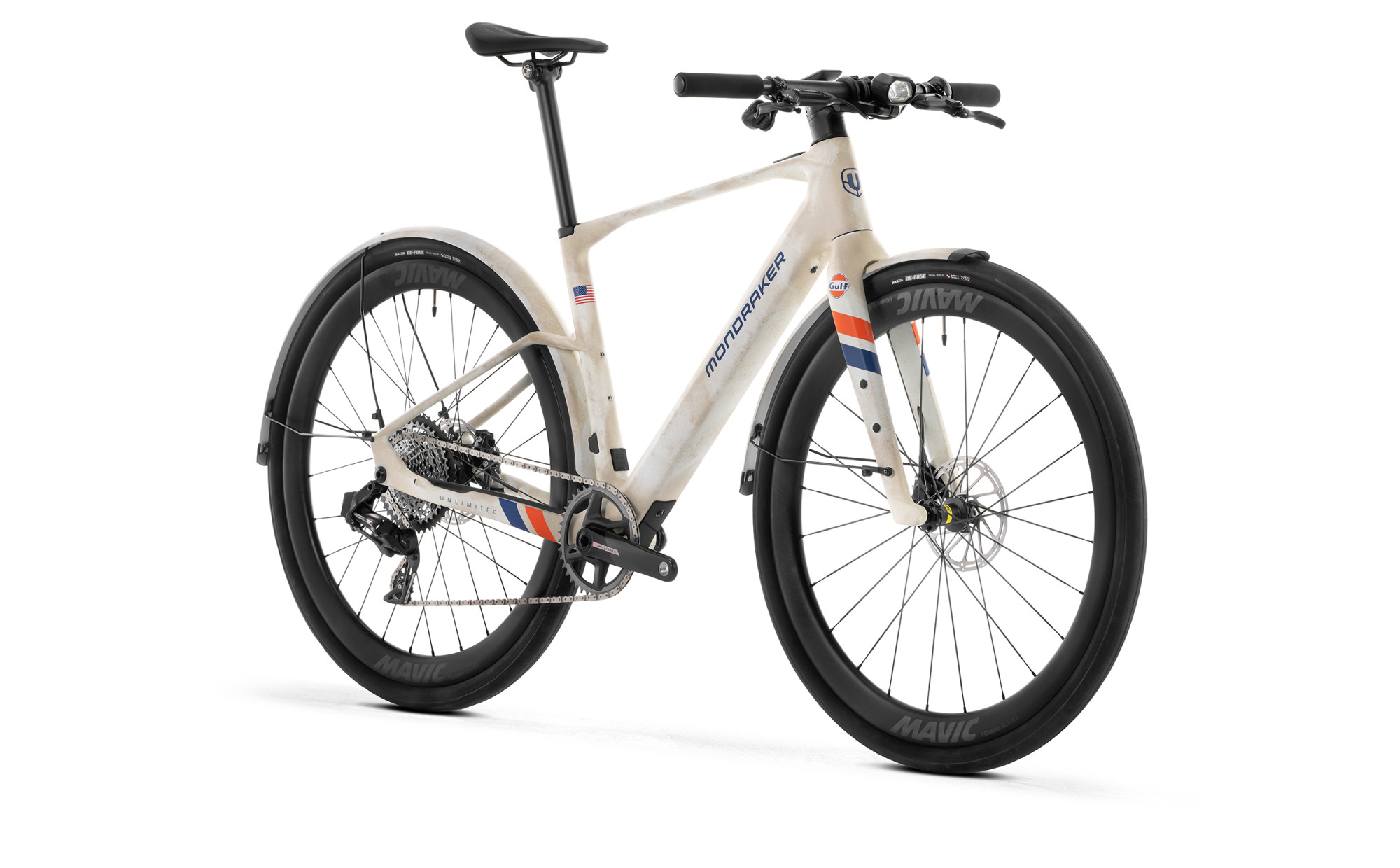

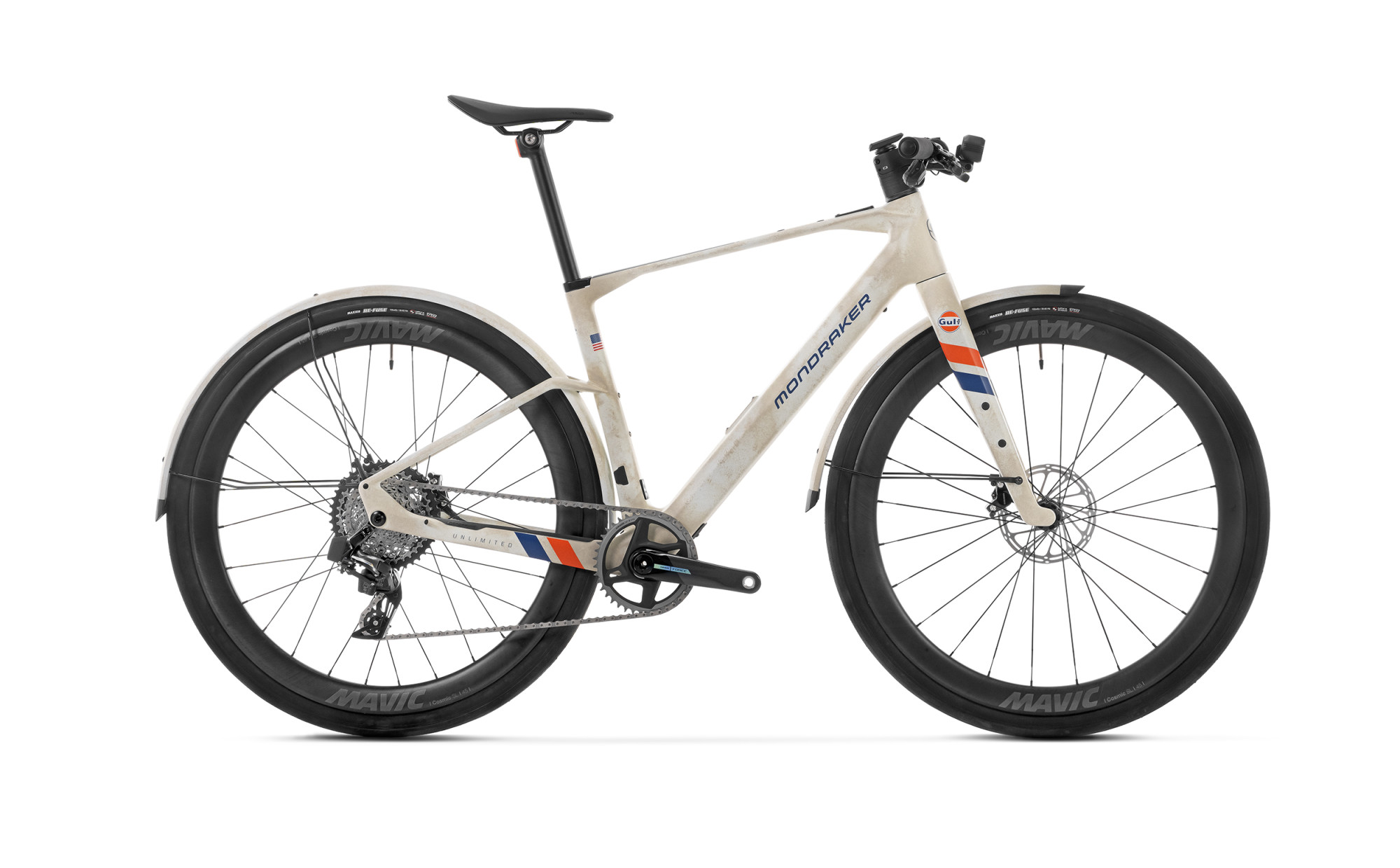

Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
-
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
-
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, L size: 80mm, XL size: 90mm

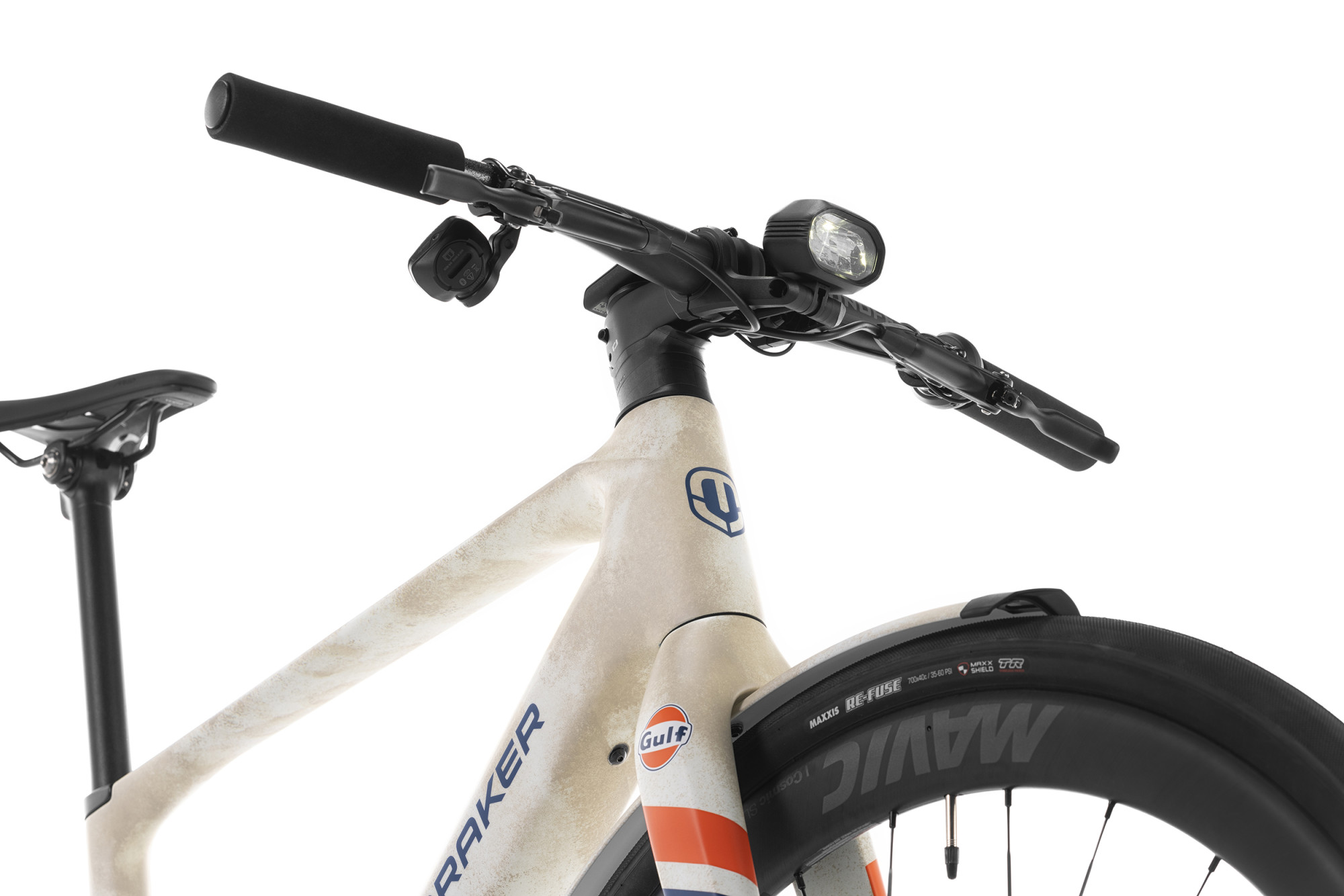

Handlebar
OnOff S9 Urban Carbon rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore
-
Grips
Onoff Foam lightweight 135mm
Seatpost
Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm
-
Saddle
FIZIK Vento Argo X5 140mm
Front brake
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
-
Rear brake
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level Silver, tools-free reach adjust, lever pivot bearings
-
Rims
Mavic Cosmic SL 45, UST, 45mm height, 23mm internal width, hookless, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
-
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mahle X20 Drive Unit, XDR freehub
-
Front tire
Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
Rear tire
Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
-

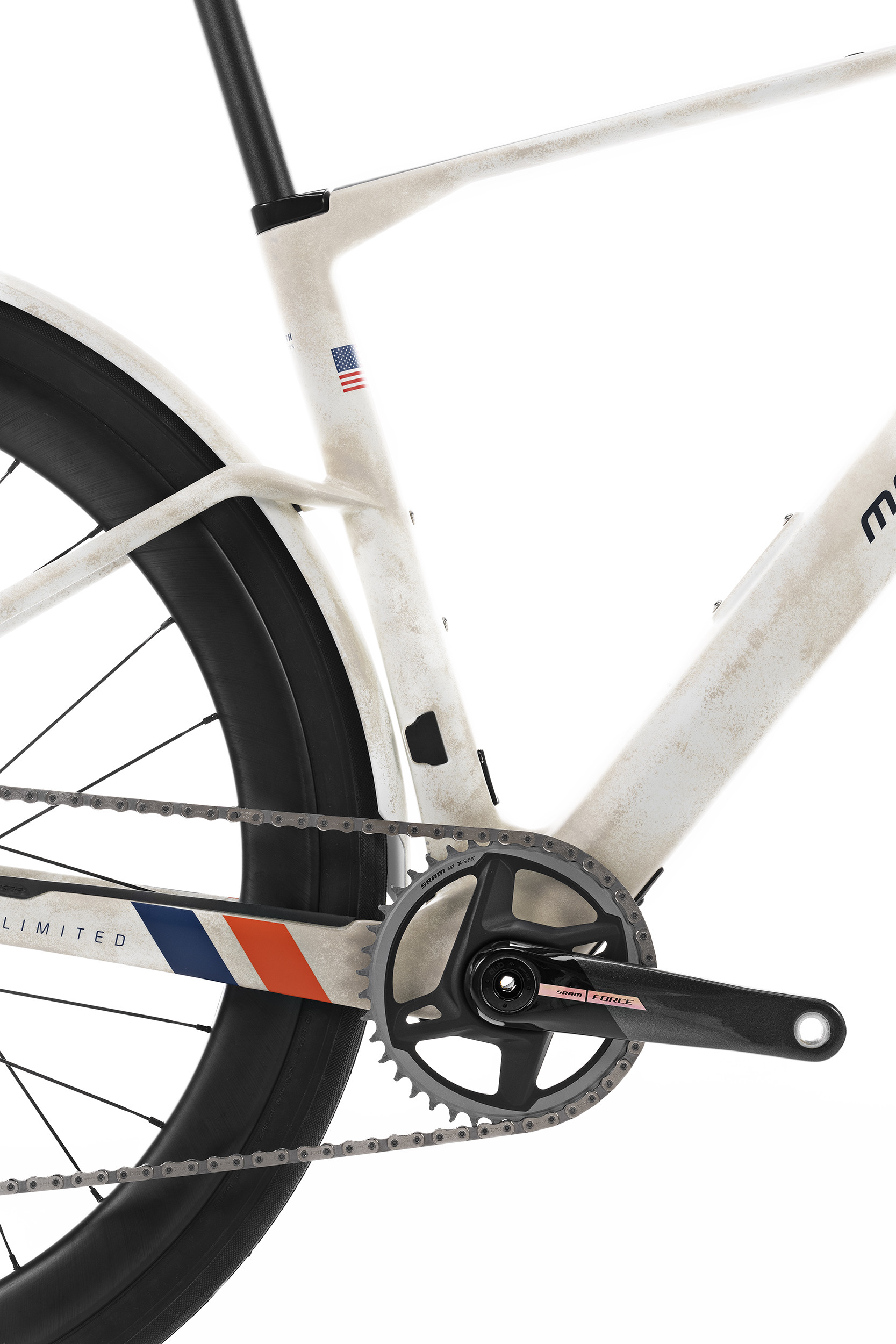

Crankset
SRAM Force 1 Carbon Wide, S: 170mm, M: 170mm, L: 172,5mm, XL: 175mm.
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
-
Bottom bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
Sram Rival, 12s, Powerlock
-
Rear derrailleur
Sram Force XPLR Etap AXS, 12s
Shift levers
Sram Eagle AXS Pod, 12s
-
Casette
Sram XG-1271, 10-44T, 12s
Derailleur hanger
Mondraker M076
-
Others
Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Custom paint fenders, Optional external battery: Mahle e185Wh
Display
Pulsar One Wireless
-
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
