DUSTY R
DUSTY R
DUSTY R
Bikes DUSTY RR DUSTY S 580 DUSTY S 580 FLAT
Sizes:
S M ML L XL
700
TQ HPR60
580 Wh
Carbon
  • Rims · Mavic Allroad S Carbon, UST,42mm height, 25mm internal width, 24 spokes
  • Crankset · E.13 Piedmont Core E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm
  • Rear derrailleur · Sram GX Eagle AXS T-Type,12s
  • Motor · TQ HPR-60
  • Battery · TQ HPR Battery V05 580Wh
Compare bike

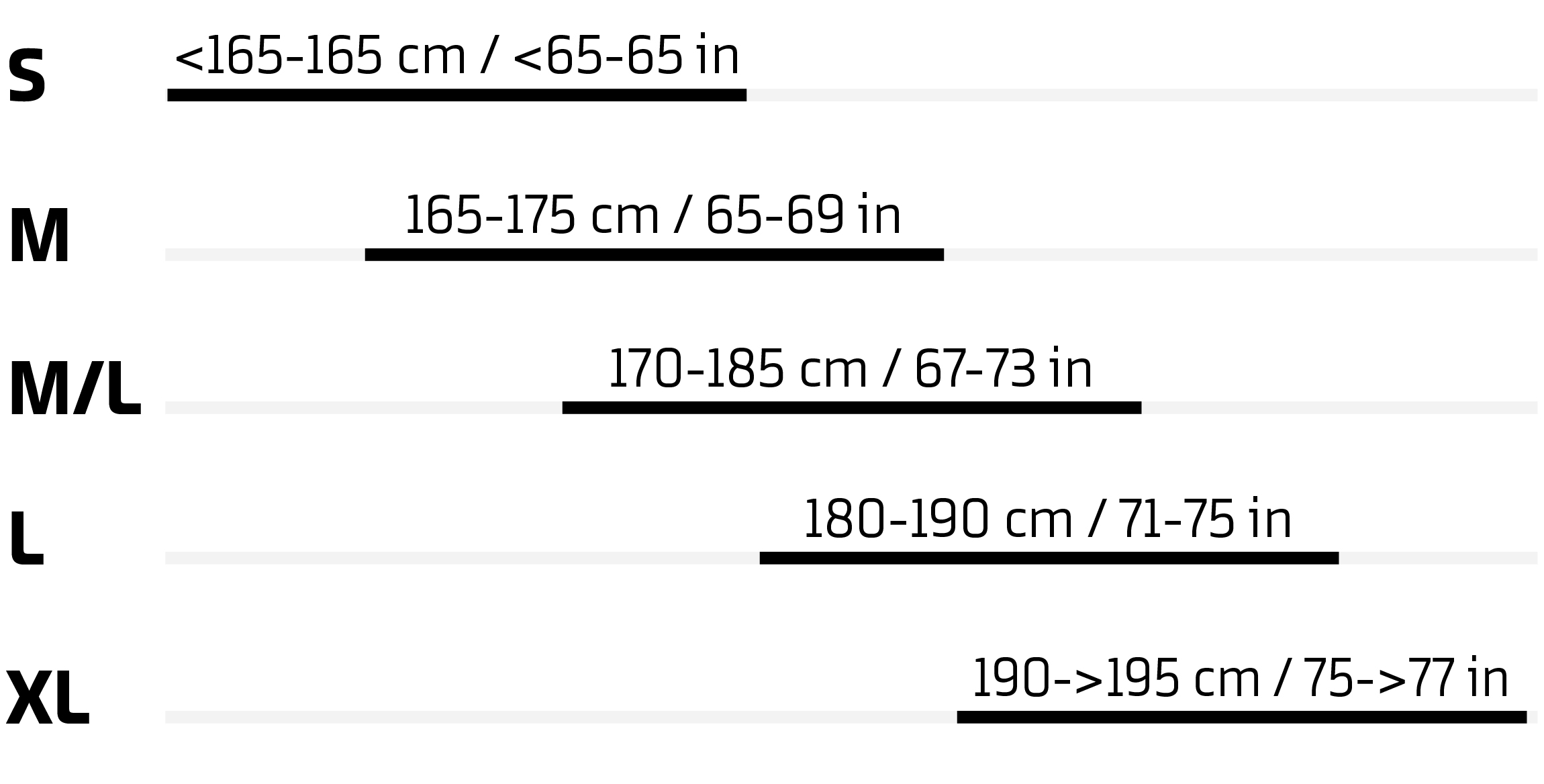

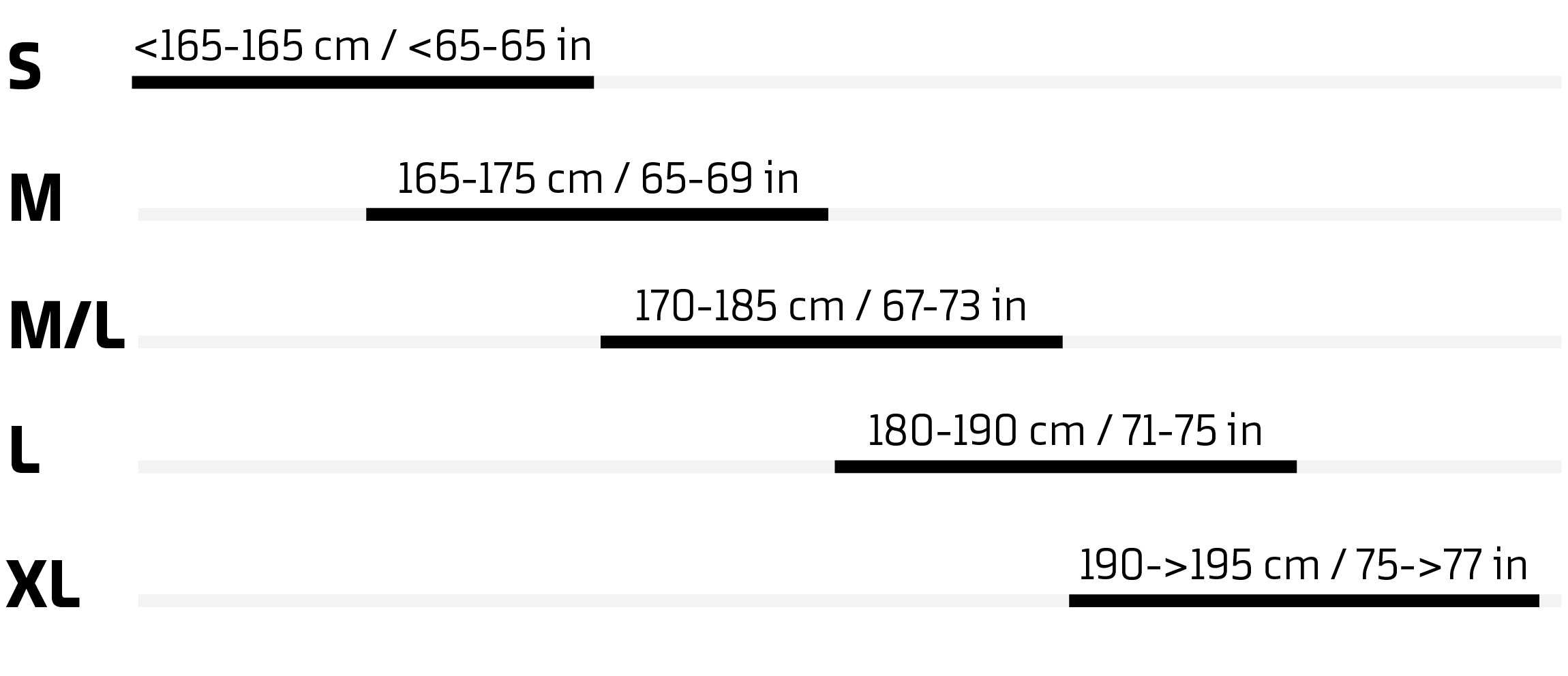

Size guide
DUSTY R

DUSTY R

GRAVEL

Bikes DUSTY RR DUSTY S 580 DUSTY S 580 FLAT
Information Components Geometry Gallery Downloads
CHECK AVAILABILITY
ALL-ROUND. ALLROUND READY FOR EVERYTHING.

The new Dusty breaks down the barriers between disciplines to create a new way of thinking about the e-bike. Dusty was born to explore gravel. The all-new Dusty is a full evolution: a second-generation platform that transcends the gravel category entirely and steps into something bigger, something we simply call “all-round”. Because that’s exactly what it is.

The new Dusty doesn't care about labels
The new Dusty doesn't care about labels

Built around an all-new Stealth Air Carbon frame and powered by the TQ HPR60 drive system, the new Dusty combines lightweight construction, seamless integration and an exceptionally natural ride feel to tackle every journey with the same confidence.


Gravel, commuting, broken roads or multi-day adventures. The new Dusty doesn't care about labels. It's built for all of it.

BUILT FROM THE INSIDE OUT

A frame designed to take you anywhere.


The new Dusty is built around an all-new Stealth Air Carbon frame, designed from the ground up to deliver the perfect balance of lightweight performance, stiffness and comfort. At just 1.710g, it integrates the entire drive system without compromising Mondraker's unmistakable design language: clean lines, seamless integration and a platform ready for any adventure.

THE MOTOR THAT GETS OUT OF THE WAY.

Natural assistance. Power when you need it.


The new TQ HPR60 drive system delivers 60Nm of torque and up to 200% assistance with an exceptionally natural riding feel. Quiet, lightweight and efficient, it disappears above 25km/h, allowing the bike to keep rolling as naturally as if it had no motor at all.

THREE MODES. ONE DUSTY FOR EVERY RIDE.

Fine-tune the assistance to match your ride.


The Dusty's three assistance modes have been specifically tuned around its Allround philosophy. From maximum efficiency for everyday riding to full power when the terrain demands it, every mode can be easily customized through the TQ E-Bike App.

EVERYTHING WHERE IT SHOULD BE


Integration taken to the next level.

A fully integrated top tube display, completely hidden cable routing, internal batteries of up to 580Wh and a 160Wh Range Extender that fits neatly into the bottle cage position. Every component has a purpose, and every detail contributes to a bike that is clean, intuitive and ready for every ride.

700x50c tires as standard.

With clearance for tires up to 50mm, the Dusty is ready to explore far beyond the asphalt. More traction, more comfort and more confidence across gravel, dirt roads, rough pavement and everything in between. Because when the terrain has no limits, neither should your adventure


  1. 700
  2. STEALTH CARBON

Components

Technical specs

  • frame

    Frame

    Dusty Stealth Air Carbon, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, Flatmount brake compatible, integrated dropout speed sensor.

    sizes

    Sizes

    S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

  • fork

    Fork

    Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

    headset

    Headset

    Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

  • stem

    Stem

    Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

    handlebar

    Handlebar

    Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

  • grips

    Grips

    Onoff HEX Bartape

    seatpost

    Seatpost

    Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

  • saddle

    Saddle

    Fizik Vento Argo X5 140mm

    front brake

    Front brake

    Sram Rival AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

  • rear brake

    Rear brake

    Sram Rival AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

    brake lever

    Brake lever

    Sram Rival, tooled reach adjust, carbon brake lever

  • rims

    Rims

    Mavic Allroad S Carbon, UST,42mm height, 25mm internal width, 24 spokes

    spokes

    Spokes

    Mavic Steel J Bent spokes

  • front hub

    Front hub

    Mavic, 12x100mm, Centerlock

    rear hub

    Rear hub

    Mavic infinity hub, 12x142mm, ID360 Ratchet system, Centerlock, XDR Freehub

  • front tire

    Front tire

    Maxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

    rear tire

    Rear tire

    Maxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

  • crankset

    Crankset

    E.13 Piedmont Core E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm

    rings

    Rings

    Sram X-Sync Eagle 42T, 107BCD, alloy, narrow-wide + E.13 Helix e.spec 107BCD alloy driver

  • chain

    Chain

    Sram GX Eagle T-Type, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle AXS T-Type,12s

  • shift levers

    Shift levers

    Sram Rival AXS HRD

    casette

    Casette

    Sram XS-1275, 10-52T, T-Type, 12s

  • others

    Others

    Sram AXS Extension Cord, *Optional external battery: TQ 160Wh

    display

    Display

    TQ HPR Display V04 Color

  • motor

    Motor

    TQ HPR-60

    battery

    Battery

    TQ HPR Battery V05 580Wh

Read more Read less

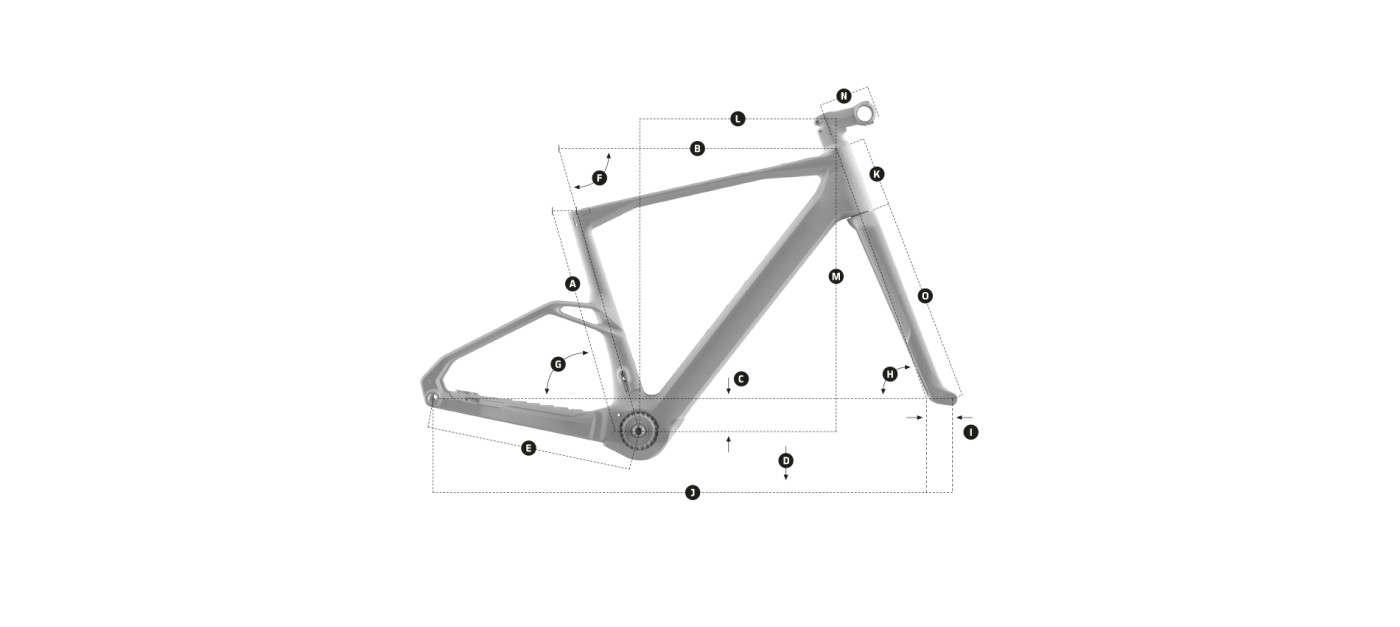

Geometry

mm / inch

Frame size
S M M/L L XL
A Seattube length 410 mm 16.14" 450 mm 17.72" 480 mm 18.90" 510 mm 20.08" 540 mm 21.26"
B Toptube length 520 mm 20.47" 550 mm 21.65" 580 mm 22.83" 600 mm 23.62" 630 mm 24.80"
C Bottom bracket drop - 70 mm 0.00" -70 mm -2.76" -70 mm -2.76" -70 mm -2.76" -70 mm -2.76"
D Bottom bracket height 292 mm 11.50" 292 mm 11.50" 292 mm 11.50" 292 mm 11.50" 292 mm 11.50"
E Chainstay length 433 mm 17.05" 433 mm 17.05" 433 mm 17.05" 433 mm 17.05" 433 mm 17.05"
F Seat tube angle 74° 74° 74° 74° 74°
G Effective seattube angle 74° 74° 74° 74° 74°
H Headtube angle 70° 70° 70° 70° 70°
I Fork Offset 45 mm 1.77" 45 mm 1.77" 45 mm 1.77" 45 mm 1.77" 45 mm 1.77"
J Wheelbase 1012 mm 39.84" 1043,8 mm 41.09" 1075,3 mm 42.33" 1097,5 mm 43.21" 1129,29 mm 44.46"
K Headtube length 100 mm 3.94" 125 mm 4.92" 145 mm 5.71" 175 mm 6.89" 200 mm 7.87"
L Reach 363 mm 14.29" 384 mm 15.12" 411 mm 16.18" 422 mm 16.61" 446 mm 17.56"
M Stack 548 mm 21.57" 572 mm 22.52" 591 mm 23.27" 619 mm 24.37" 642 mm 25.28"
N Stem Length 60 mm 2.36" 70 mm 2.76" 70 mm 2.76" 80 mm 3.15" 90 mm 3.54"
O Fork Height 425 mm 16.73" 425 mm 16.73" 425 mm 16.73" 425 mm 16.73" 425 mm 16.73"
Read more Read less
Download Materials
Spare parts Manual

MODEL DUSTY

DUSTY RR
DUSTY RR
DUSTY RR
700
TQ HPR60
580 Wh
Carbon
DUSTY RR

GRAVEL
DUSTY R
DUSTY R
DUSTY R
700
TQ HPR60
580 Wh
Carbon
DUSTY R

GRAVEL
DUSTY S 580
DUSTY S 580
DUSTY S 580
700
TQ HPR60
580 Wh
Carbon
DUSTY S 580

GRAVEL

Because not every ride needs drop bars.

The Flat Bar models deliver a more upright and confident riding position without sacrificing the Dusty's character. A flat handlebar and dropper seatpost provide extra control on technical descents while adding comfort and confidence to everyday riding, creating a bike that's just as capable in the city as it is beyond it.

DUSTY S 580 FLAT
DUSTY S 580 FLAT
DUSTY S 580 FLAT
700
TQ HPR60
580 Wh
Carbon
DUSTY S 580 FLAT

GRAVEL
