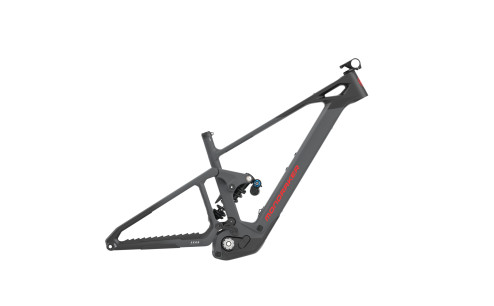

DUNE RR FRAMESET

Components

Technical specs

Frame

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Display

Kiox 400C / Bosch Mini Remote
Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh

	Frame size	S	M	L	XL
A	Seattube length	380mm 14.96"	420mm 16.54"	450mm 17.72"	490mm 19.29"
B	Toptube length	600mm 23.62"	620mm 24.41"	645mm 25.39"	665mm 26.18"
C	Bottom bracket drop	-21/0mm -0.83"	-21/0mm -0.83"	-21/0mm -0.83"	-21/0mm -0.83"
D	Bottom bracket height	352mm 13.86"	352mm 13.86"	352mm 13.86"	352mm 13.86"
E	Chainstay length	445mm 17.52"	445 mm 17.52"	445mm 17.52"	445mm 17.52"
F	Seat tube angle	74,0º	74,0º	74,0º	74,0º
G	Effective seattube angle	77,5°	77,5°	77,5°	77,5°
H	Headtube angle	64º	64º	64º	64º
I	Fork Offset	44mm 1.73"	44mm 1.73"	44mm 1.73"	44mm 1.73"
J	Wheelbase	1232mm 48.50"	1256mm 49.45"	1285mm 50.59"	1309mm 51.54"
K	Headtube length	100mm 3.94"	110mm 4.33"	130mm 5.12"	140mm 5.51"
L	Reach	445mm 17.52"	465mm 18.31"	485mm 19.09"	505mm 19.88"
M	Stack	621mm 24.45"	630mm 24.80"	648mm 25.51"	658mm 25.91"
