CRAFTY CARBON UNLIMITED ICON

A limited and exclusive edition to celebrate the 10th anniversary of our most iconic bike.

It is rare for a bike to transcend its role as simply a bike and become something much greater. A symbol. A way of understanding e-mtb. An icon.

Crafty was born ten years ago, coinciding with the arrival of the first generation of the Bosch Performance Line CX: the first motor created specifically for e-mtb. It was then that we saw the opportunity to develop an electric bike designed from its core for mountain biking, our specialty.

Composants

Caractéristiques techniques

Cadre

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Tailles

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Amortisseur arrière

Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Réglages l'amortisseur

C20 compression, R40 rebound. Spring rate: S size 411 lbs, M size 457 lbs, size ML 502 lbs, L size 548 lbs, XL size 605 lbs
Fourche

Öhlins RXF 38 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Jeu de direction

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Potence

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Cintre

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Poignées

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Tige de selle

RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Selle

Fizik Vento Argo 00 Carbon 150mm

Frein avant

Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor
Frein arrière

Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor

Levier de frein

Trickstuff Maxima, 7075 T6 CNC alloy, lever pivot bearings, tools-free reach adjust, Kevlar hose
Jantes

DT Swiss HXC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes

Rayons

DT complite® Hybrid t-head
Moyeu avant

DT 180, Boost 15x110mm, IS 6 bolts

Moyeu arrière

DT 180, Boost 12x148mm, Ratchet EXP OS 42 system, IS 6 bolts, XD freehub
Pneu avant

Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 600TPI, folding bead

Pneu arrière

Maxxis Minion DHR II 29x2.5 tubeless ready, 3C Maxx Terra, EXO+ Protection, 60TPI, folding bead
Manivelle

E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm

Plateaux

Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chaîne

Sram XX Eagle T-Type, 12s, Powerlock

Dérailleur avant

Sram XX Eagle AXS, T-Type, 12s
Dérailleur arrière

Sram Eagle AXS Pod Rocker, 12s

Cassette

Sram XS-1295, 10-52T, T-Type, 12s
écran

Kiox 400 / Bosch Mini Remote

Moteur

Bosch Performance Line CX-R(25Km/h) SMART SYSTEM (BDU386Y)
Batterie

Bosch Powertube 800Wh

Voir plus Voir moins

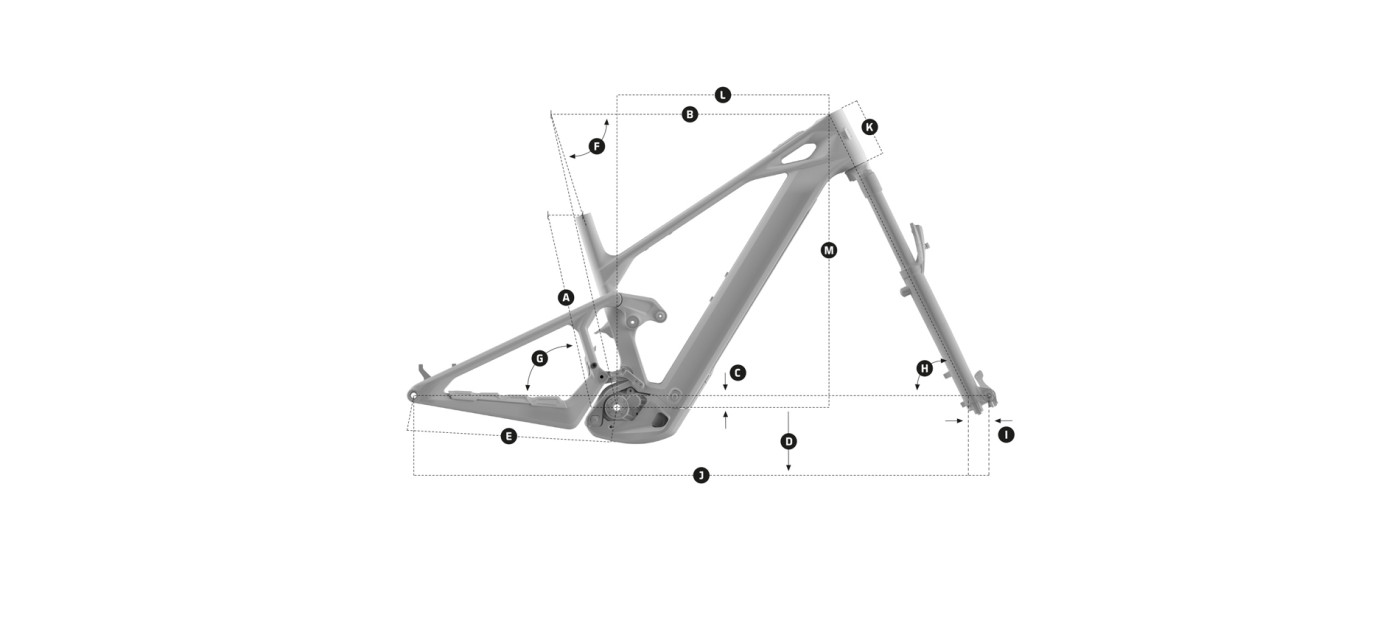

	Taille du cadre	S [Std/Low]	M [Std/Low]	M/L [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Longueur du tube de selle	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Longueur du tube supérieur	581 mm/582 mm 22.87"	596 mm/597 mm 23.46"	618 mm/619 mm 24.33"	640 mm/641 mm 25.20"	662 mm/663 mm 26.06"
C	Axe de pédalier	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"
D	Hauteur de pédalier	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"
E	Longueur de la chaîne	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	465 mm/466 mm 18.31"	465 mm/466 mm 18.31"
F	Angle de tube de selle	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°
G	Angle de tube de selle effectif	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°
H	Angle du tube de direction	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°
I	Déport de fourche	44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"
J	Empattement	1240 mm/1241 mm 48.82"	1255 mm/1256 mm 49.41"	1280 mm/1281 mm 50.39"	1314 mm/1315 mm 51.73"	1338 mm/1339 mm 52.68"
K	Longueur du tube de direction	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	445 mm/441 mm 17.52"	460 mm/456 mm 18.11"	480 mm/476 mm 18.90"	500 mm/496 mm 19.69"	520 mm/516 mm 20.47"
M	Stack	638 mm/641 mm 25.12"	638 mm/641 mm 25.12"	647 mm/650 mm 25.47"	656 mm/659 mm 25.83"	665 mm/668 mm 26.18"

Taille du cadre

S [Std/Low]

M [Std/Low]

M/L [Std/Low]

L [Std/Low]

XL [Std/Low]

Longueur du tube de selle

380 mm

410 mm

435 mm

460 mm

490 mm

Longueur du tube supérieur

581 mm/582 mm

596 mm/597 mm

618 mm/619 mm

640 mm/641 mm

662 mm/663 mm

Axe de pédalier

-25 mm/-30 mm

Hauteur de pédalier

350 mm/345 mm

Longueur de la chaîne

455 mm/456 mm

465 mm/466 mm

Angle de tube de selle

73°/72.65°

Angle de tube de selle effectif

77.95°/77.6°

Angle du tube de direction

64.5°/64.15°

Déport de fourche

44 mm

44 mm/44 mm

44 mm

44 mm/44 mm

Empattement

1240 mm/1241 mm

1255 mm/1256 mm

1280 mm/1281 mm

1314 mm/1315 mm

1338 mm/1339 mm

Longueur du tube de direction

120 mm

130 mm

140 mm

150 mm

Reach

445 mm/441 mm

460 mm/456 mm

480 mm/476 mm

500 mm/496 mm

520 mm/516 mm

Stack

638 mm/641 mm

647 mm/650 mm

656 mm/659 mm

665 mm/668 mm

CRAFTY CARBON UNLIMITED ICON

ENDURO

A limited and exclusive edition to celebrate the 10th anniversary of our most iconic bike.

CRAFTY UNLIMITED ICON 10TH ANNIVERSARY

TEN YEARS OF MONDRAKER’S MOST ICONIC E-BIKE

The bike for everything. Now, with more power than ever.

Caractéristiques techniques

Géométrie

Trouver votre magasin

CRAFTY CARBON UNLIMITED ICON

ENDURO

A limited and exclusive edition to celebrate the 10th anniversary of our most iconic bike.

CRAFTY UNLIMITED ICON 10TH ANNIVERSARY

TEN YEARS OF MONDRAKER’S MOST ICONIC E-BIKE

The bike for everything. Now, with more power than ever.

Caractéristiques techniques

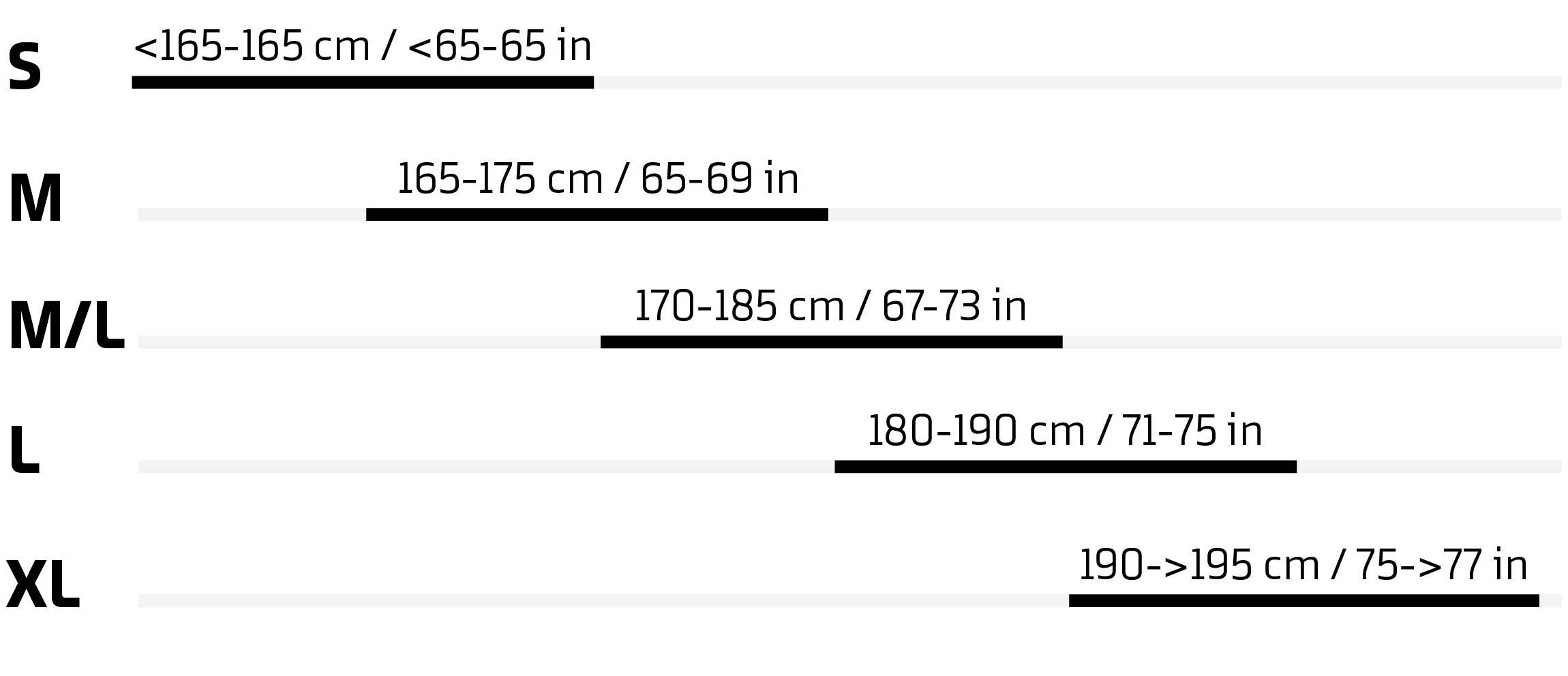

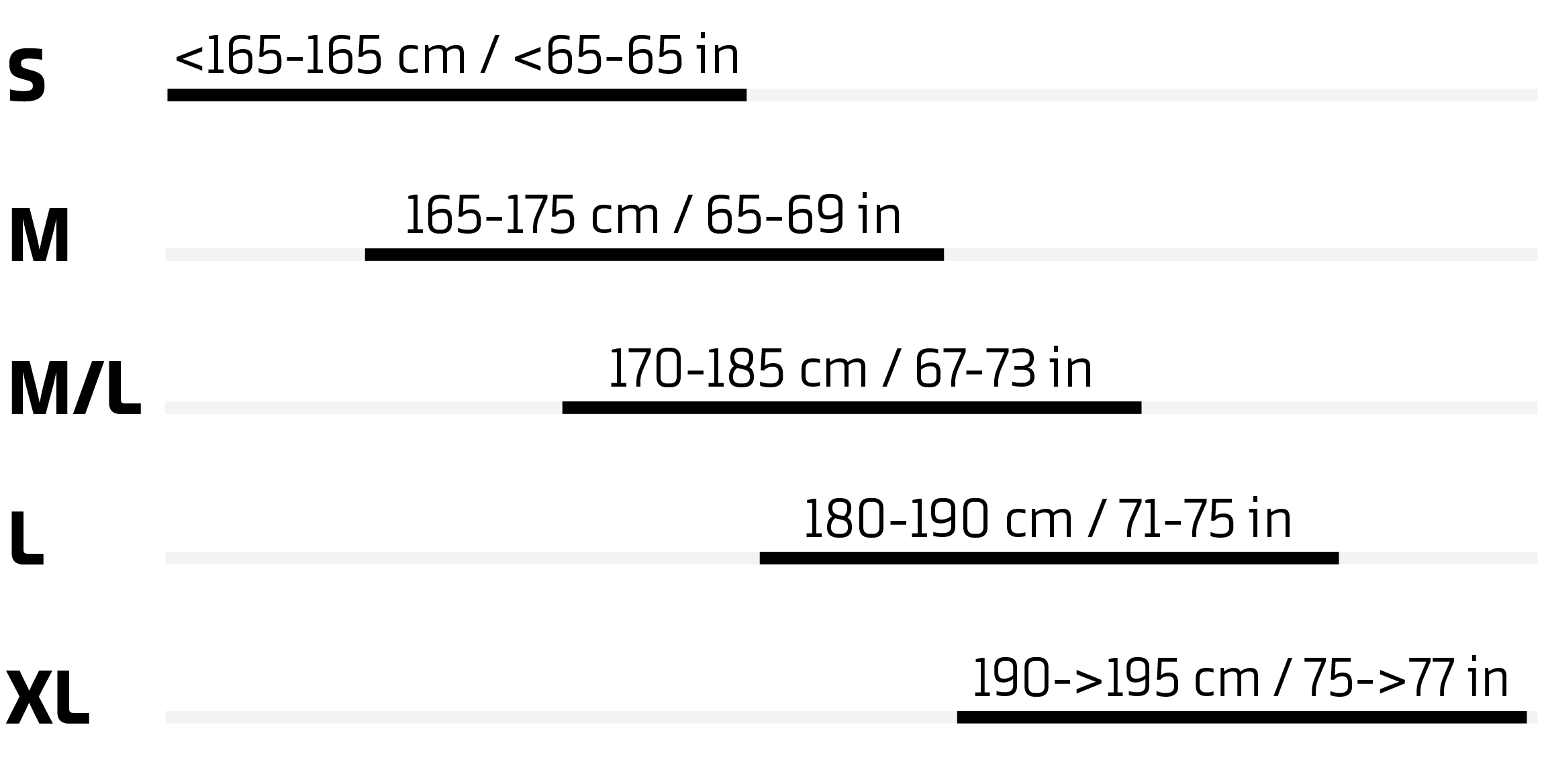

Guide des tailles
