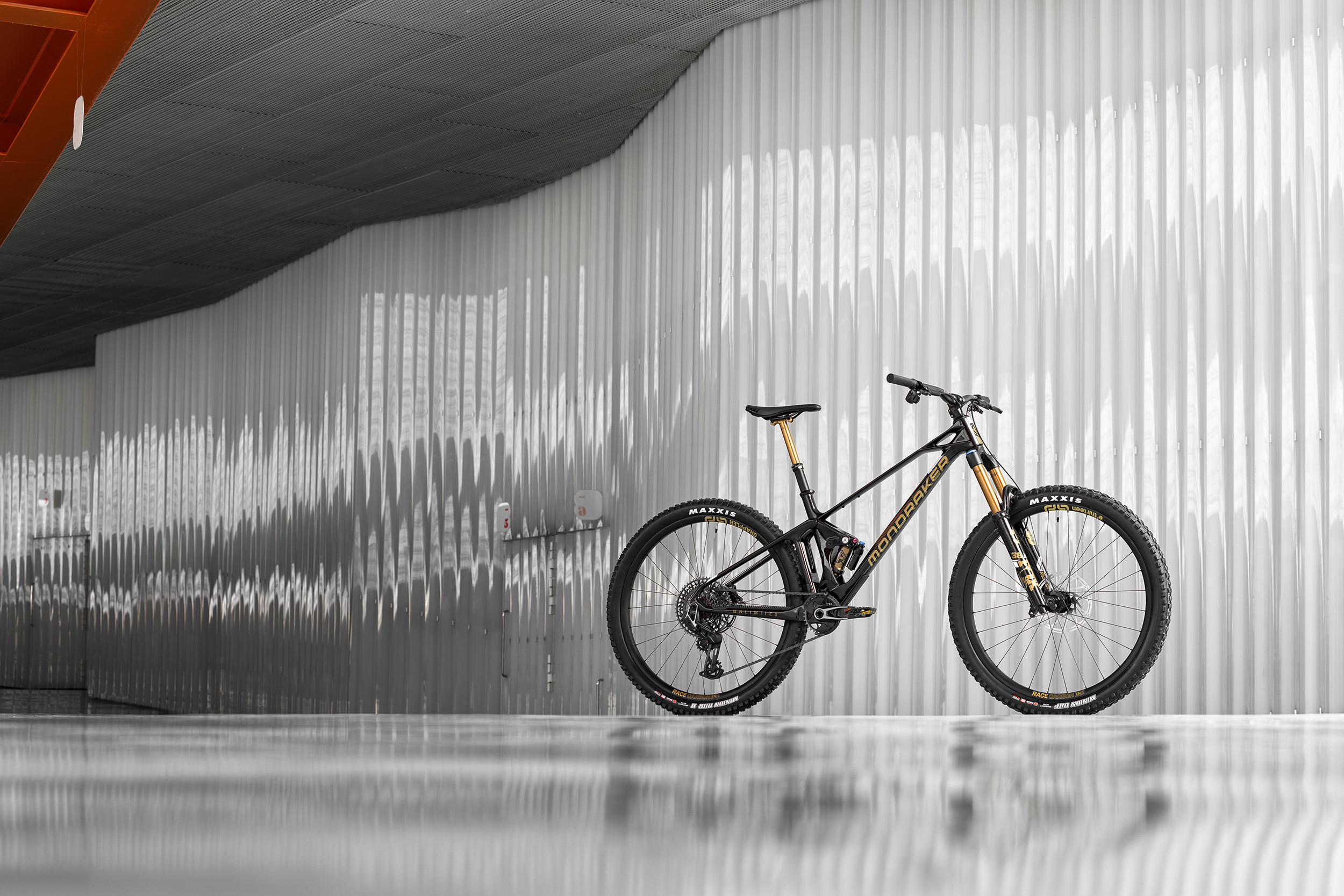

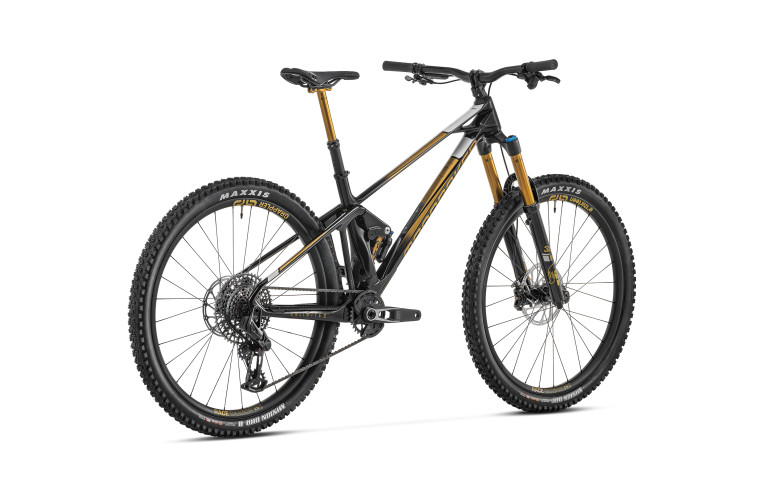

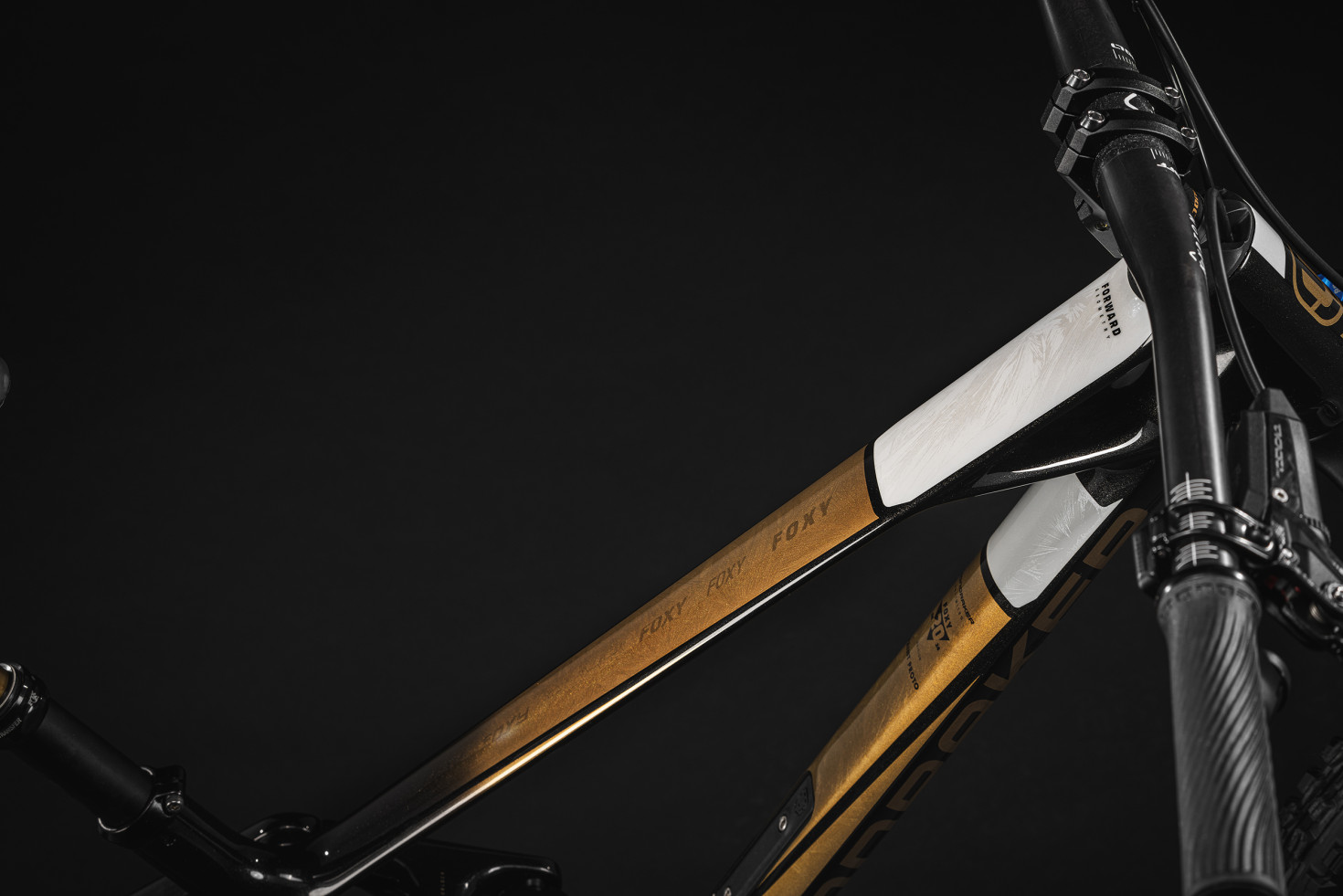

Frame

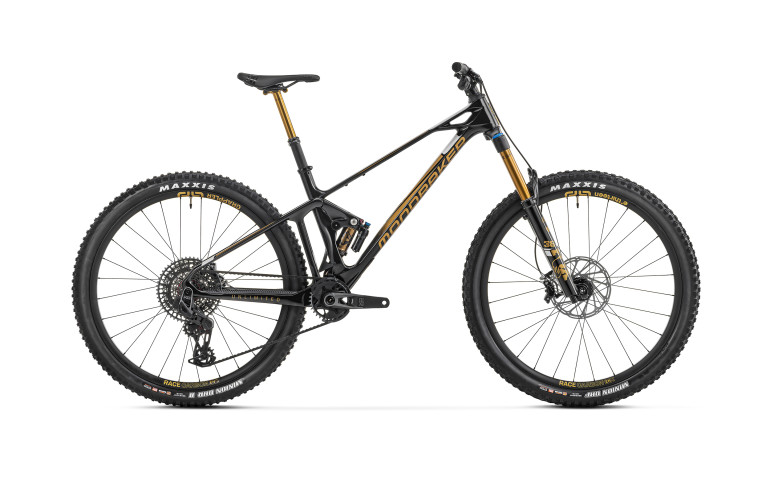

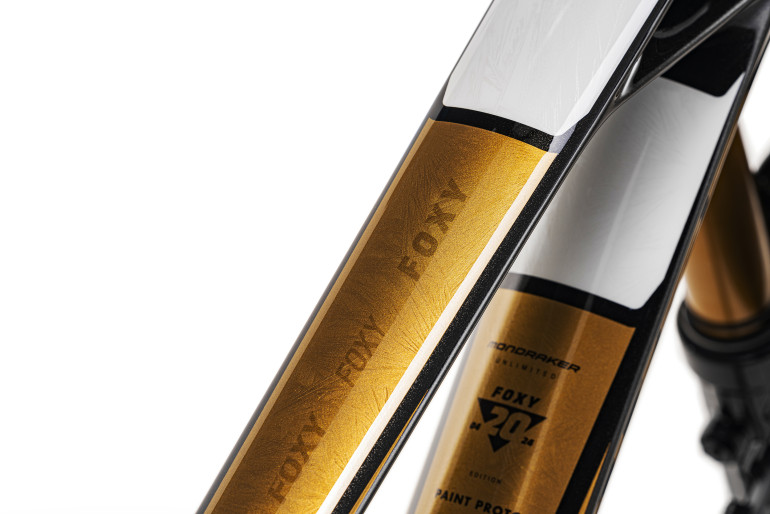

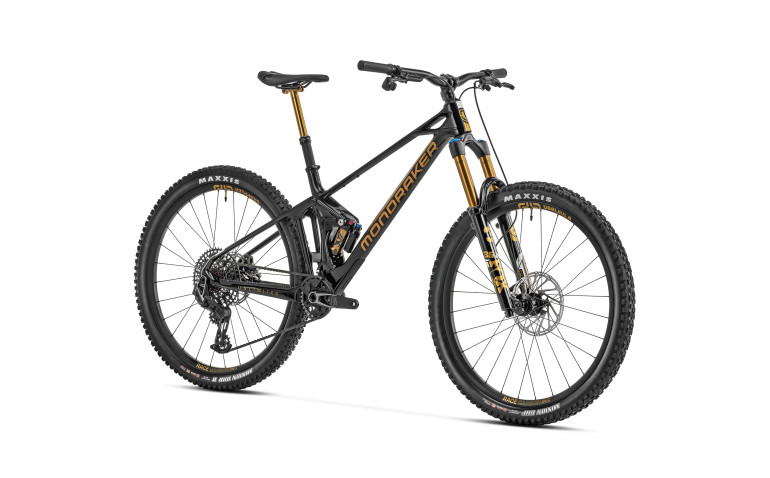

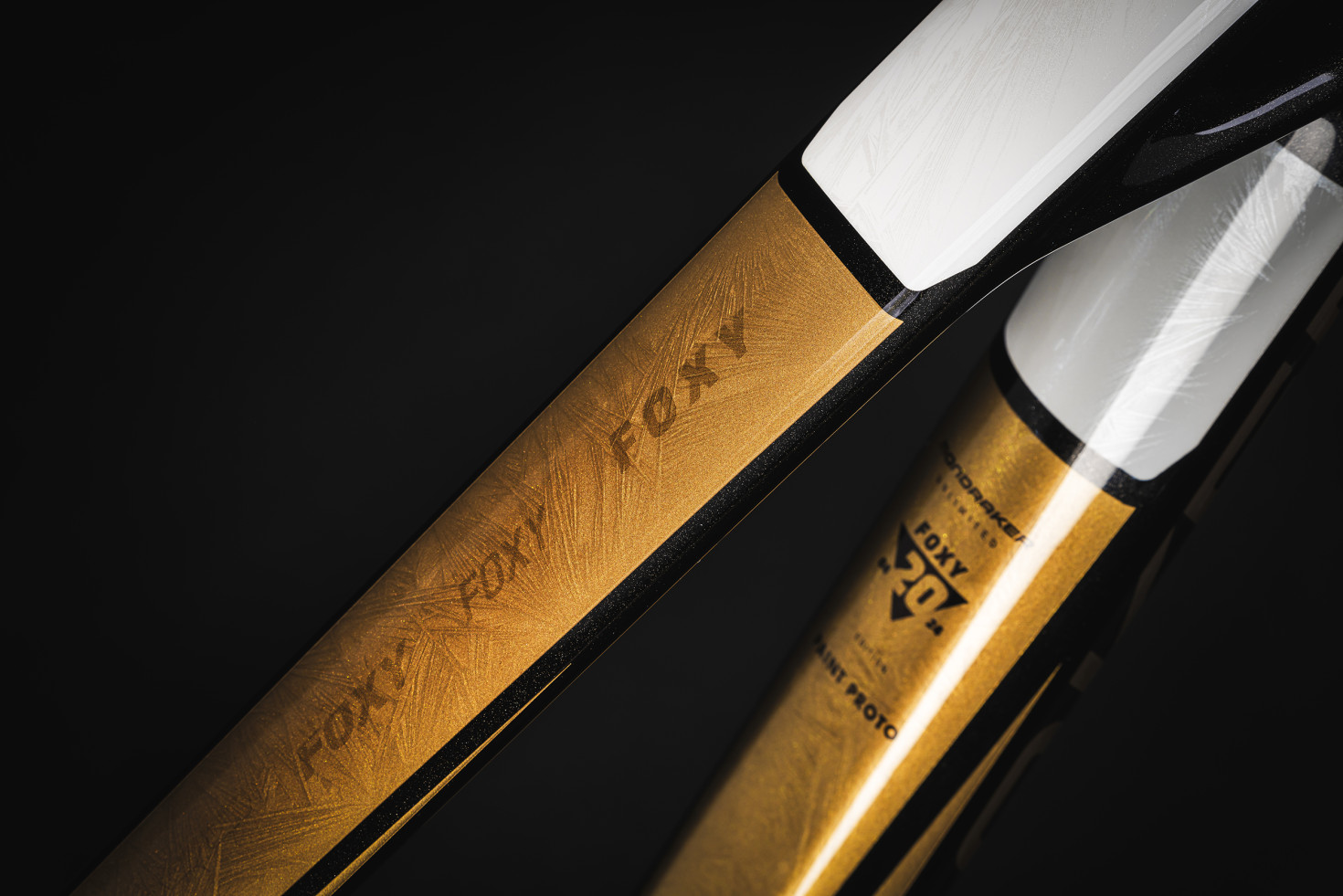

FOXY 20TH anniversary custom paint Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

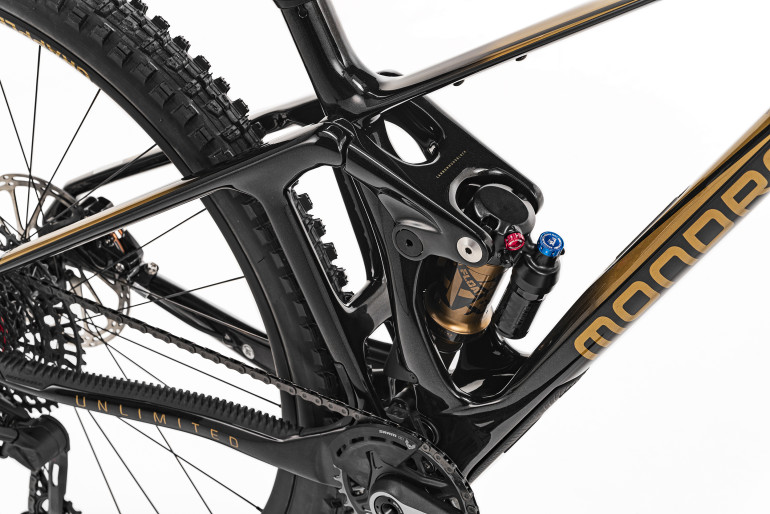

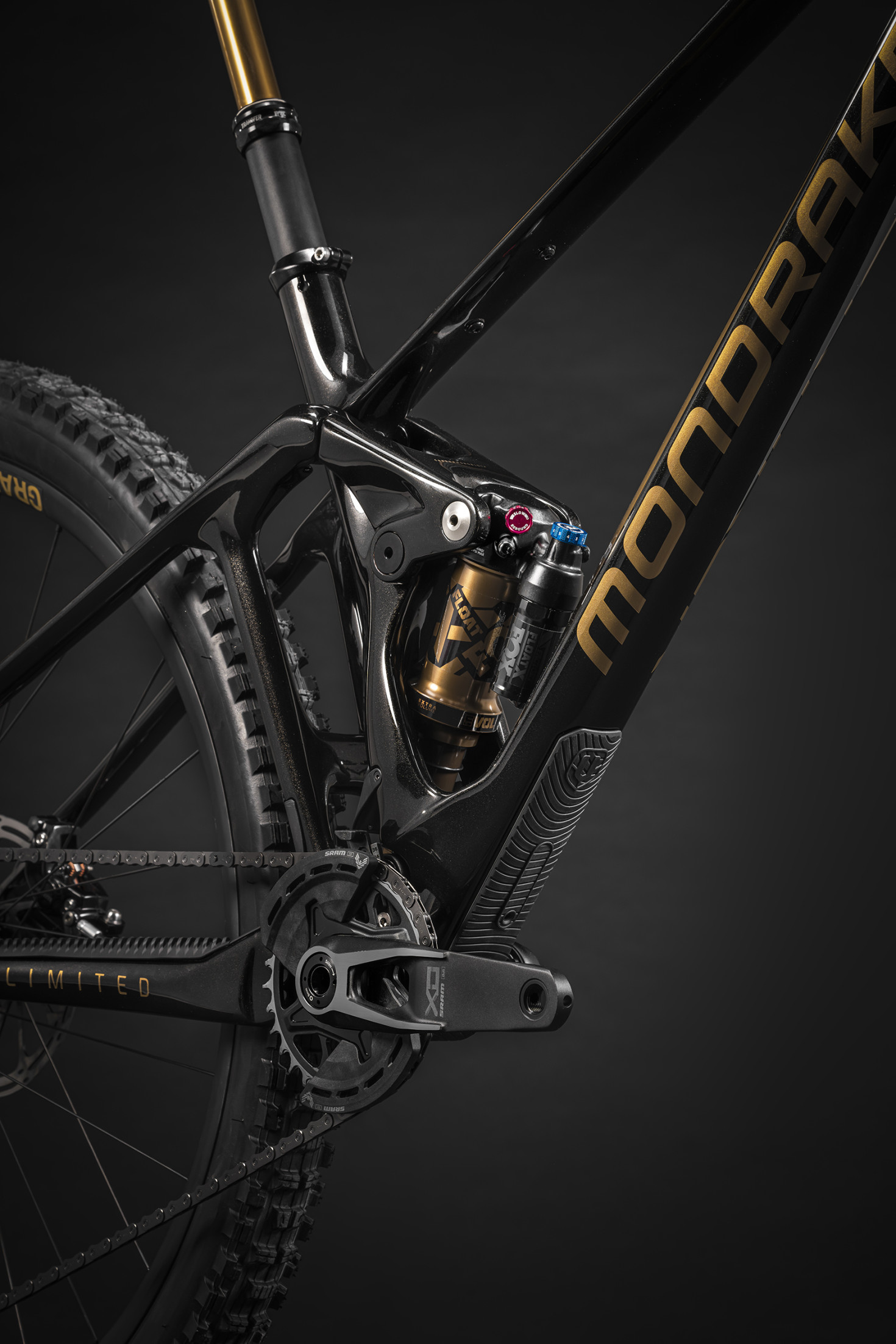

Rear shock

Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

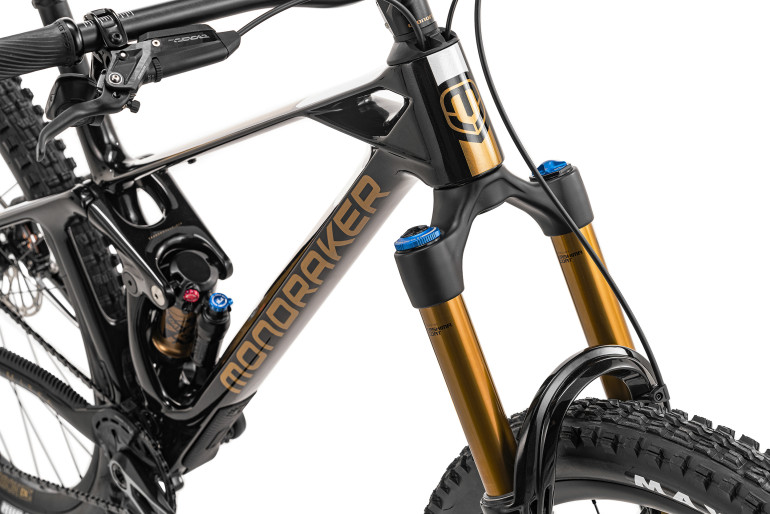

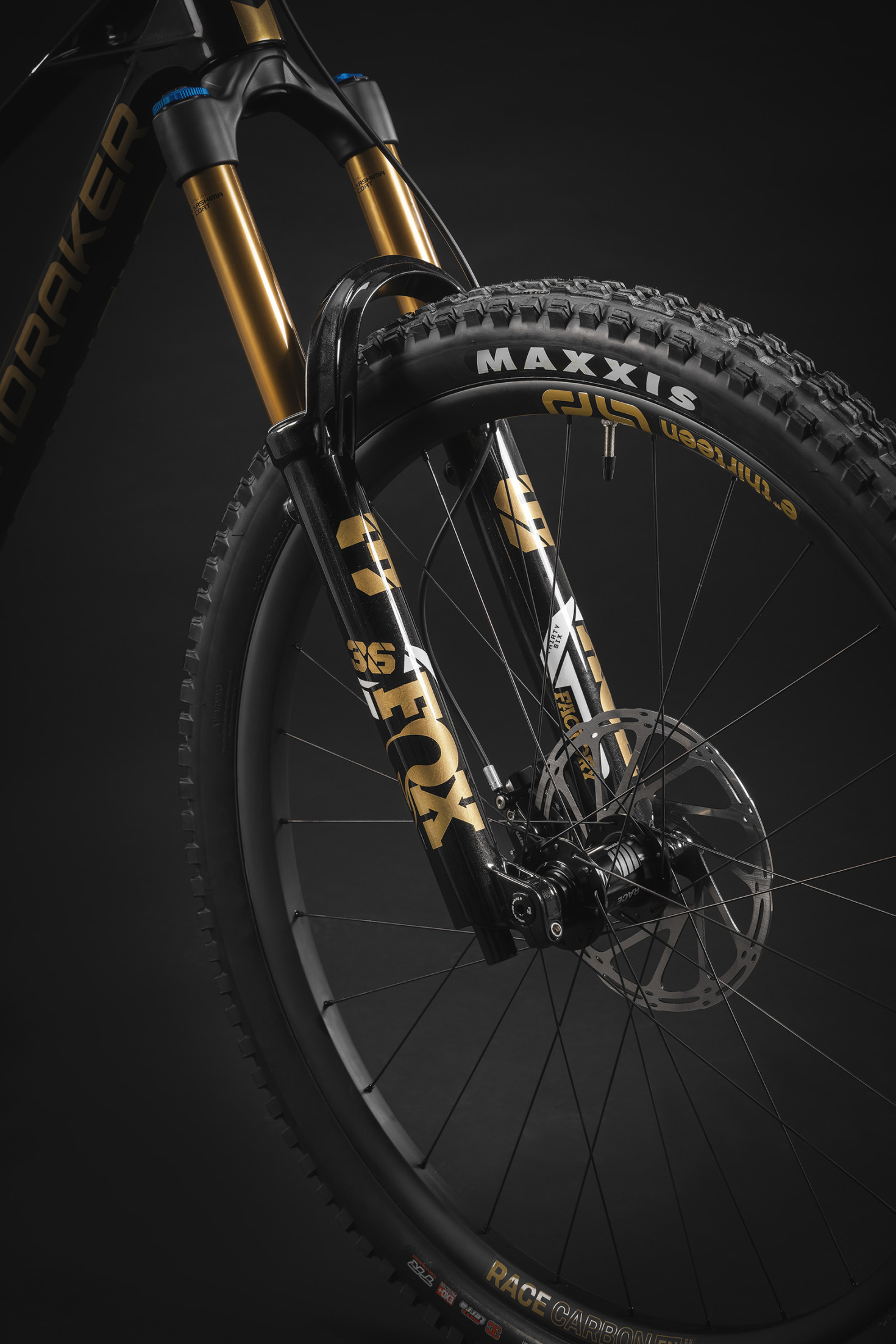

Fork

FOXY 20TH anniversary custom paint Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

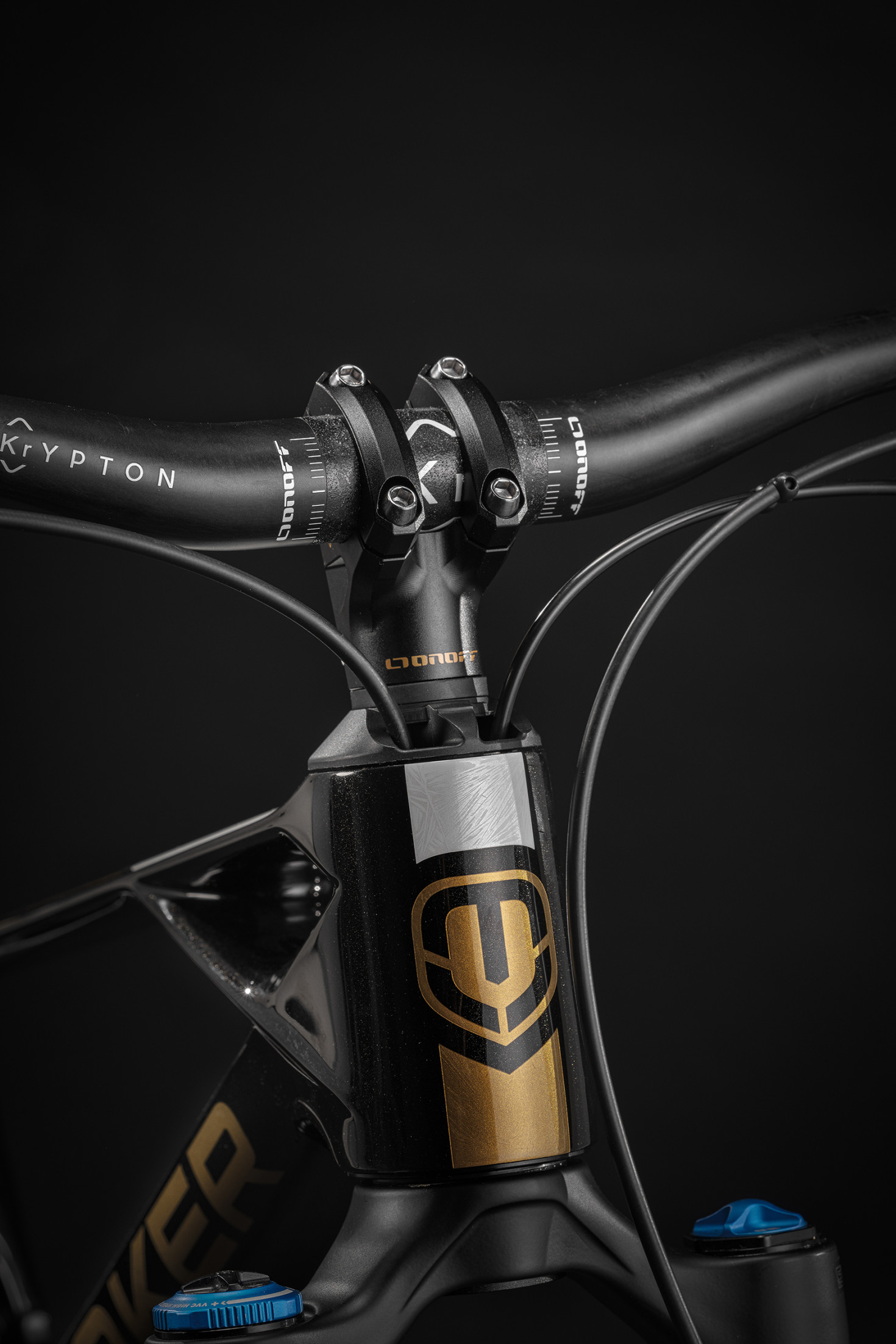

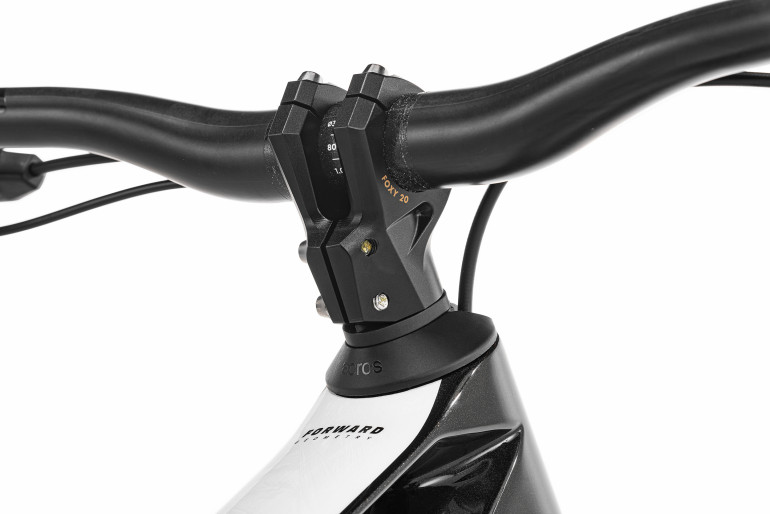

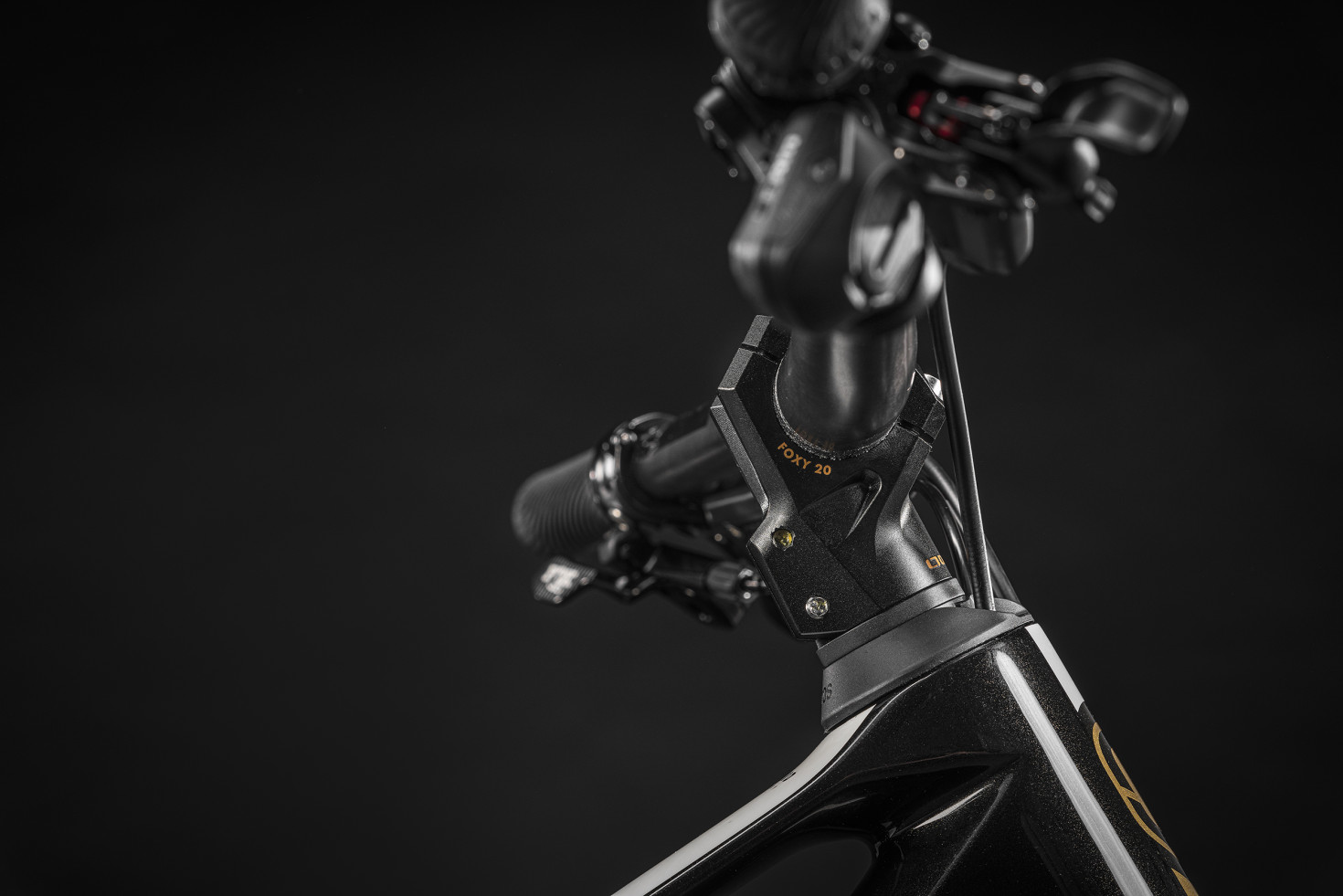

Stem

Onoff Krypton FG 10mm, CNC, 31.8mm barbore

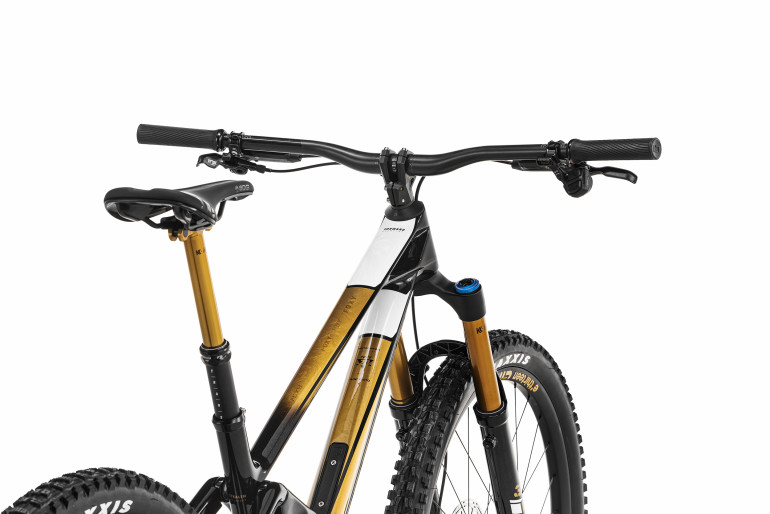

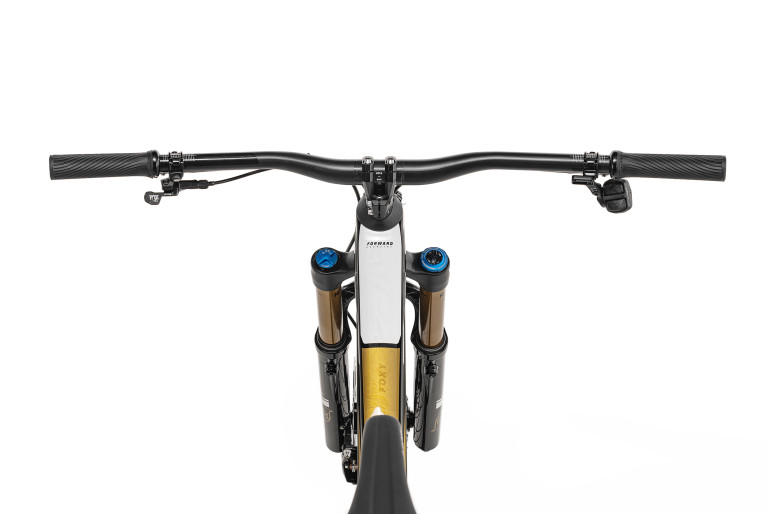

Handlebar

Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm

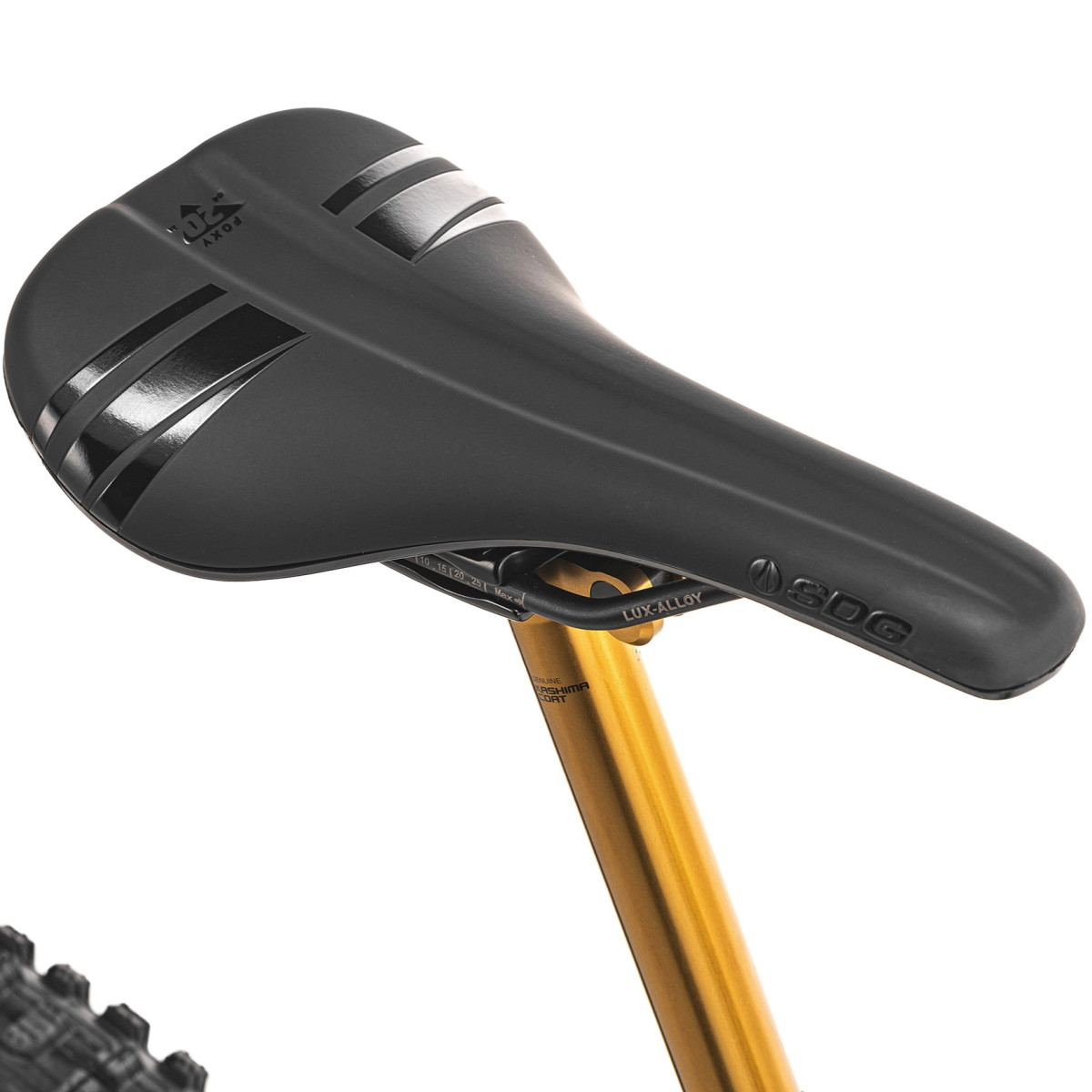

Saddle

SDG BEL-AIR 3.0 FOXY 20TH anniversary custom desing, LPU foam, steel rails

Front brake

Sram Code Silver Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram Code Silver Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

Rims

e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

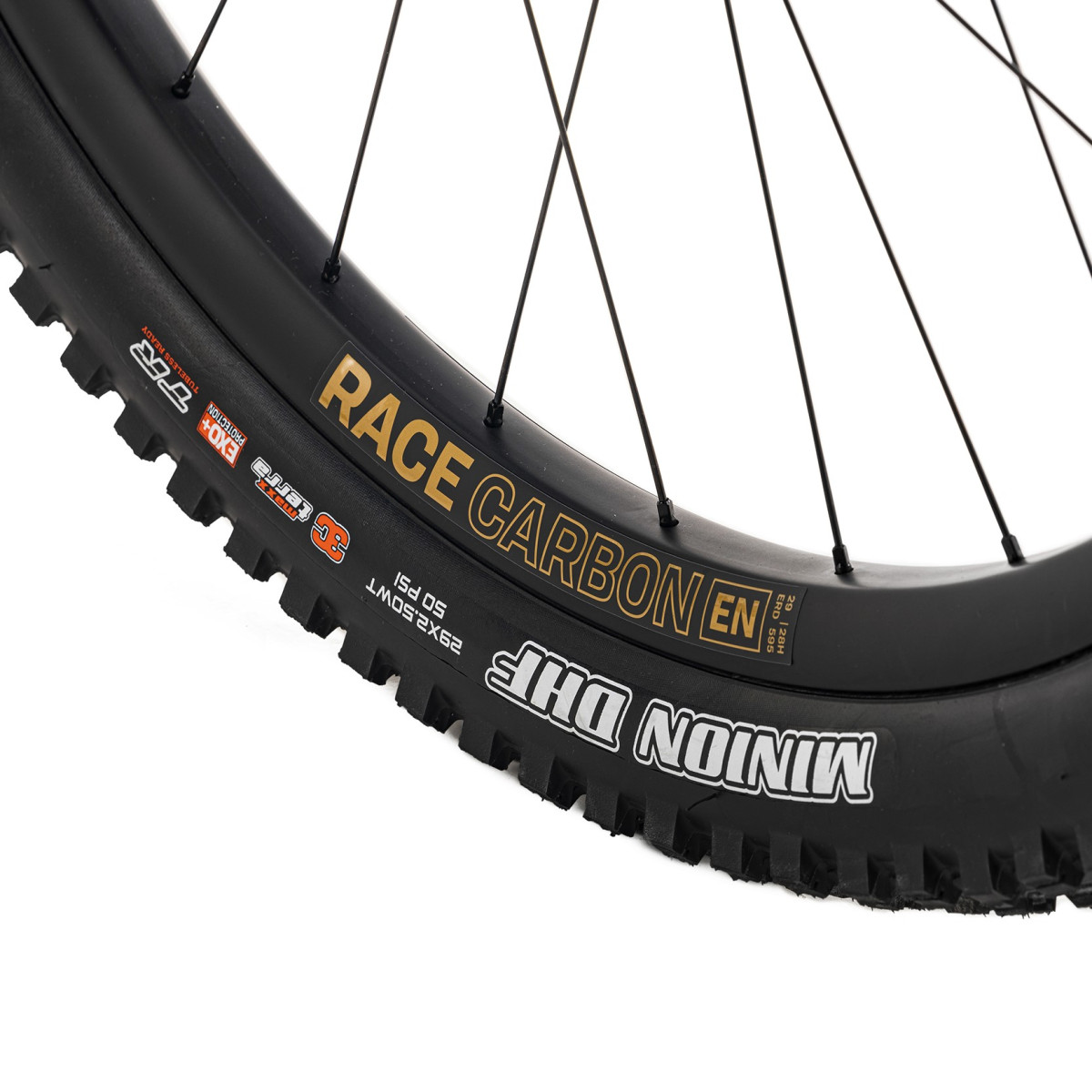

Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

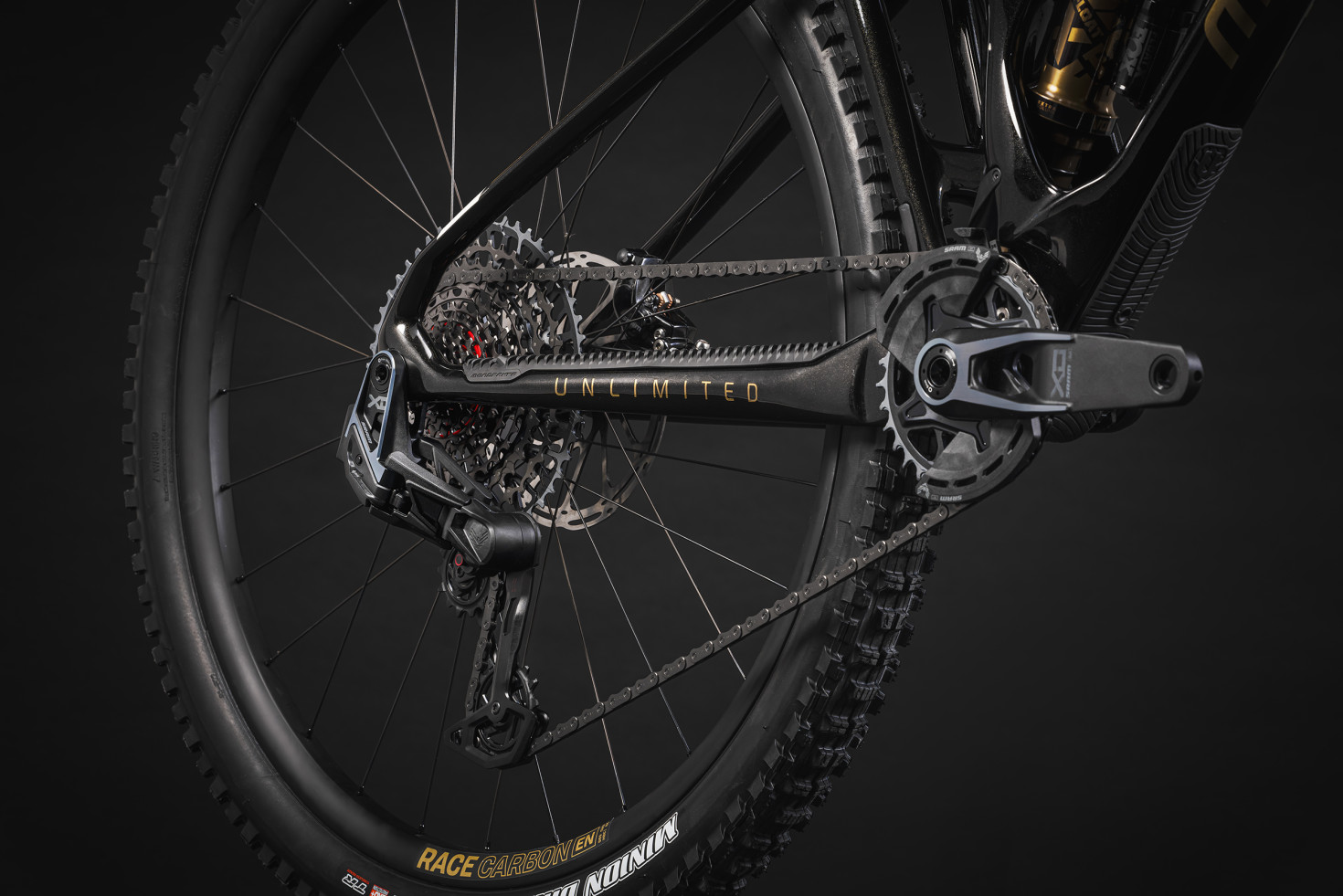

Crankset

Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm CL 55

Rings

32T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, wide

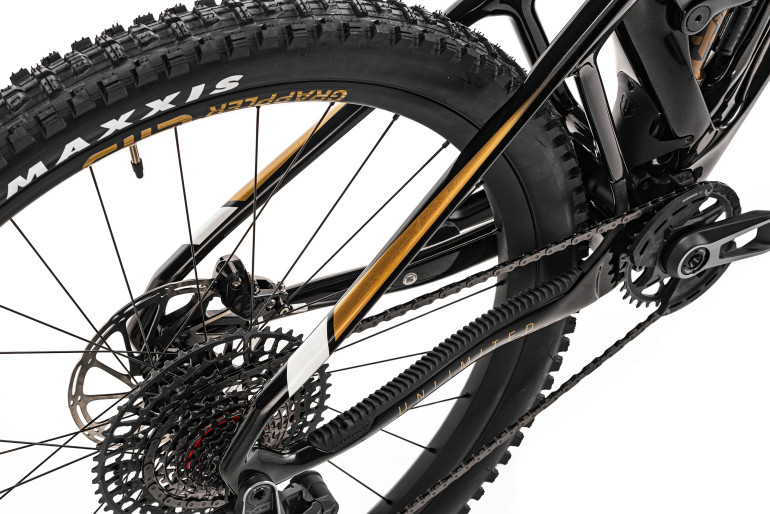

Chain

Sram X0 Eagle T-Type, 12s, Powerlock

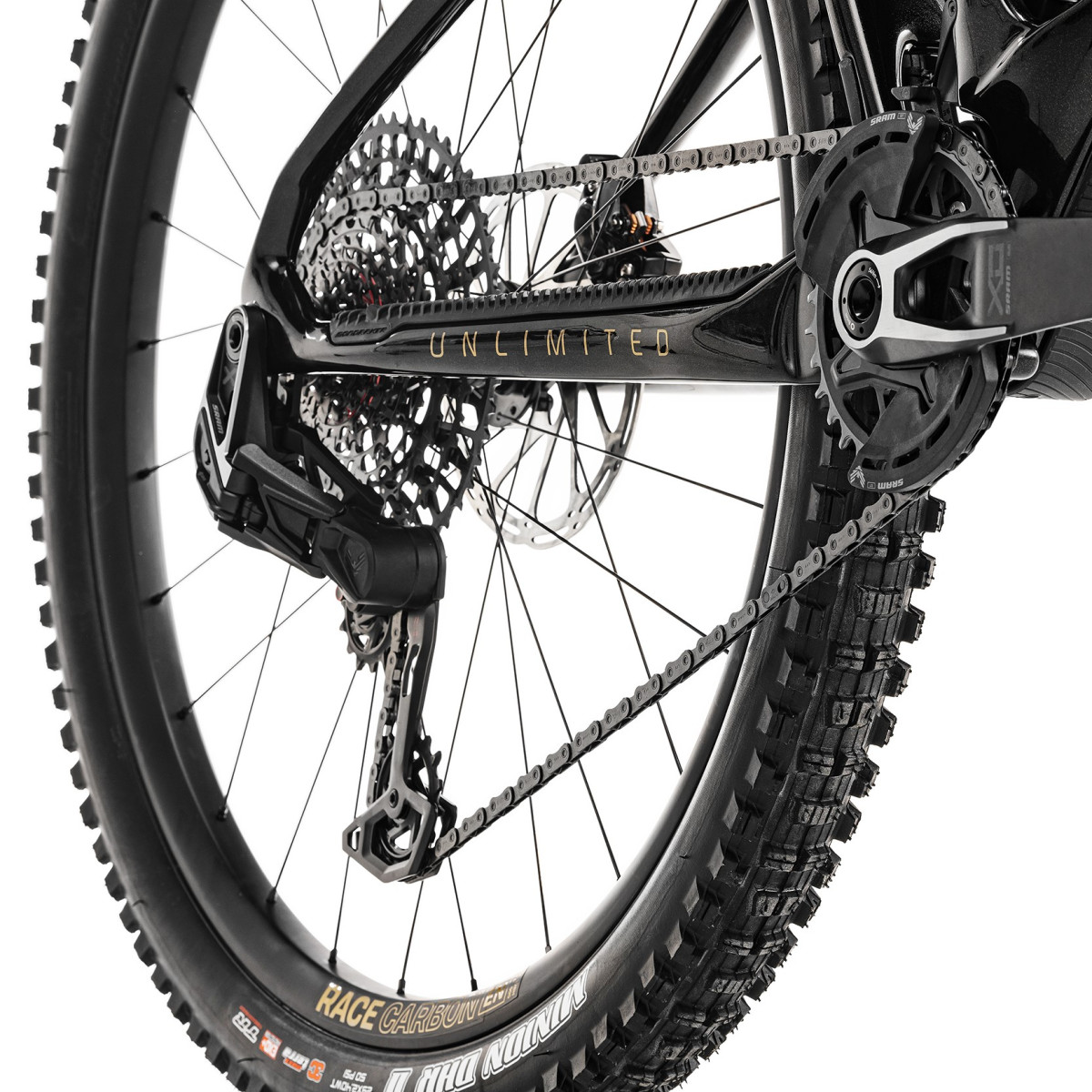

Rear derrailleur

Sram X0 Eagle AXS T-Type, 1x12s

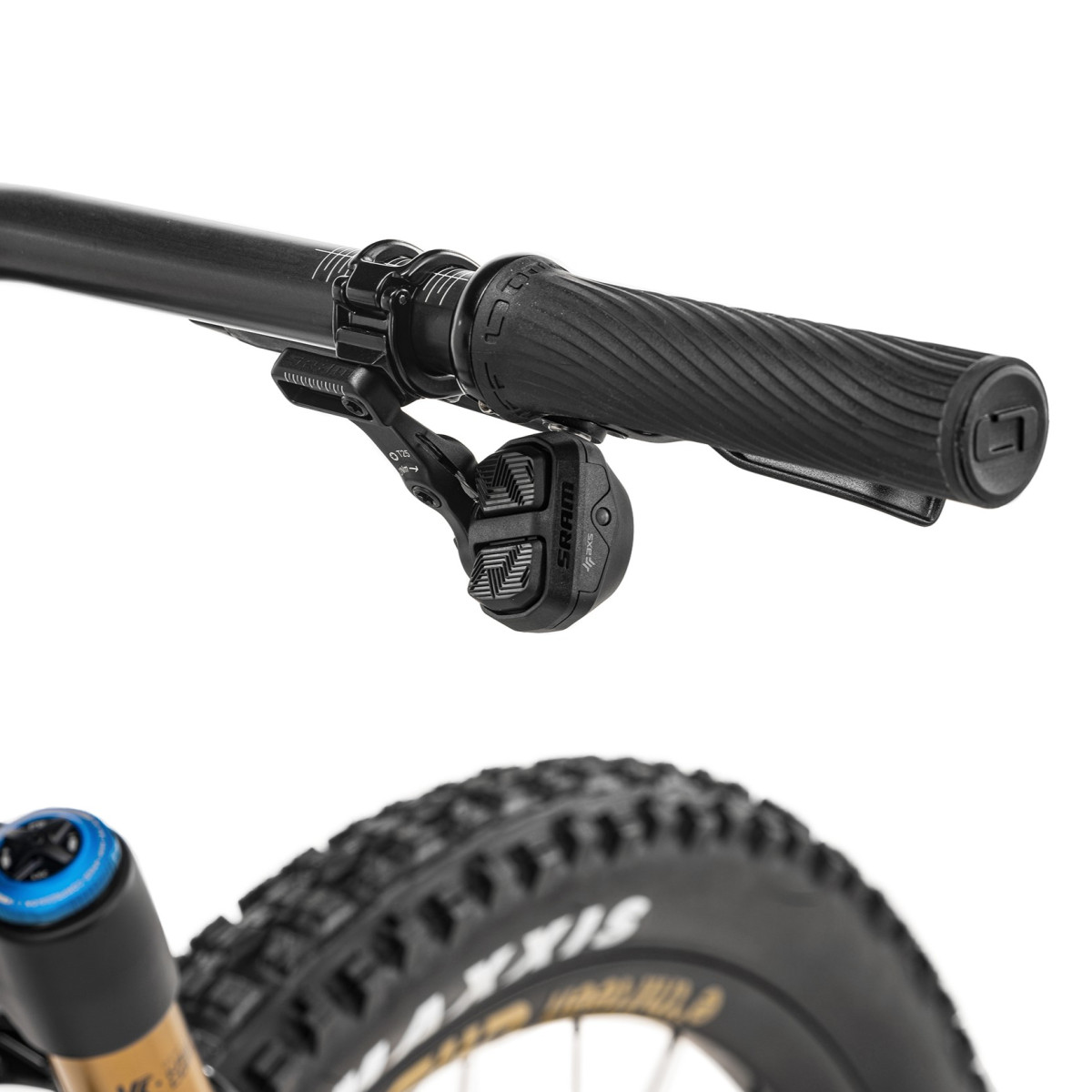

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1297, 10-52T, T-Type 12s

Others

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Weight

30,6 lbs
