Frame

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

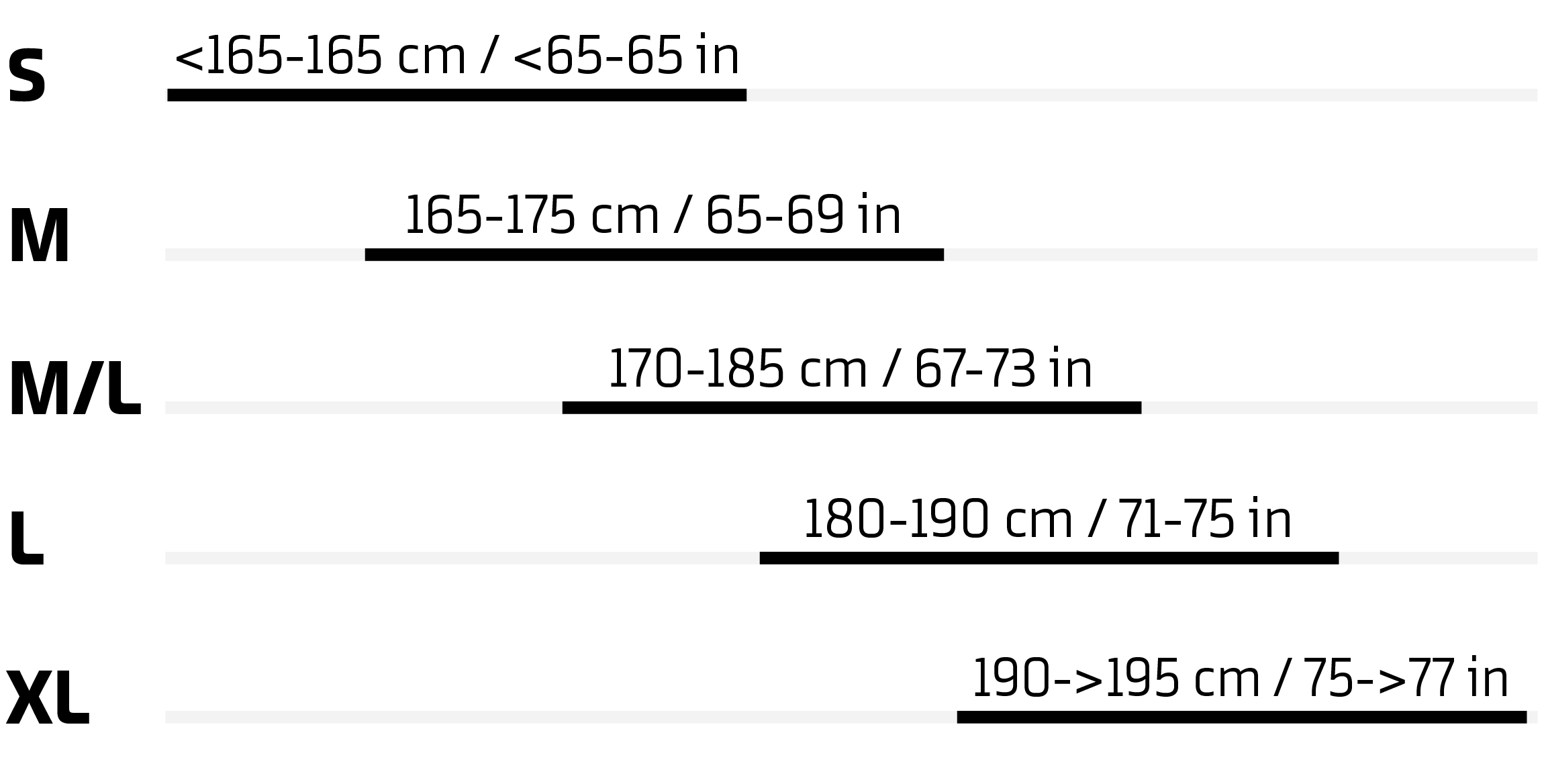

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate:S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs

Fork

Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm

Saddle

Ergon SM-10

Front brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Rims

e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen Sapim D-light / Brass

Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset

E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm

Rings

Sram XX Eagle 34T T-Type, direct mount, steel, CL55

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s

Weight

53,8 lbs

Display

Kiox 400C / Bosch Mini Remote

Motor

Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)

Battery

Bosch Powertube 800Wh
